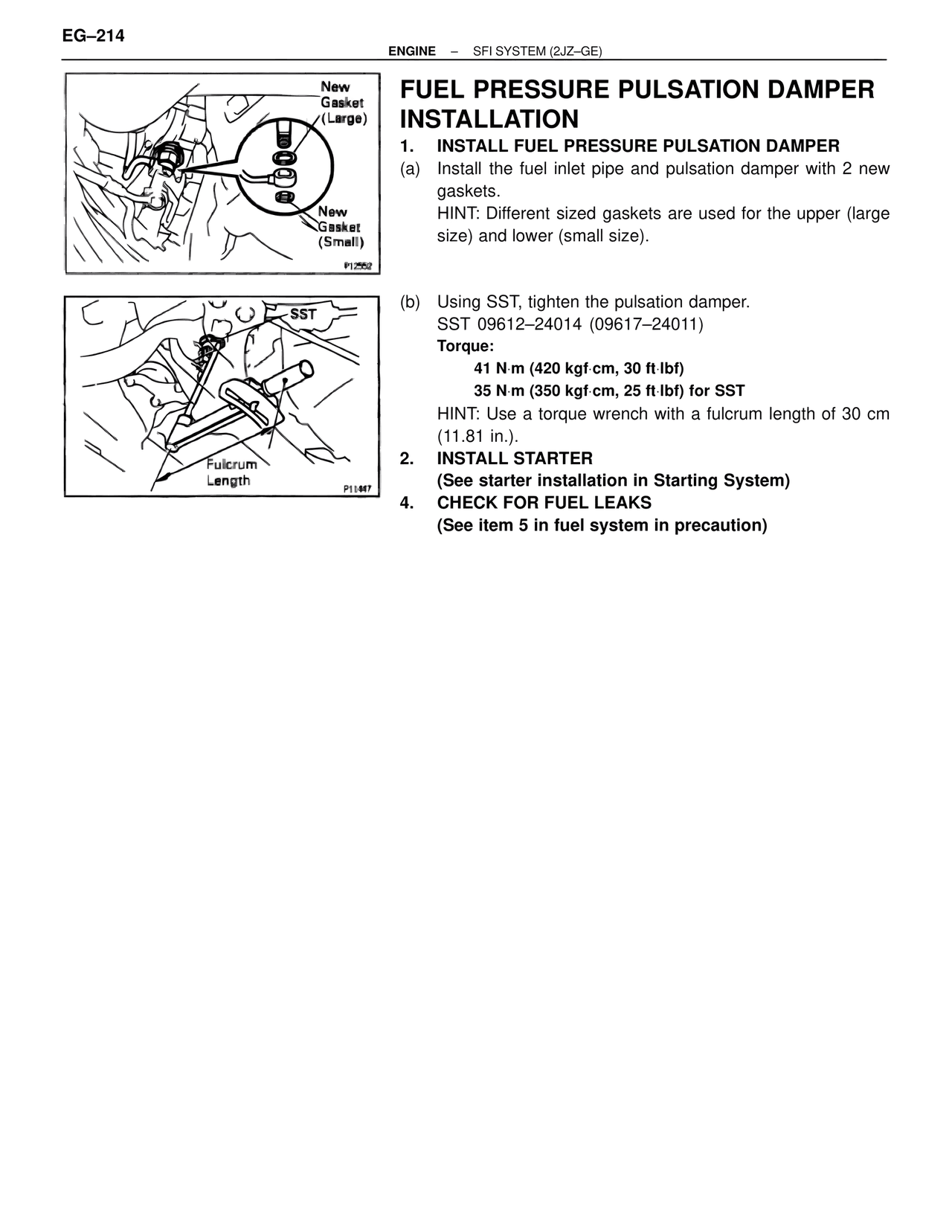

EG–214 ENGINE – SFI SYSTEM (2JZ–GE) New Gasket (Large) New Gasket (Small) P12562 SST Fulcrum Length P11447 FUEL PRESSURE PULSATION DAMPER INSTALLATION 1. INSTALL FUEL PRESSURE PULSATION DAMPER (a) Install the fuel inlet pipe and pulsation damper with 2 new gaskets. HINT: Different sized gaskets are used for the upper (large size) and lower (small size). (b) Using SST, tighten the pulsation damper. SST 09612–24014 (09617–24011) Torque: 41 N·m (420 kgf·cm, 30 ft·lbf) 35 N·m (350 kgf·cm, 25 ft·lbf) for SST HINT: Use a torque wrench with a fulcrum length of 30 cm (11.81 in.). 2. INSTALL STARTER (See starter installation in Starting System) 4. CHECK FOR FUEL LEAKS (See item 5 in fuel system in precaution)
