EG-213
ENGINE — SFI SYSTEM (2JZ-GE)

Torque: 64 N·m (650 kgf·cm, 47 ft·lbf)
13. California only:
    INSTALL VSV FOR FUEL PRESSURE CONTROL
14. INSTALL INTAKE AIR CONNECTOR PIPE
15. CONNECT CONTROL CABLES TO THROTTLE BODY
16. FILL WITH ENGINE COOLANT
17. CHECK FOR FUEL LEAKS
    (See item 5 in fuel system in precaution)

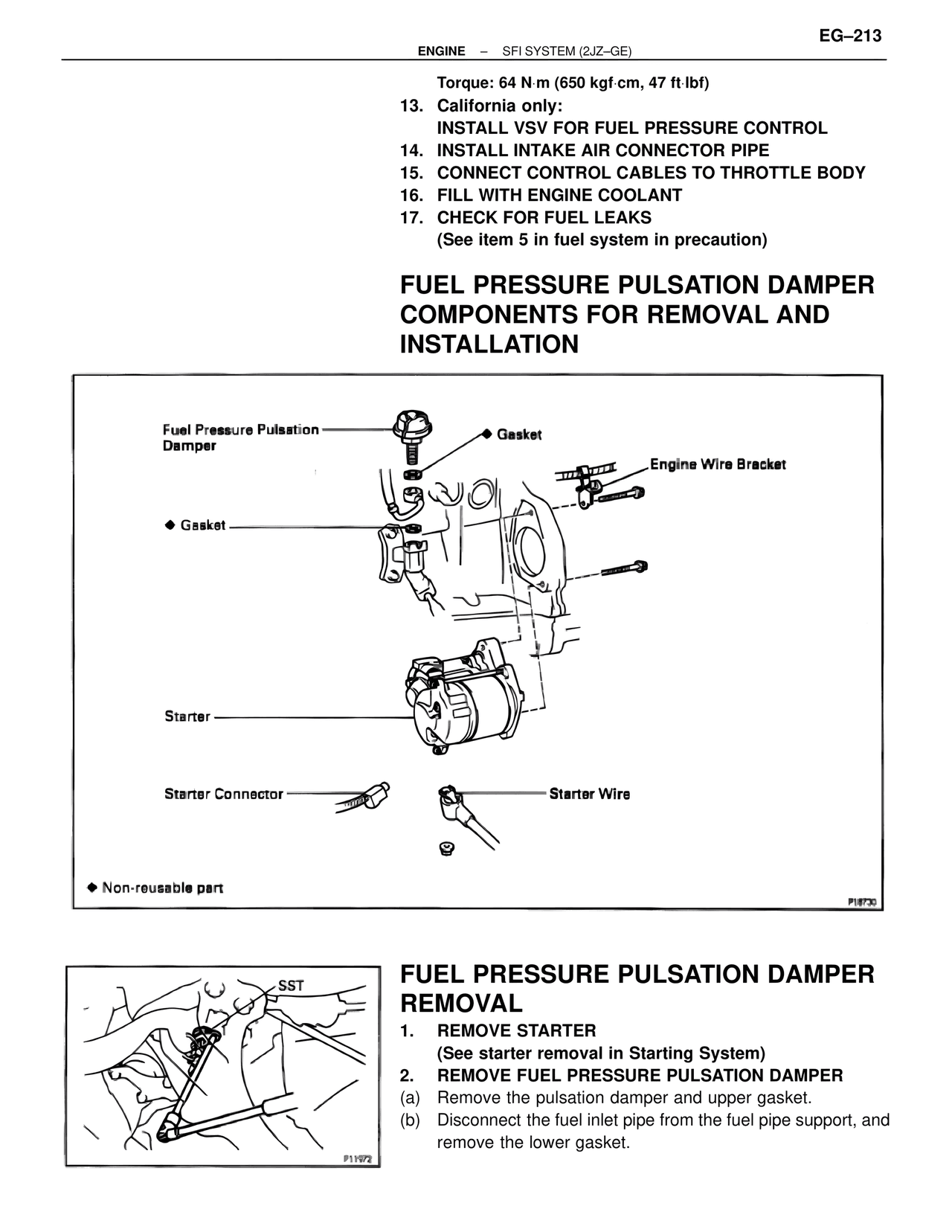

FUEL PRESSURE PULSATION DAMPER
COMPONENTS FOR REMOVAL AND
INSTALLATION

Fuel Pressure Pulsation
Damper
Gasket
Engine Wire Bracket
Gasket
Starter
Starter Connector
Starter Wire
♦ Non-reusable part
P18730

SST
P11972

FUEL PRESSURE PULSATION DAMPER
REMOVAL
1. REMOVE STARTER
   (See starter removal in Starting System)
2. REMOVE FUEL PRESSURE PULSATION DAMPER
(a) Remove the pulsation damper and upper gasket.
(b) Disconnect the fuel inlet pipe from the fuel pipe support, and
    remove the lower gasket.
