ENGINE – SFI SYSTEM (2JZ–GE)

Air
E
Filter
P00589

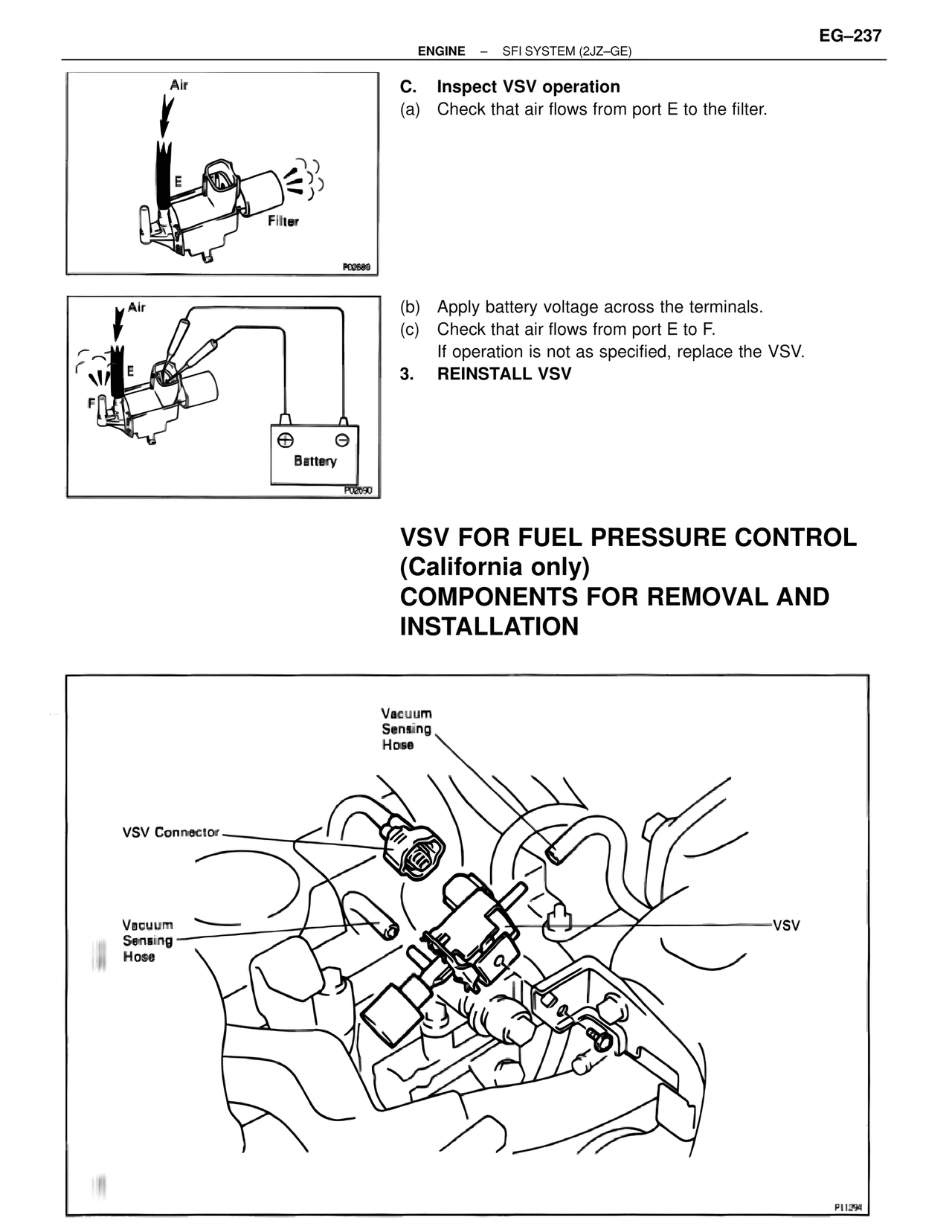

C. Inspect VSV operation
(a) Check that air flows from port E to the filter.

Air
E
F
+ -
Battery
P00590

(b) Apply battery voltage across the terminals.
(c) Check that air flows from port E to F.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV

VSV FOR FUEL PRESSURE CONTROL
(California only)
COMPONENTS FOR REMOVAL AND
INSTALLATION

Vacuum
Sensing
Hose

VSV Connector

Vacuum
Sensing
Hose

VSV

P11294
