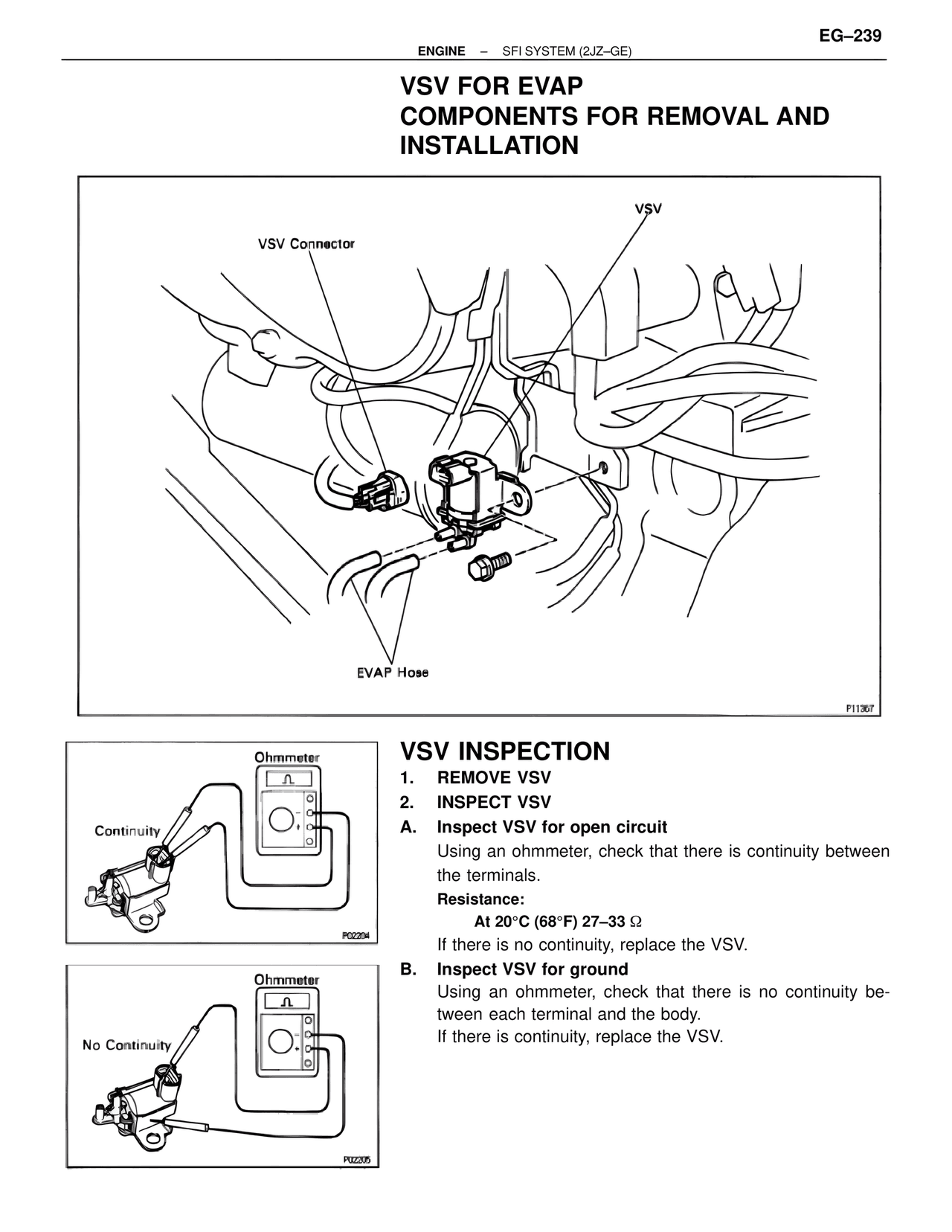

ENGINE – SFI SYSTEM (2JZ-GE)

VSV FOR EVAP
COMPONENTS FOR REMOVAL AND
INSTALLATION

VSV Connector
VSV
EVAP Hose
P11367

Ohmmeter
Continuity
P02204

Ohmmeter
No Continuity
P02205

VSV INSPECTION
1. REMOVE VSV
2. INSPECT VSV
A. Inspect VSV for open circuit
Using an ohmmeter, check that there is continuity between
the terminals.
Resistance:
 At 20°C (68°F) 27–33 Ω
If there is no continuity, replace the VSV.

B. Inspect VSV for ground
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.
