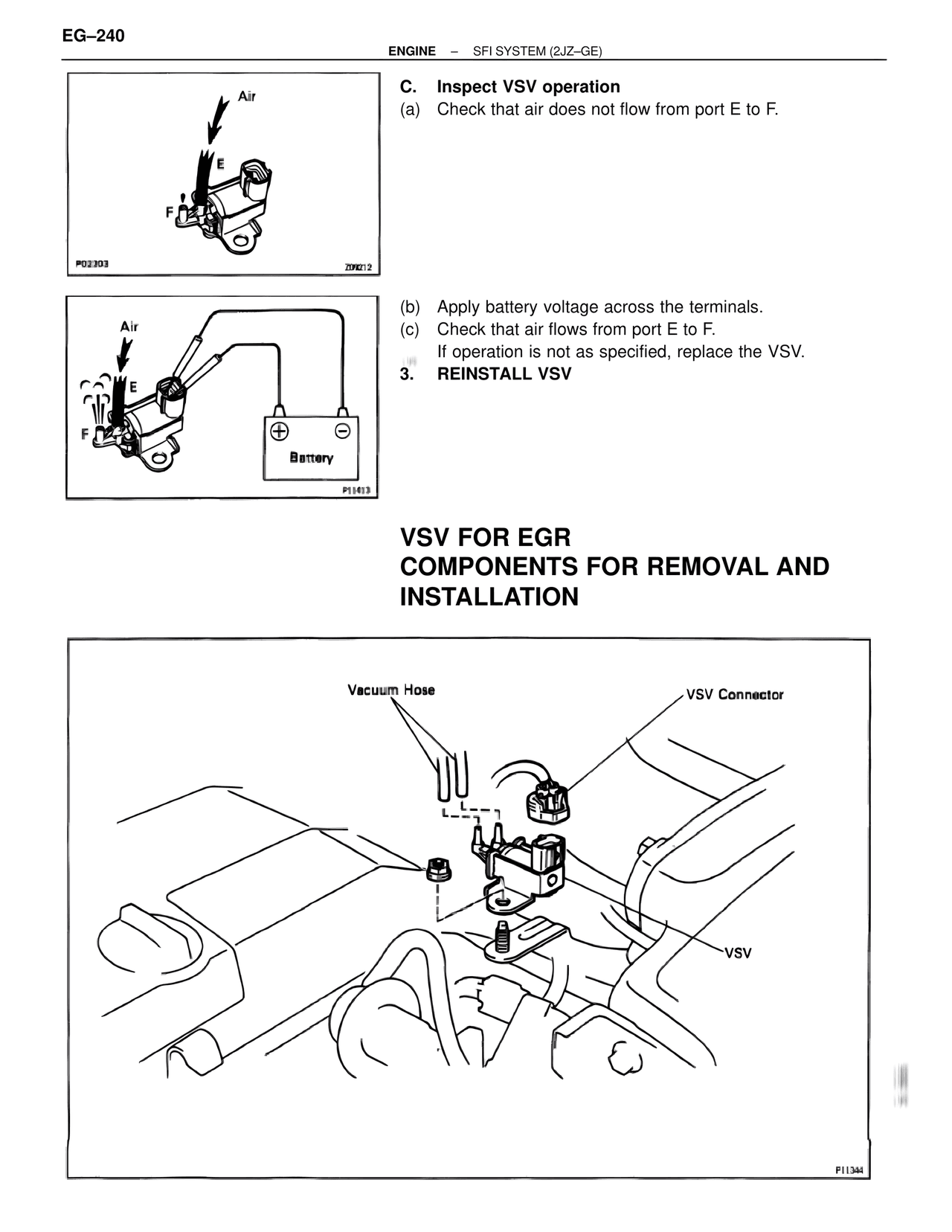

SFGE/SFI System 2JZ-GE — VSV for EGR Components for Removal and Installation, page 54

EG–240
ENGINE – SFI SYSTEM (2JZ–GE)

Air
E
F
P02303
Z09212

C. Inspect VSV operation
(a) Check that air does not flow from port E to F.

Air
E
F
P11413
Battery

(b) Apply battery voltage across the terminals.
(c) Check that air flows from port E to F.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV

VSV FOR EGR
COMPONENTS FOR REMOVAL AND
INSTALLATION

Vacuum Hose
VSV Connector
L
VSV
P11344
