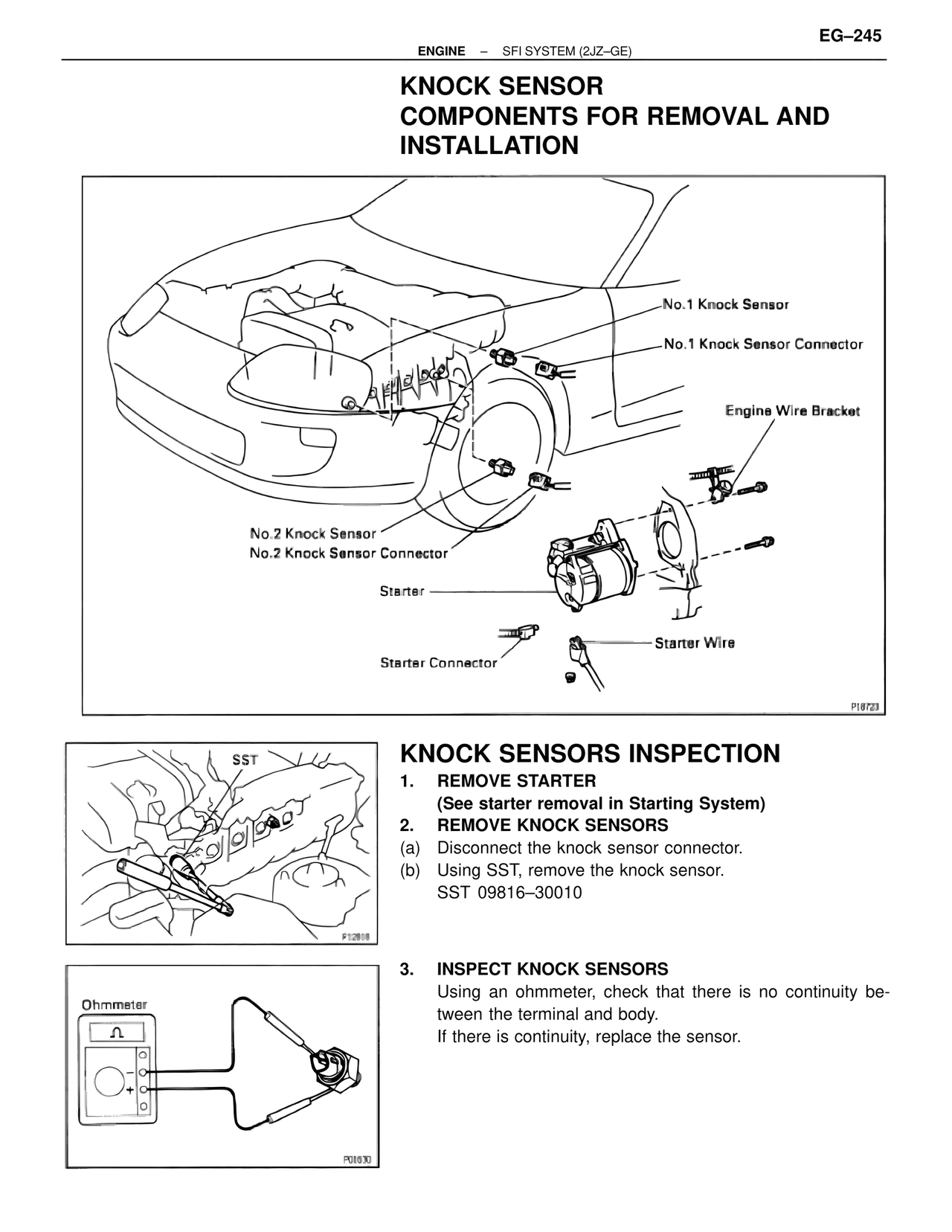

ENGINE – SFI SYSTEM (2JZ–GE)

KNOCK SENSOR
COMPONENTS FOR REMOVAL AND
INSTALLATION

No.1 Knock Sensor
No.1 Knock Sensor Connector
Engine Wire Bracket
No.2 Knock Sensor
No.2 Knock Sensor Connector
Starter
Starter Connector
Starter Wire

P18723

SST

P12818

Ohmmeter

POM600

KNOCK SENSORS INSPECTION
1. REMOVE STARTER
(See starter removal in Starting System)
2. REMOVE KNOCK SENSORS
(a) Disconnect the knock sensor connector.
(b) Using SST, remove the knock sensor.
SST 09816–30010

3. INSPECT KNOCK SENSORS
Using an ohmmeter, check that there is no continuity between the terminal and body.
If there is continuity, replace the sensor.
