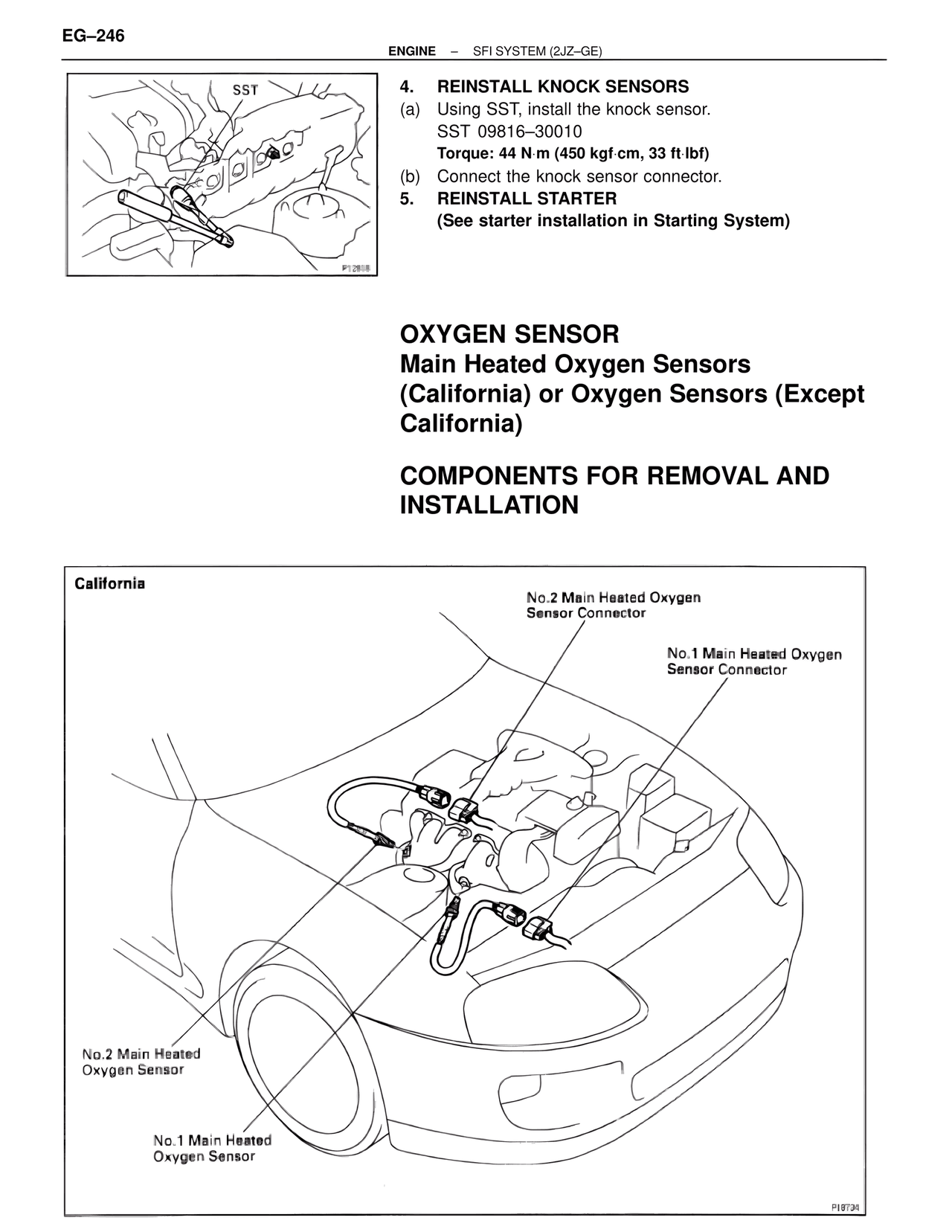

EG–246
ENGINE – SFI SYSTEM (2JZ–GE)

4. REINSTALL KNOCK SENSORS
(a) Using SST, install the knock sensor.
SST 09816–30010
Torque: 44 N·m (450 kgf·cm, 33 ft·lbf)
(b) Connect the knock sensor connector.
5. REINSTALL STARTER
(See starter installation in Starting System)

OXYGEN SENSOR
Main Heated Oxygen Sensors
(California) or Oxygen Sensors (Except
California)

COMPONENTS FOR REMOVAL AND
INSTALLATION

California

No.2 Main Heated Oxygen
Sensor Connector

No.1 Main Heated Oxygen
Sensor Connector

No.2 Main Heated
Oxygen Sensor

No.1 Main Heated
Oxygen Sensor

P18734
