EG–252

ENGINE – SFI SYSTEM (2JZ–GE)

FUEL PUMP ECU

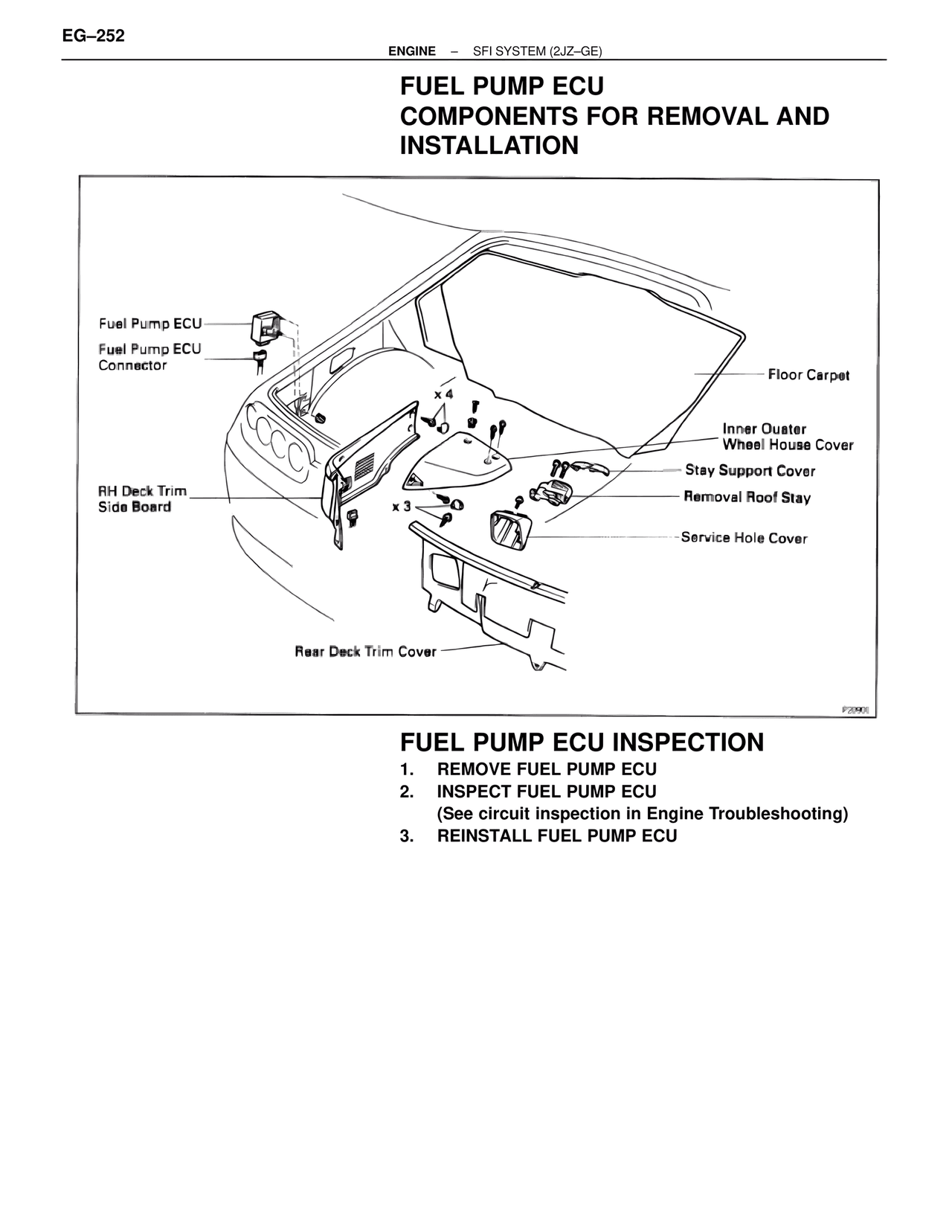

COMPONENTS FOR REMOVAL AND
INSTALLATION

Fuel Pump ECU
Fuel Pump ECU
Connector

Floor Carpet

Inner Ouster
Wheel House Cover

Stay Support Cover

Removal Roof Stay

RH Deck Trim
Side Board

x 4

x 3

Service Hole Cover

Rear Deck Trim Cover

P20900

FUEL PUMP ECU INSPECTION

1. REMOVE FUEL PUMP ECU
2. INSPECT FUEL PUMP ECU
(See circuit inspection in Engine Troubleshooting)
3. REINSTALL FUEL PUMP ECU
