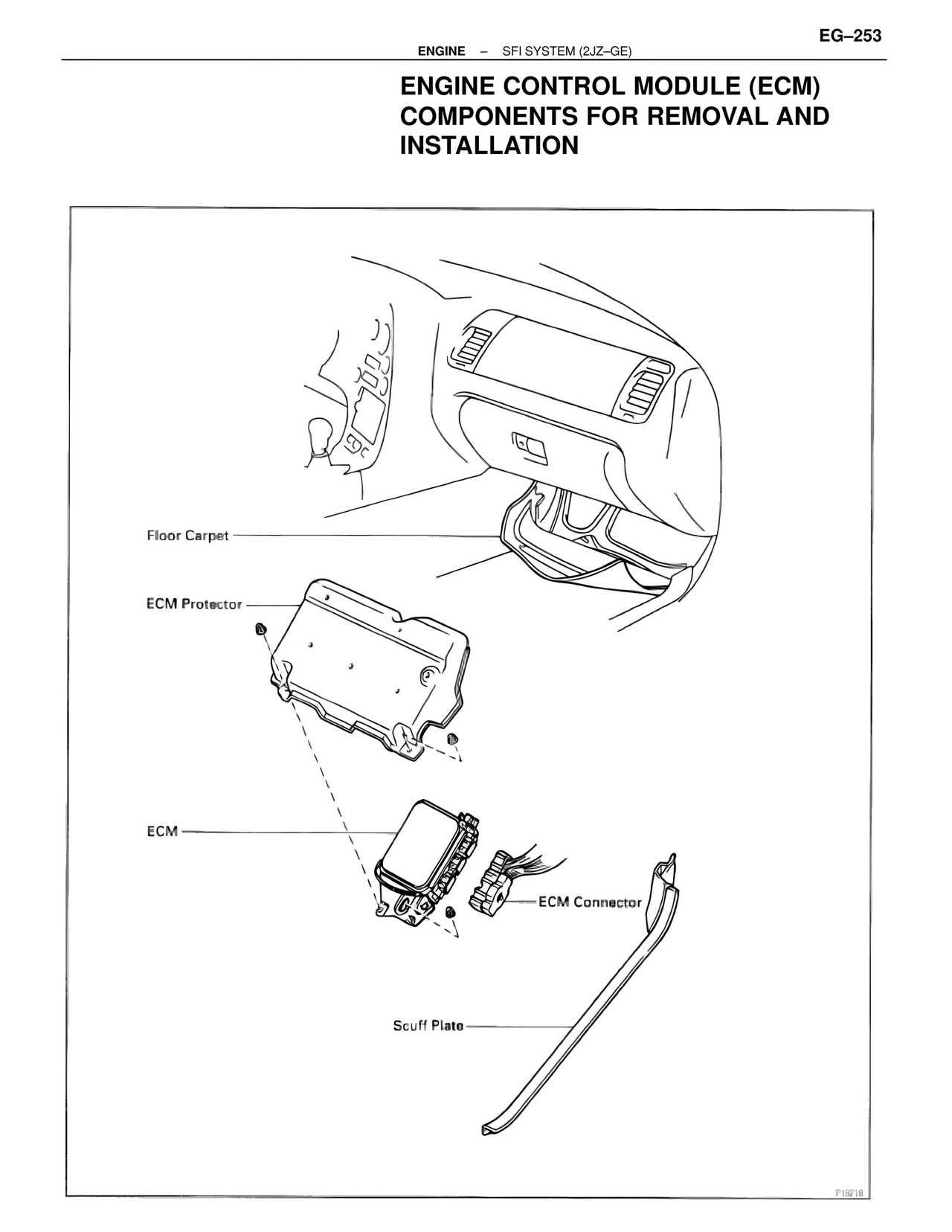

EG–253

ENGINE – SFI SYSTEM (2JZ–GE)

ENGINE CONTROL MODULE (ECM)
COMPONENTS FOR REMOVAL AND
INSTALLATION

Floor Carpet

ECM Protector

ECM

ECM Connector

Scuff Plate

P18718
