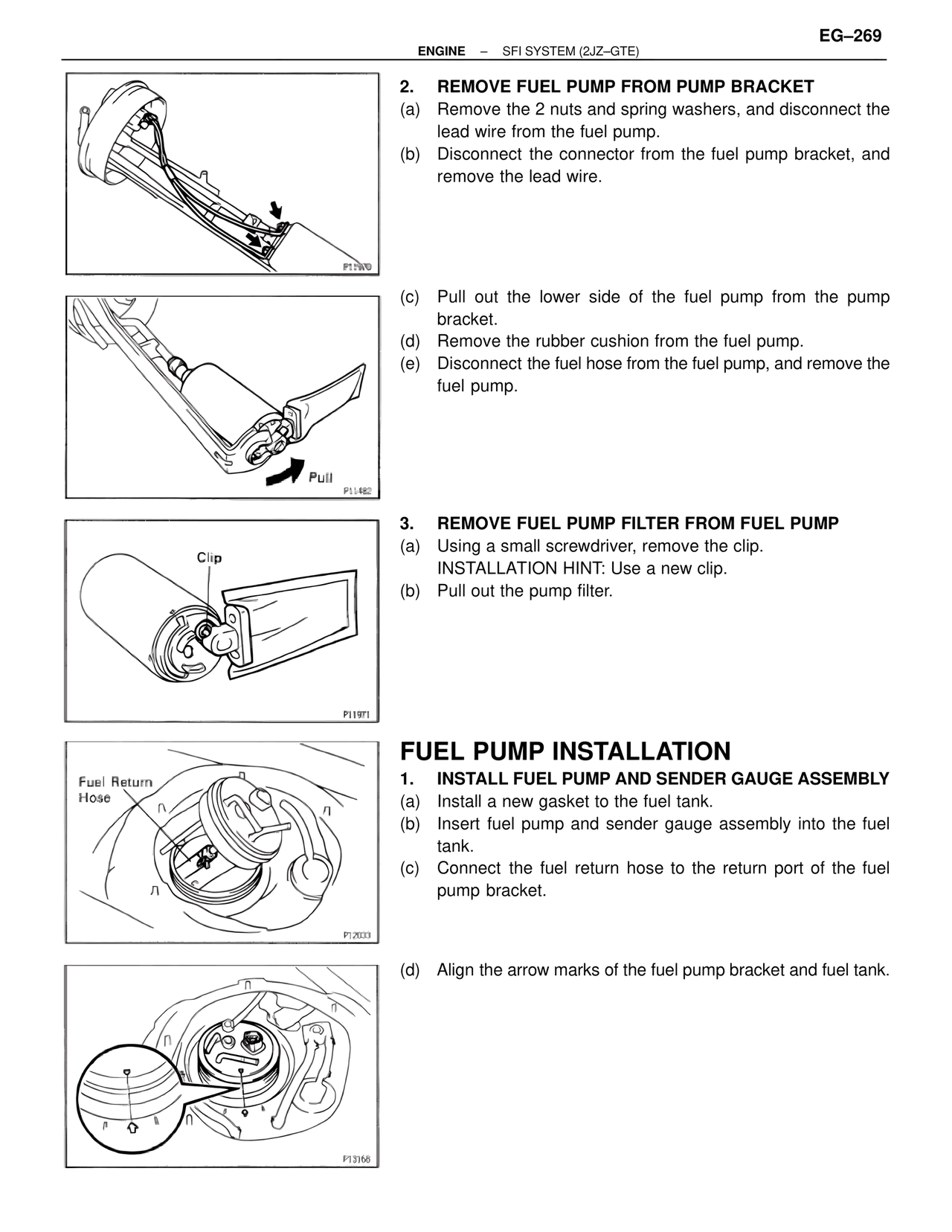

EG-269 ENGINE – SFI SYSTEM (2JZ-GTE) 2. REMOVE FUEL PUMP FROM PUMP BRACKET (a) Remove the 2 nuts and spring washers, and disconnect the lead wire from the fuel pump. (b) Disconnect the connector from the fuel pump bracket, and remove the lead wire. P13W0 (c) Pull out the lower side of the fuel pump from the pump bracket. (d) Remove the rubber cushion from the fuel pump. (e) Disconnect the fuel hose from the fuel pump, and remove the fuel pump. Pull P11482 3. REMOVE FUEL PUMP FILTER FROM FUEL PUMP (a) Using a small screwdriver, remove the clip. INSTALLATION HINT: Use a new clip. (b) Pull out the pump filter. Clip P11971 FUEL PUMP INSTALLATION 1. INSTALL FUEL PUMP AND SENDER GAUGE ASSEMBLY (a) Install a new gasket to the fuel tank. (b) Insert fuel pump and sender gauge assembly into the fuel tank. (c) Connect the fuel return hose to the return port of the fuel pump bracket. Fuel Return Hose P12033 (d) Align the arrow marks of the fuel pump bracket and fuel tank. P13168
