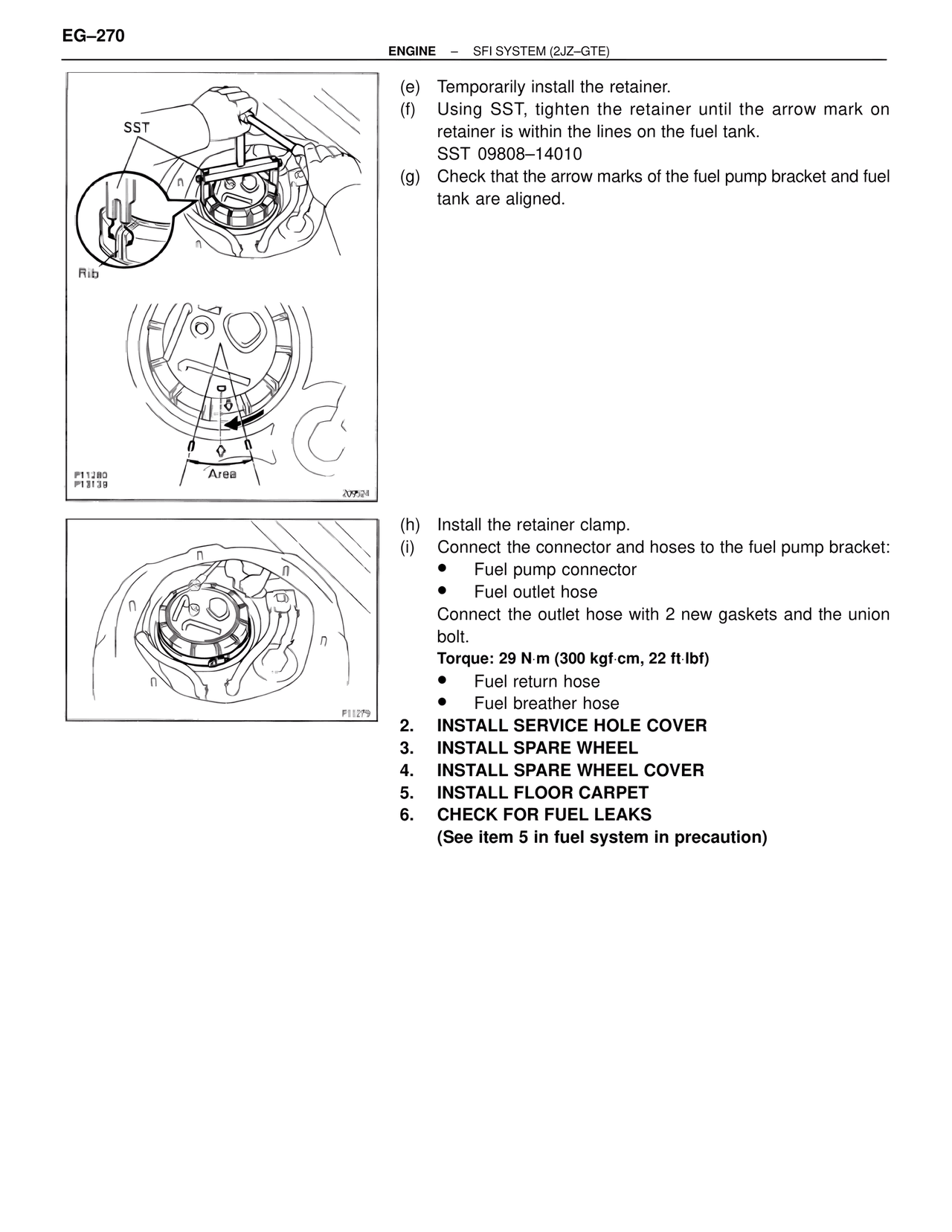

EG–270
ENGINE – SFI SYSTEM (2JZ–GTE)
SST
Rib
P11280
P13139
Area
209P04
P11279
(e) Temporarily install the retainer.
(f) Using SST, tighten the retainer until the arrow mark on
retainer is within the lines on the fuel tank.
SST 09808–14010
(g) Check that the arrow marks of the fuel pump bracket and fuel
tank are aligned.
(h) Install the retainer clamp.
(i) Connect the connector and hoses to the fuel pump bracket:
• Fuel pump connector
• Fuel outlet hose
Connect the outlet hose with 2 new gaskets and the union
bolt.
Torque: 29 N·m (300 kgf·cm, 22 ft·lbf)
• Fuel return hose
• Fuel breather hose
2. INSTALL SERVICE HOLE COVER
3. INSTALL SPARE WHEEL
4. INSTALL SPARE WHEEL COVER
5. INSTALL FLOOR CARPET
6. CHECK FOR FUEL LEAKS
(See item 5 in fuel system in precaution)
