EG–271
ENGINE – SFI SYSTEM (2JZ–GTE)

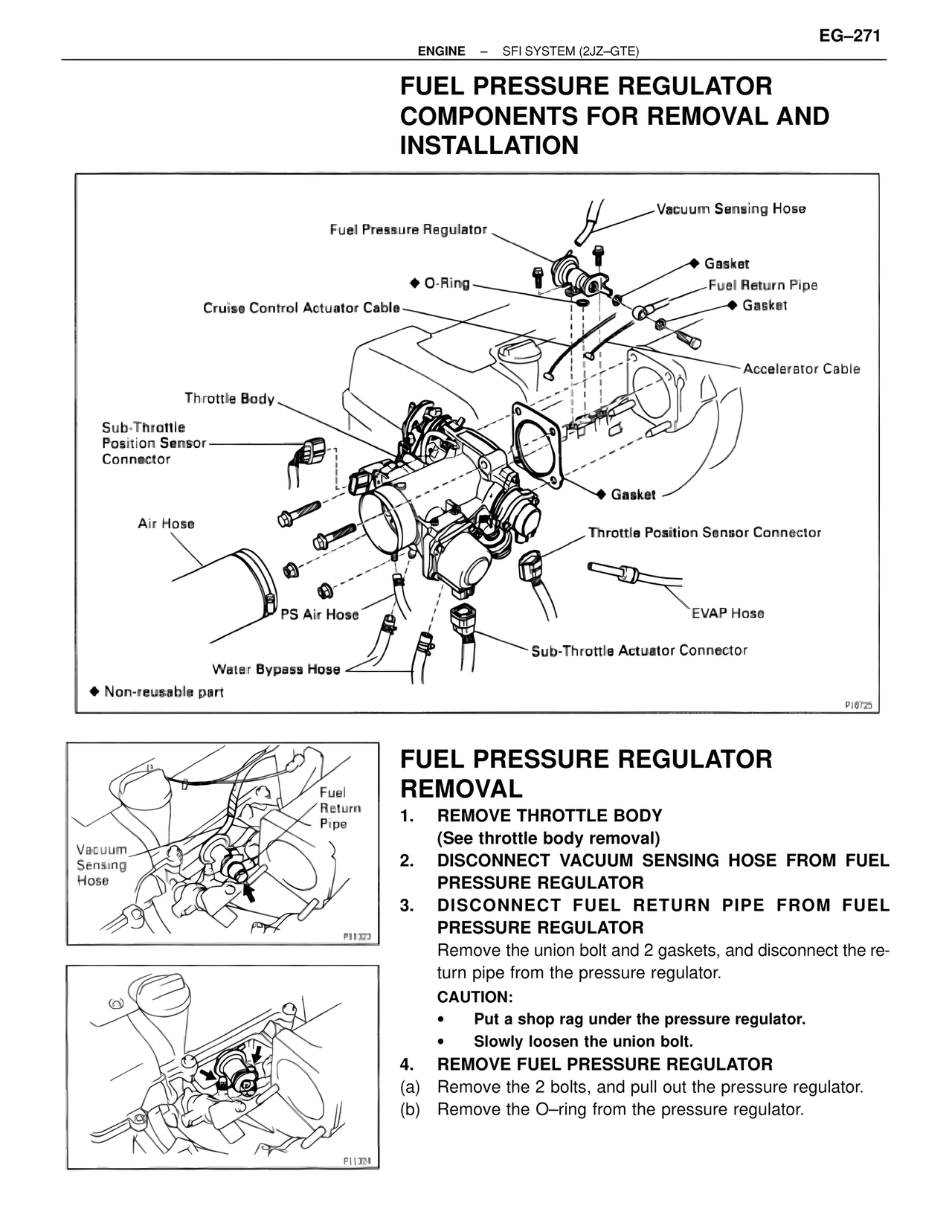

FUEL PRESSURE REGULATOR COMPONENTS FOR REMOVAL AND INSTALLATION

Vacuum Sensing Hose
Fuel Pressure Regulator
♦ Gasket
♦ O-Ring
Fuel Return Pipe
Cruise Control Actuator Cable
♦ Gasket
Accelerator Cable
Throttle Body
Sub-Throttle Position Sensor Connector
♦ Gasket
Air Hose
Throttle Position Sensor Connector
PS Air Hose
EVAP Hose
Water Bypass Hose
Sub-Throttle Actuator Connector
♦ Non-reusable part
P18725

Fuel Return Pipe
Vacuum Sensing Hose
P11323

P11324

FUEL PRESSURE REGULATOR REMOVAL

1. REMOVE THROTTLE BODY
(See throttle body removal)
2. DISCONNECT VACUUM SENSING HOSE FROM FUEL PRESSURE REGULATOR
3. DISCONNECT FUEL RETURN PIPE FROM FUEL PRESSURE REGULATOR
Remove the union bolt and 2 gaskets, and disconnect the return pipe from the pressure regulator.
CAUTION:
• Put a shop rag under the pressure regulator.
• Slowly loosen the union bolt.
4. REMOVE FUEL PRESSURE REGULATOR
(a) Remove the 2 bolts, and pull out the pressure regulator.
(b) Remove the O–ring from the pressure regulator.
