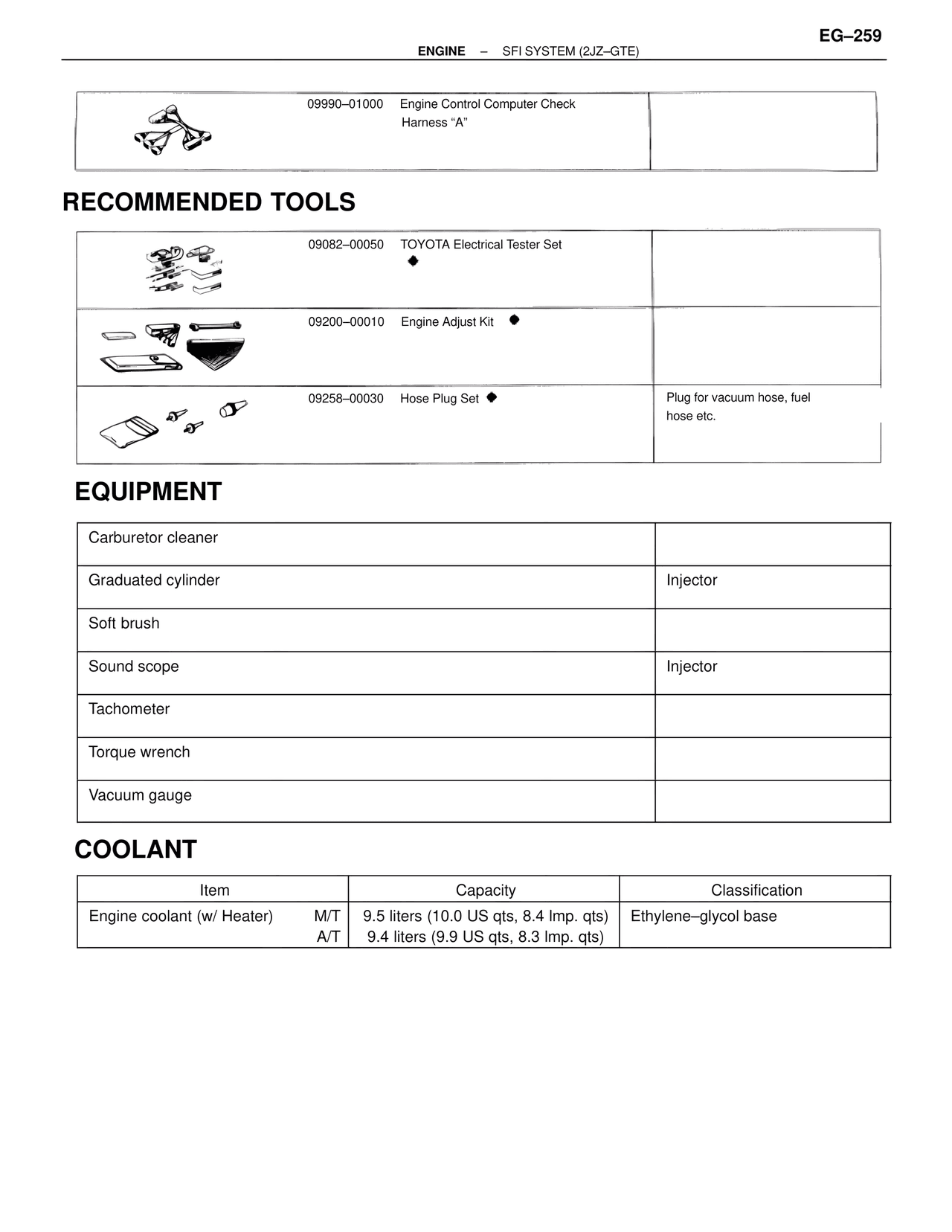

EG–259
ENGINE – SFI SYSTEM (2JZ–GTE)
09990–01000 Engine Control Computer Check
Harness "A"
RECOMMENDED TOOLS
09082–00050 TOYOTA Electrical Tester Set
◆
09200–00010 Engine Adjust Kit ◆
09258–00030 Hose Plug Set ◆ Plug for vacuum hose, fuel
hose etc.
EQUIPMENT
Carburetor cleaner
Graduated cylinder Injector
Soft brush
Sound scope Injector
Tachometer
Torque wrench
Vacuum gauge
COOLANT
Item Capacity Classification
Engine coolant (w/ Heater) M/T 9.5 liters (10.0 US qts, 8.4 lmp. qts) Ethylene–glycol base
A/T 9.4 liters (9.9 US qts, 8.3 lmp. qts)
