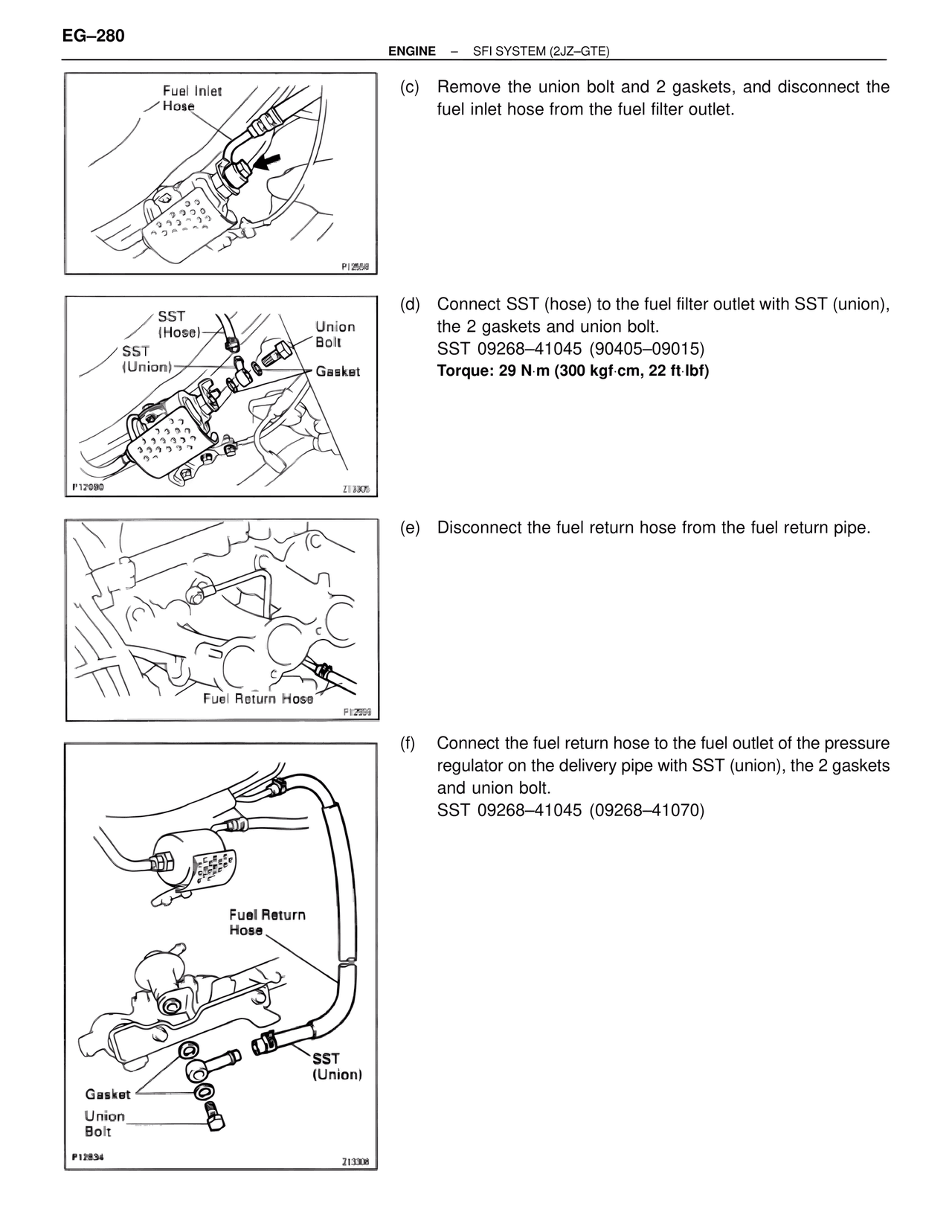

SFTE/SFI System 2JZ-GTE, page 23

EG–280

ENGINE – SFI SYSTEM (2JZ–GTE)

Fuel Inlet
Hose

P12558

(c) Remove the union bolt and 2 gaskets, and disconnect the
fuel inlet hose from the fuel filter outlet.

SST
(Hose)
SST
(Union)

Union
Bolt
Gasket

P12090                                          Z13305

(d) Connect SST (hose) to the fuel filter outlet with SST (union),
the 2 gaskets and union bolt.
SST 09268–41045 (90405–09015)
Torque: 29 N·m (300 kgf·cm, 22 ft·lbf)

Fuel Return Hose

P12599

(e) Disconnect the fuel return hose from the fuel return pipe.

Fuel Return
Hose

SST
(Union)

Gasket
Union
Bolt

P12834                                          Z13308

(f) Connect the fuel return hose to the fuel outlet of the pressure
regulator on the delivery pipe with SST (union), the 2 gaskets
and union bolt.
SST 09268–41045 (09268–41070)
