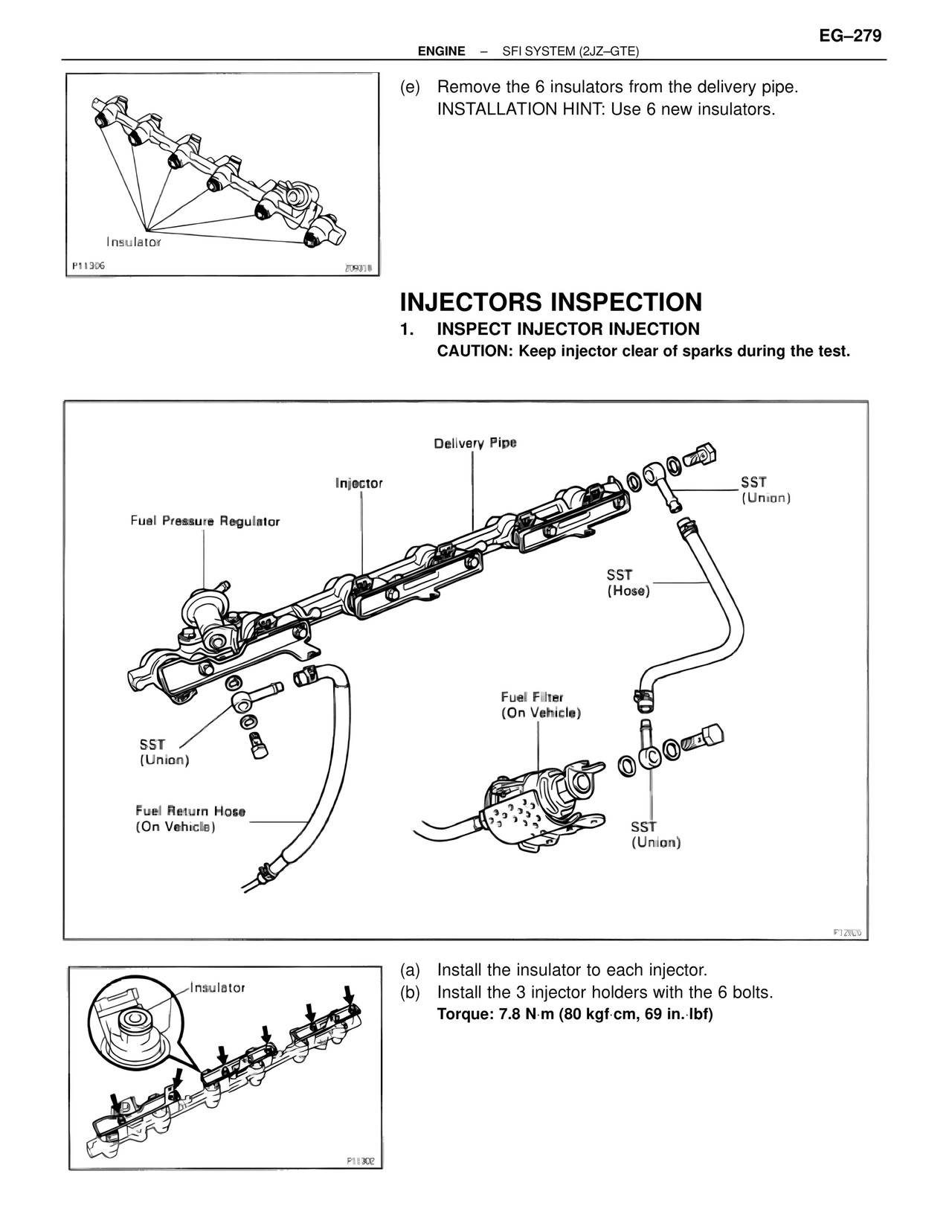

EG–279
ENGINE – SFI SYSTEM (2JZ–GTE)
Insulator
P11306
Z05018
(e) Remove the 6 insulators from the delivery pipe.
INSTALLATION HINT: Use 6 new insulators.
INJECTORS INSPECTION
1. INSPECT INJECTOR INJECTION
CAUTION: Keep injector clear of sparks during the test.
Delivery Pipe
Injector
SST
(Union)
Fuel Pressure Regulator
SST
(Hose)
Fuel Filter
(On Vehicle)
SST
(Union)
Fuel Return Hose
(On Vehicle)
P12826
Insulator
P11302
(a) Install the insulator to each injector.
(b) Install the 3 injector holders with the 6 bolts.
Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf)
