ENGINE – SFI SYSTEM (2JZ–GTE)

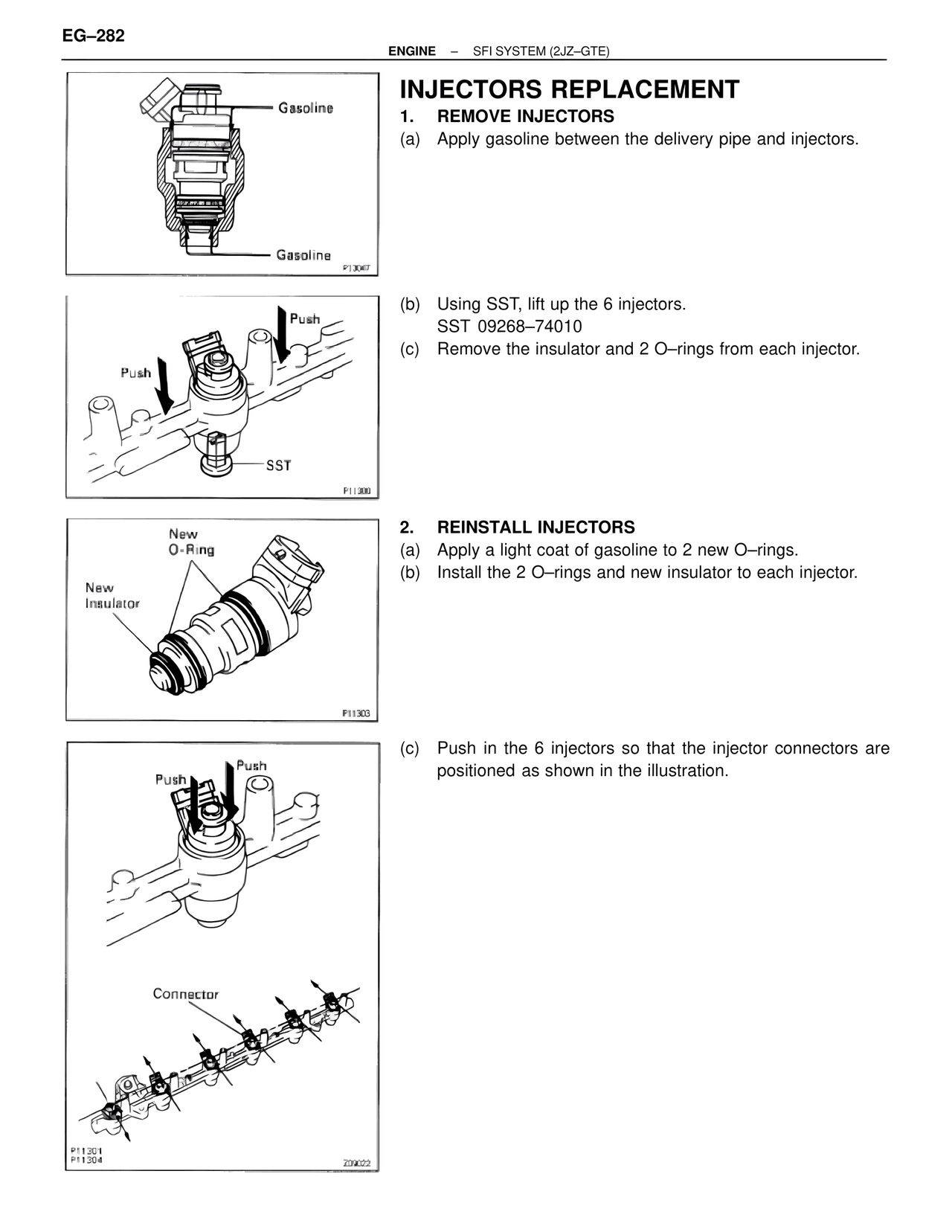

INJECTORS REPLACEMENT
Gasoline
Gasoline
P13067
1. REMOVE INJECTORS
(a) Apply gasoline between the delivery pipe and injectors.
Push
Push
SST
P11309
(b) Using SST, lift up the 6 injectors.
SST 09268–74010
(c) Remove the insulator and 2 O–rings from each injector.
New
O-Ring
New
Insulator
P11303
2. REINSTALL INJECTORS
(a) Apply a light coat of gasoline to 2 new O–rings.
(b) Install the 2 O–rings and new insulator to each injector.
Push
Push
Connector
P11301
P11304
299022
(c) Push in the 6 injectors so that the injector connectors are
positioned as shown in the illustration.
