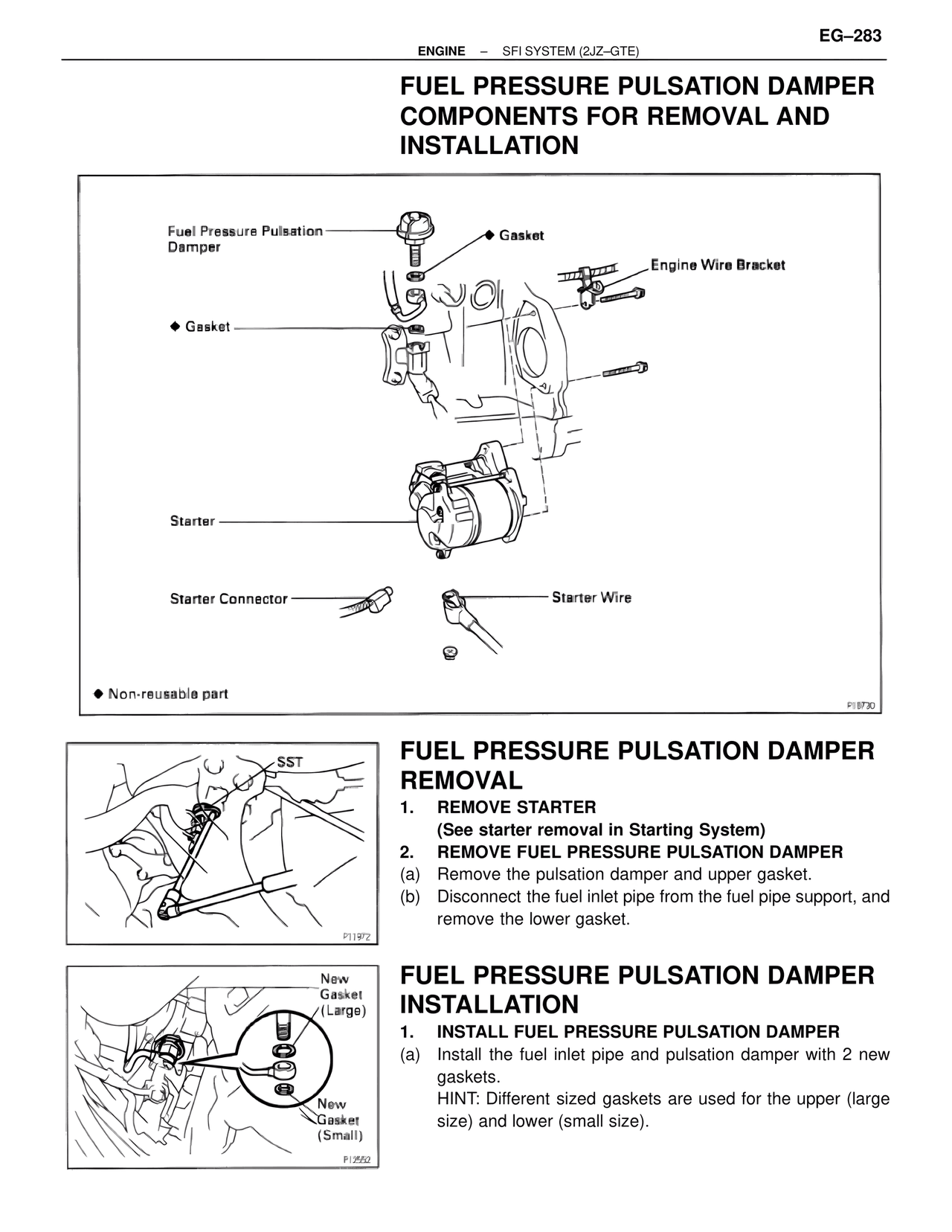

EG–283
ENGINE – SFI SYSTEM (2JZ–GTE)

FUEL PRESSURE PULSATION DAMPER
COMPONENTS FOR REMOVAL AND
INSTALLATION

Fuel Pressure Pulsation
Damper
♦ Gasket
Gasket
Engine Wire Bracket
♦ Gasket
Starter
Starter Connector
Starter Wire
♦ Non-reusable part
P18730

FUEL PRESSURE PULSATION DAMPER
REMOVAL

SST
P11972

1. REMOVE STARTER
(See starter removal in Starting System)
2. REMOVE FUEL PRESSURE PULSATION DAMPER
(a) Remove the pulsation damper and upper gasket.
(b) Disconnect the fuel inlet pipe from the fuel pipe support, and
remove the lower gasket.

FUEL PRESSURE PULSATION DAMPER
INSTALLATION

New
Gasket
(Large)
New
Gasket
(Small)
P12552

1. INSTALL FUEL PRESSURE PULSATION DAMPER
(a) Install the fuel inlet pipe and pulsation damper with 2 new
gaskets.
HINT: Different sized gaskets are used for the upper (large
size) and lower (small size).
