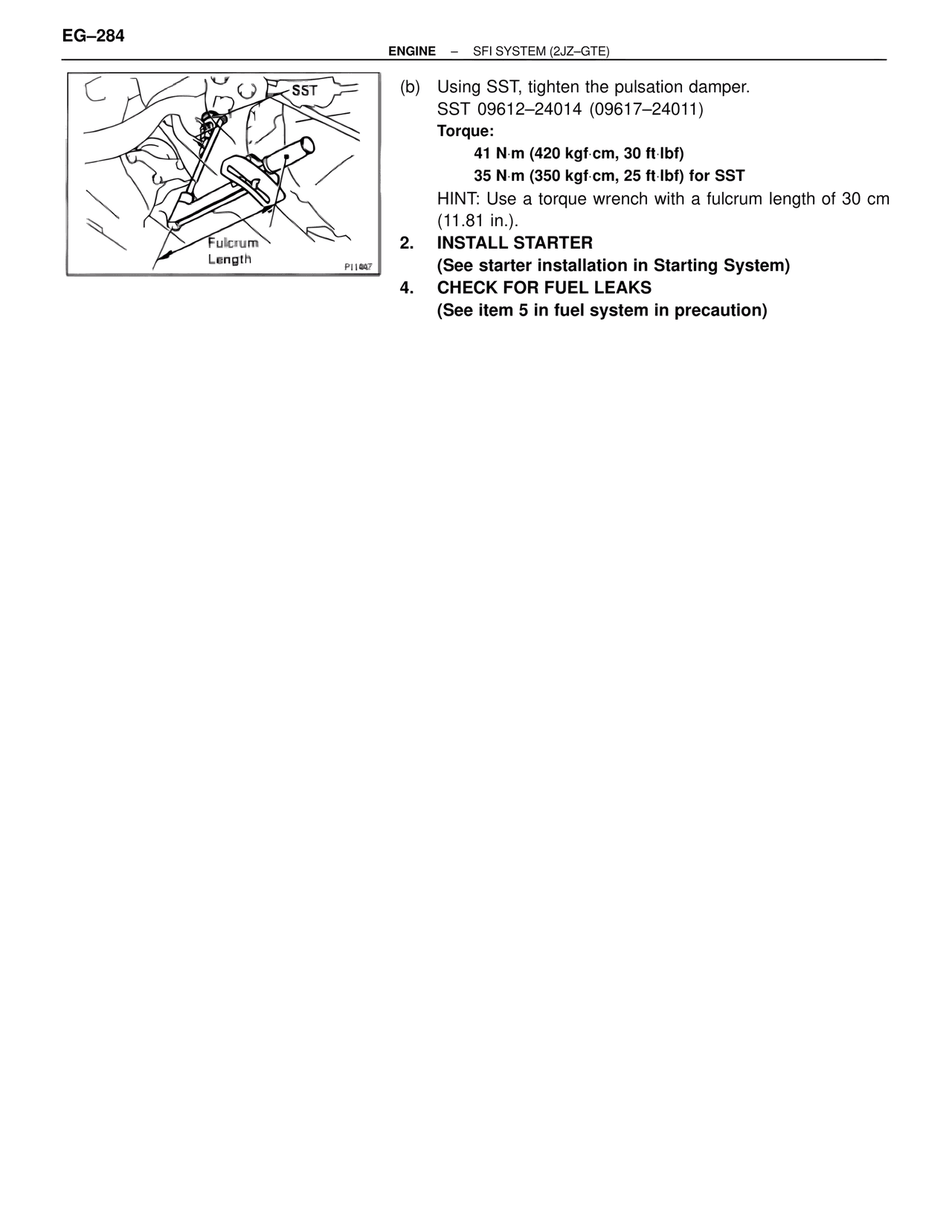

EG–284
ENGINE – SFI SYSTEM (2JZ–GTE)
SST
Fulcrum
Length
P11407
(b) Using SST, tighten the pulsation damper.
SST 09612–24014 (09617–24011)
Torque:
41 N·m (420 kgf·cm, 30 ft·lbf)
35 N·m (350 kgf·cm, 25 ft·lbf) for SST
HINT: Use a torque wrench with a fulcrum length of 30 cm
(11.81 in.).
2. INSTALL STARTER
(See starter installation in Starting System)
4. CHECK FOR FUEL LEAKS
(See item 5 in fuel system in precaution)
