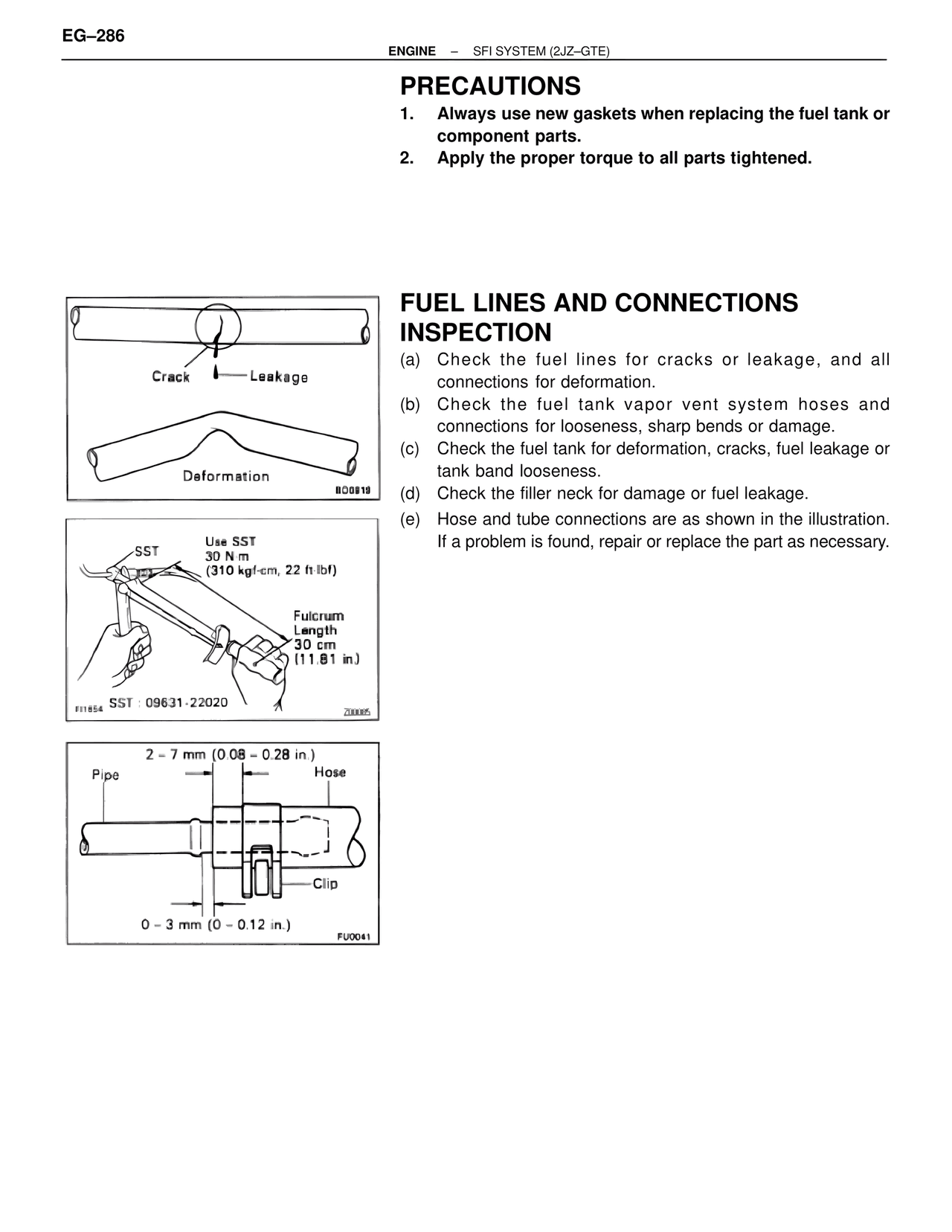

EG–286
ENGINE – SFI SYSTEM (2JZ–GTE)
PRECAUTIONS
1. Always use new gaskets when replacing the fuel tank or component parts.
2. Apply the proper torque to all parts tightened.
Crack Leakage
Deformation
BO0#19
Use SST
SST 30 N·m
(310 kgf·cm, 22 ft·lbf)
Fulcrum
Length
30 cm
(11.81 in.)
FI1854 SST : 09631-22020 200005
2 – 7 mm (0.08 – 0.28 in.)
Pipe Hose
Clip
0 – 3 mm (0 – 0.12 in.)
FU0041
FUEL LINES AND CONNECTIONS INSPECTION
(a) Check the fuel lines for cracks or leakage, and all connections for deformation.
(b) Check the fuel tank vapor vent system hoses and connections for looseness, sharp bends or damage.
(c) Check the fuel tank for deformation, cracks, fuel leakage or tank band looseness.
(d) Check the filler neck for damage or fuel leakage.
(e) Hose and tube connections are as shown in the illustration. If a problem is found, repair or replace the part as necessary.
