EG-287
ENGINE – SFI SYSTEM (2JZ-GTE)

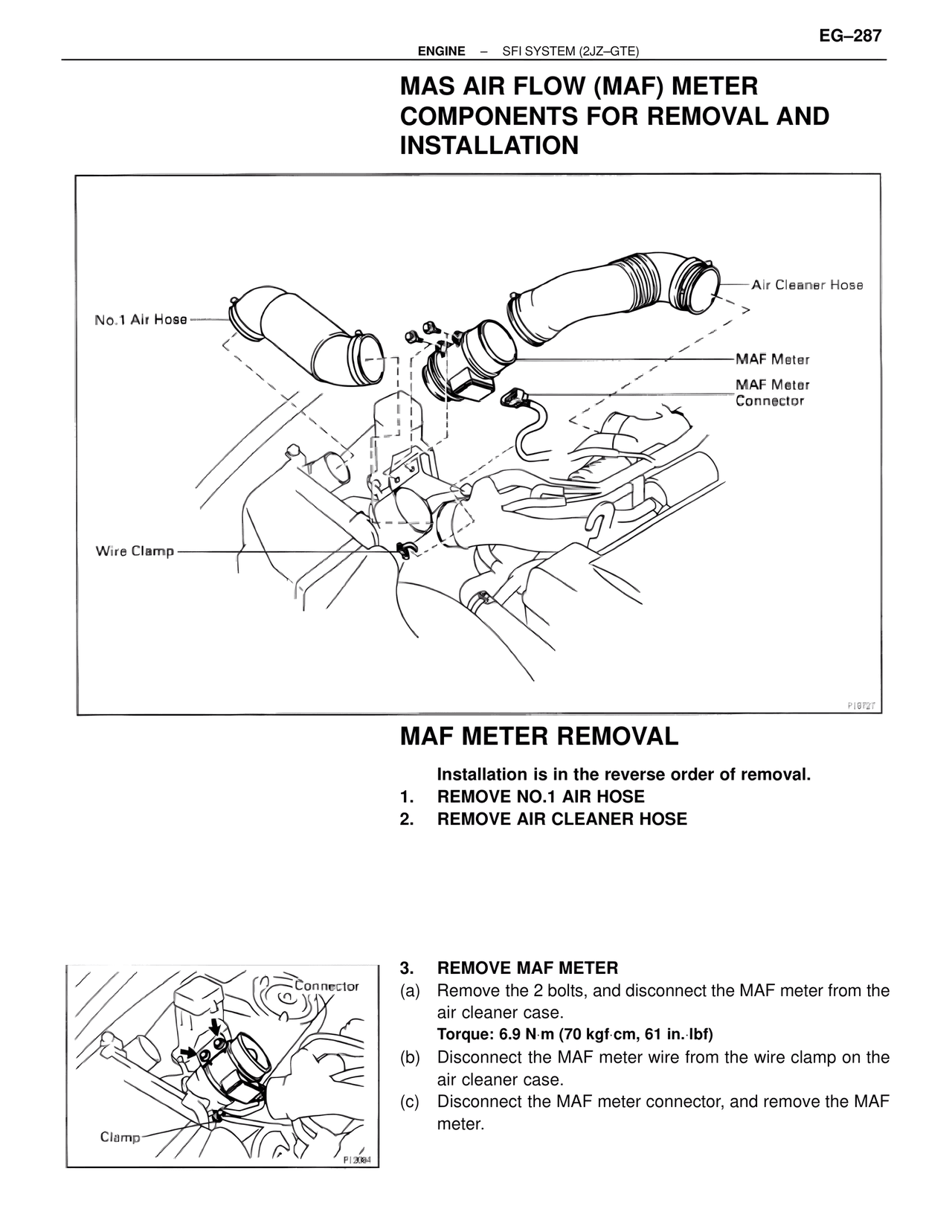

MAS AIR FLOW (MAF) METER
COMPONENTS FOR REMOVAL AND
INSTALLATION

No.1 Air Hose
Air Cleaner Hose
MAF Meter
MAF Meter Connector
Wire Clamp

P19T27

MAF METER REMOVAL

Installation is in the reverse order of removal.
1. REMOVE NO.1 AIR HOSE
2. REMOVE AIR CLEANER HOSE

3. REMOVE MAF METER
(a) Remove the 2 bolts, and disconnect the MAF meter from the
air cleaner case.
Torque: 6.9 N·m (70 kgf·cm, 61 in.·lbf)
(b) Disconnect the MAF meter wire from the wire clamp on the
air cleaner case.
(c) Disconnect the MAF meter connector, and remove the MAF
meter.

Connector
Clamp
P13094
