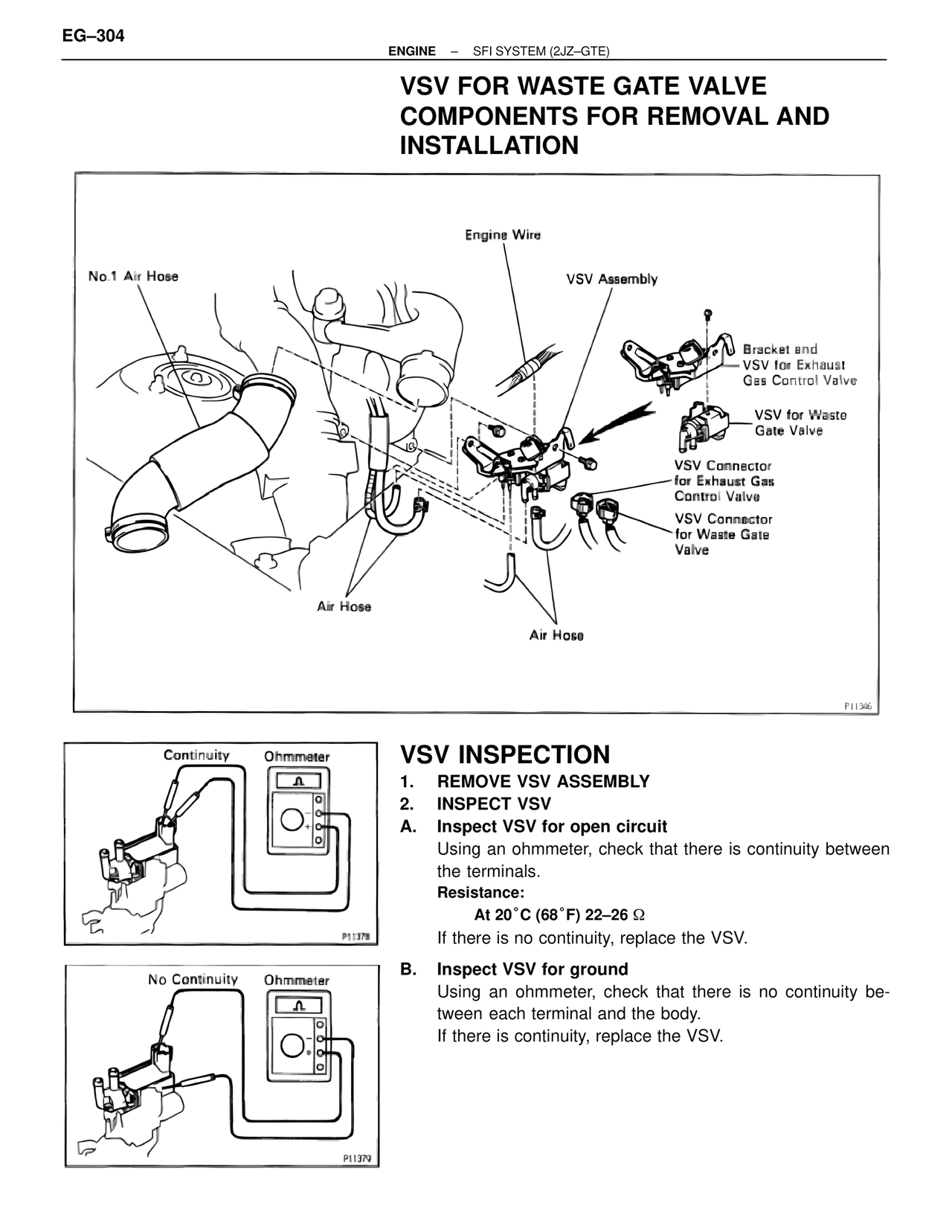

SFTE/SFI System 2JZ-GTE — VSV for Waste Gate Valve Components for Removal and Installation, page 47

EG–304
ENGINE – SFI SYSTEM (2JZ–GTE)

VSV FOR WASTE GATE VALVE
COMPONENTS FOR REMOVAL AND
INSTALLATION

Engine Wire
No.1 Air Hose
VSV Assembly
Bracket and
VSV for Exhaust
Gas Control Valve
VSV for Waste
Gate Valve
VSV Connector
for Exhaust Gas
Control Valve
VSV Connector
for Waste Gate
Valve
Air Hose
Air Hose

P11346

Continuity    Ohmmeter

P11378

No Continuity    Ohmmeter

P11379

VSV INSPECTION
1.    REMOVE VSV ASSEMBLY
2.    INSPECT VSV
A.    Inspect VSV for open circuit
Using an ohmmeter, check that there is continuity between
the terminals.
Resistance:
     At 20˚C (68˚F) 22–26 Ω
If there is no continuity, replace the VSV.

B.    Inspect VSV for ground
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.
