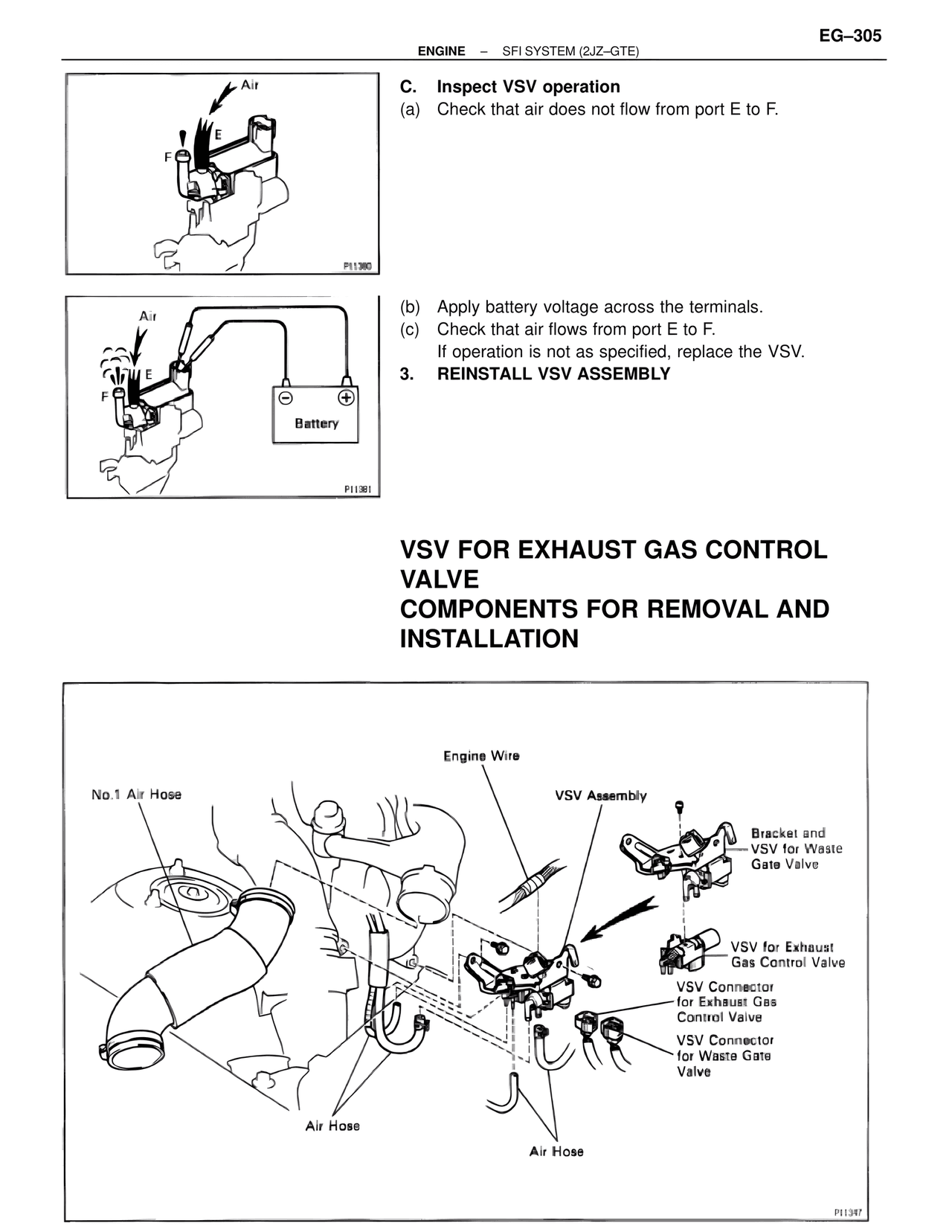

EG–305
ENGINE – SFI SYSTEM (2JZ–GTE)

Air
E
F
P11380

C. Inspect VSV operation
(a) Check that air does not flow from port E to F.

Air
E
F
Battery
P11381

(b) Apply battery voltage across the terminals.
(c) Check that air flows from port E to F.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV ASSEMBLY

VSV FOR EXHAUST GAS CONTROL VALVE
COMPONENTS FOR REMOVAL AND INSTALLATION

Engine Wire
No.1 Air Hose
VSV Assembly
Bracket and
VSV for Waste
Gate Valve
VSV for Exhaust
Gas Control Valve
VSV Connector
for Exhaust Gas
Control Valve
VSV Connector
for Waste Gate
Valve
Air Hose
Air Hose
P11347
