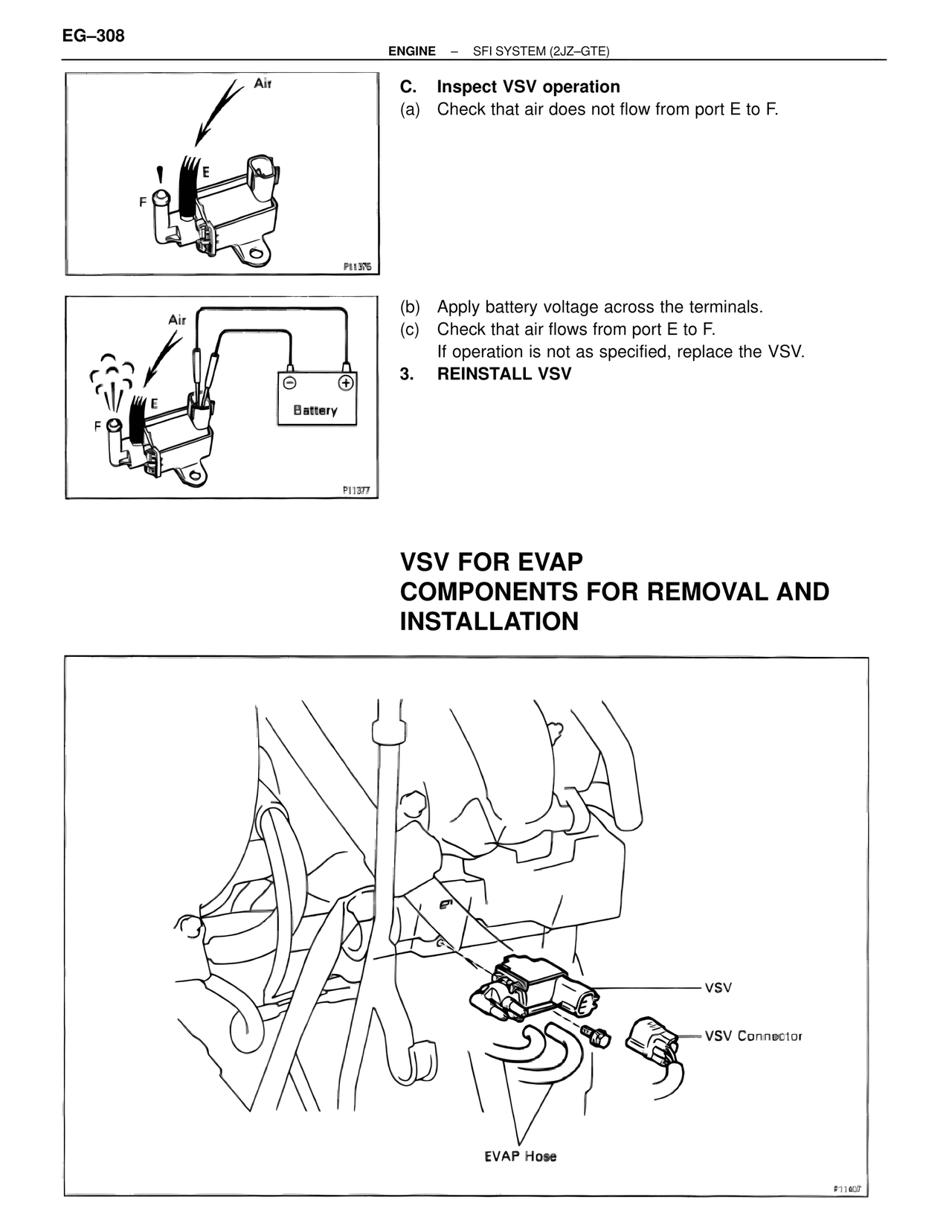

EG–308
ENGINE – SFI SYSTEM (2JZ–GTE)

Air
E
F
P11376

C. Inspect VSV operation
(a) Check that air does not flow from port E to F.

Air
E
F
⊖ ⊕
Battery
P11377

(b) Apply battery voltage across the terminals.
(c) Check that air flows from port E to F.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV

VSV FOR EVAP
COMPONENTS FOR REMOVAL AND
INSTALLATION

VSV
VSV Connector
EVAP Hose
P11407
