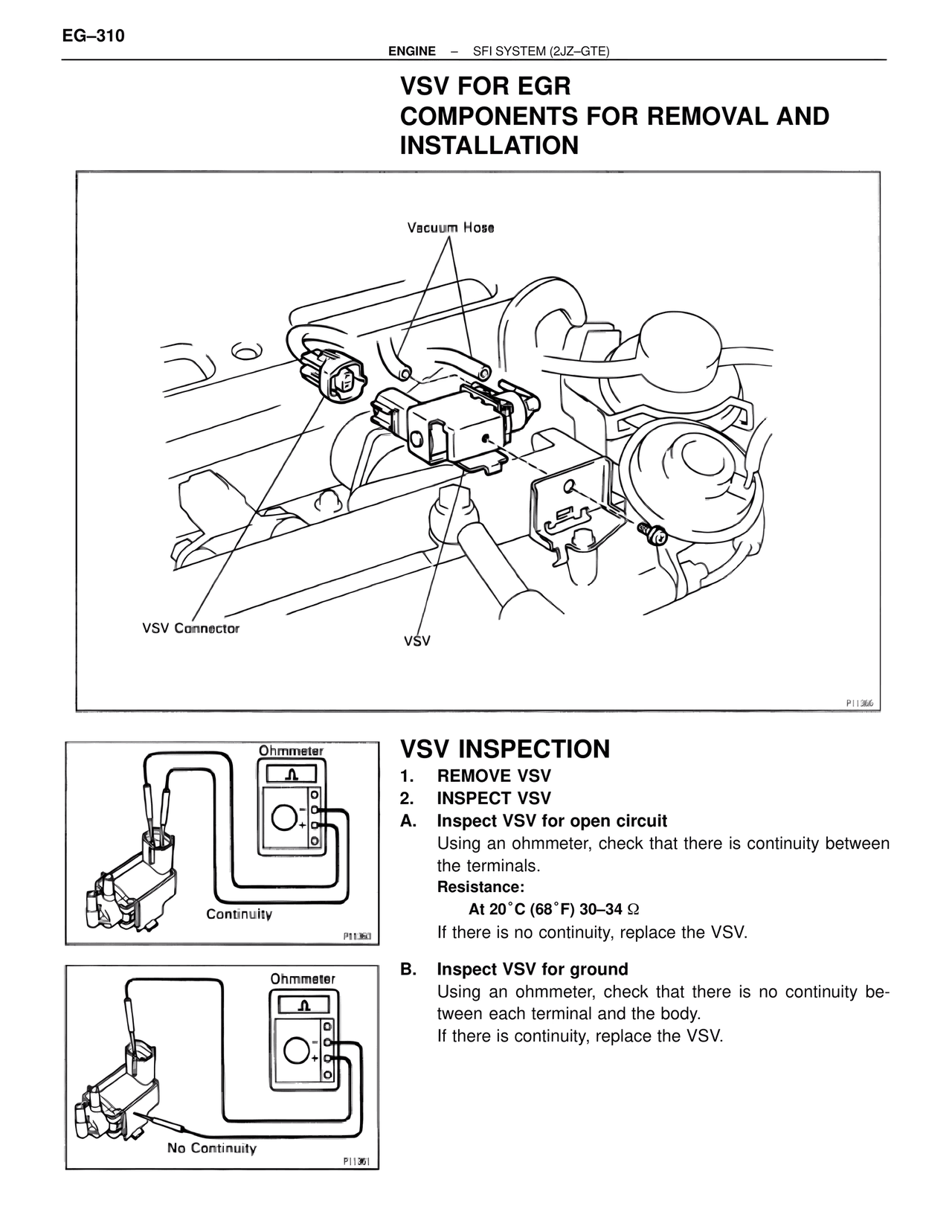

SFTE/SFI System 2JZ-GTE — VSV for EGR Components for Removal and Installation, page 53

EG–310

ENGINE – SFI SYSTEM (2JZ–GTE)

VSV FOR EGR
COMPONENTS FOR REMOVAL AND
INSTALLATION

Vacuum Hose

VSV Connector

VSV

P11366

Ohmmeter

Continuity

P11360

VSV INSPECTION
1. REMOVE VSV
2. INSPECT VSV
A. Inspect VSV for open circuit
Using an ohmmeter, check that there is continuity between
the terminals.
Resistance:
At 20°C (68°F) 30–34 Ω
If there is no continuity, replace the VSV.

Ohmmeter

No Continuity

P11361

B. Inspect VSV for ground
Using an ohmmeter, check that there is no continuity be-
tween each terminal and the body.
If there is continuity, replace the VSV.
