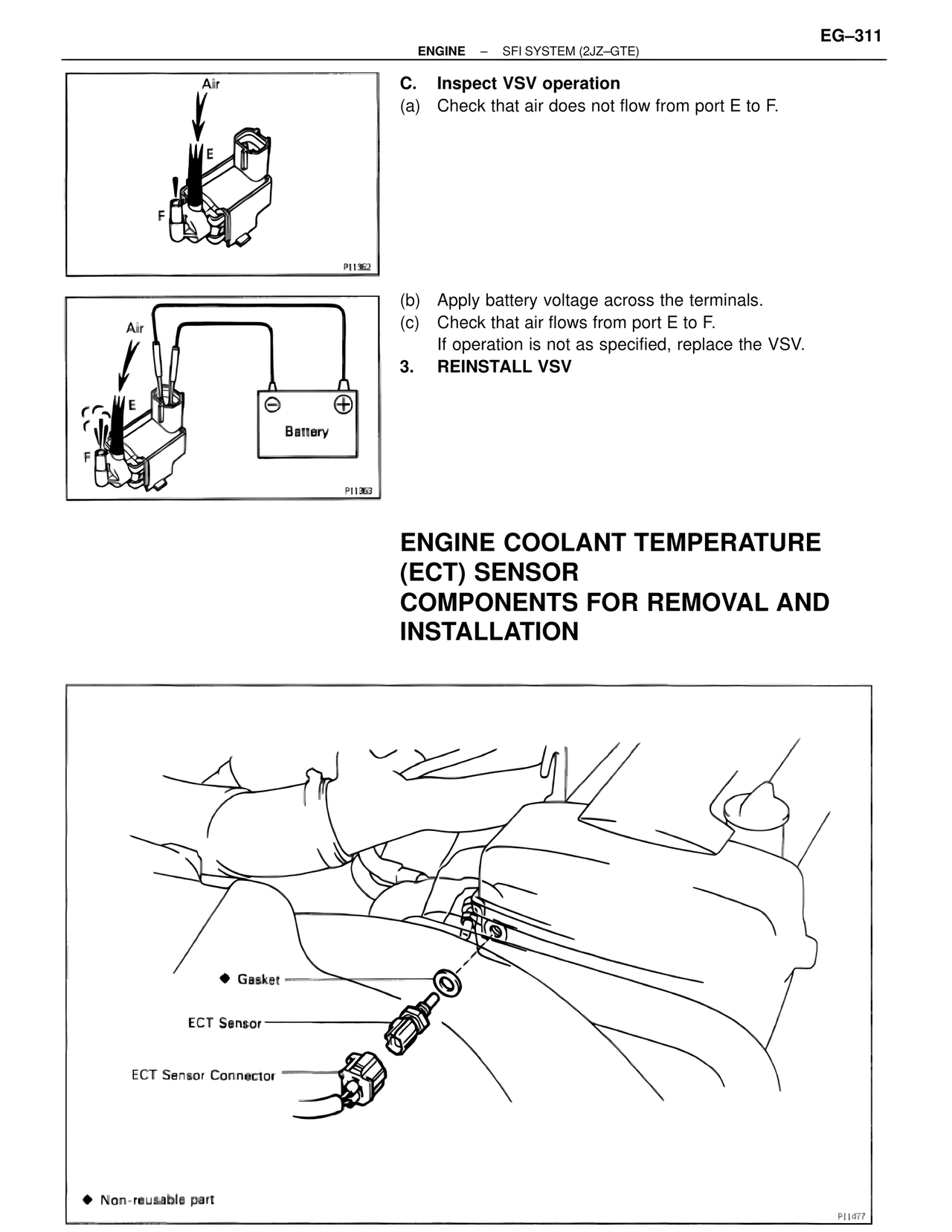

EG–311
ENGINE – SFI SYSTEM (2JZ–GTE)

Air
E
F
P11362

C. Inspect VSV operation
(a) Check that air does not flow from port E to F.

Air
E
F
Battery
P11363

(b) Apply battery voltage across the terminals.
(c) Check that air flows from port E to F.
If operation is not as specified, replace the VSV.
3. REINSTALL VSV

ENGINE COOLANT TEMPERATURE
(ECT) SENSOR
COMPONENTS FOR REMOVAL AND
INSTALLATION

♦ Gasket
ECT Sensor
ECT Sensor Connector

♦ Non-reusable part
P11477
