EG–313
ENGINE – SFI SYSTEM (2JZ–GTE)

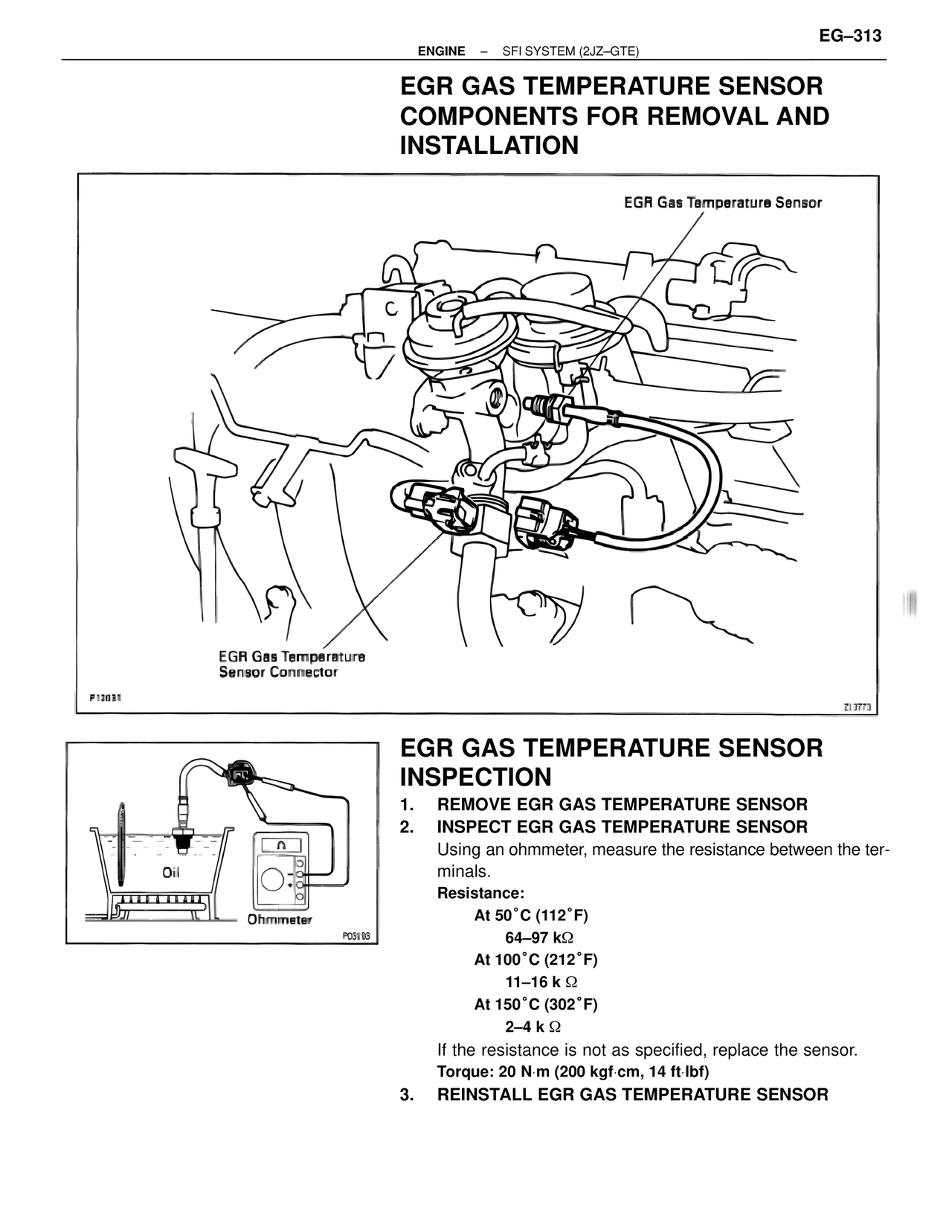

EGR GAS TEMPERATURE SENSOR COMPONENTS FOR REMOVAL AND INSTALLATION

EGR Gas Temperature Sensor

EGR Gas Temperature Sensor Connector

P12031
Zl3773

EGR GAS TEMPERATURE SENSOR INSPECTION

1. REMOVE EGR GAS TEMPERATURE SENSOR
2. INSPECT EGR GAS TEMPERATURE SENSOR
Using an ohmmeter, measure the resistance between the terminals.
Resistance:
 At 50˚C (112˚F)
  64–97 kΩ
 At 100˚C (212˚F)
  11–16 kΩ
 At 150˚C (302˚F)
  2–4 kΩ
If the resistance is not as specified, replace the sensor.
Torque: 20 N·m (200 kgf·cm, 14 ft·lbf)
3. REINSTALL EGR GAS TEMPERATURE SENSOR

Oil
Ohmmeter
P09198
