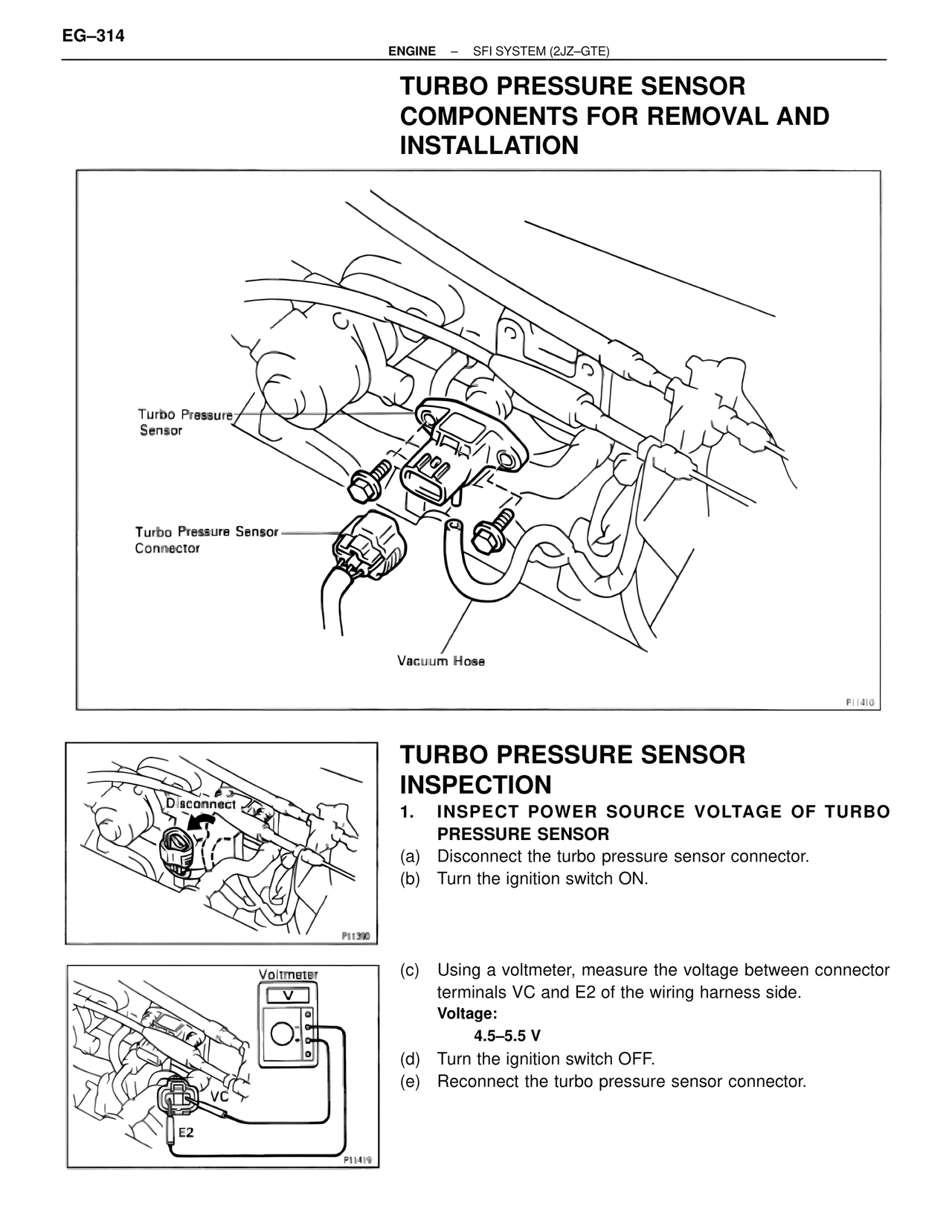

EG–314

ENGINE – SFI SYSTEM (2JZ–GTE)

TURBO PRESSURE SENSOR
COMPONENTS FOR REMOVAL AND
INSTALLATION

Turbo Pressure
Sensor

Turbo Pressure Sensor
Connector

Vacuum Hose

P11410

Disconnect

P11390

TURBO PRESSURE SENSOR
INSPECTION

1. INSPECT POWER SOURCE VOLTAGE OF TURBO
PRESSURE SENSOR
(a) Disconnect the turbo pressure sensor connector.
(b) Turn the ignition switch ON.

Voltmeter
V

(c) Using a voltmeter, measure the voltage between connector
terminals VC and E2 of the wiring harness side.
Voltage:
4.5–5.5 V
(d) Turn the ignition switch OFF.
(e) Reconnect the turbo pressure sensor connector.

VC

E2

P11419
