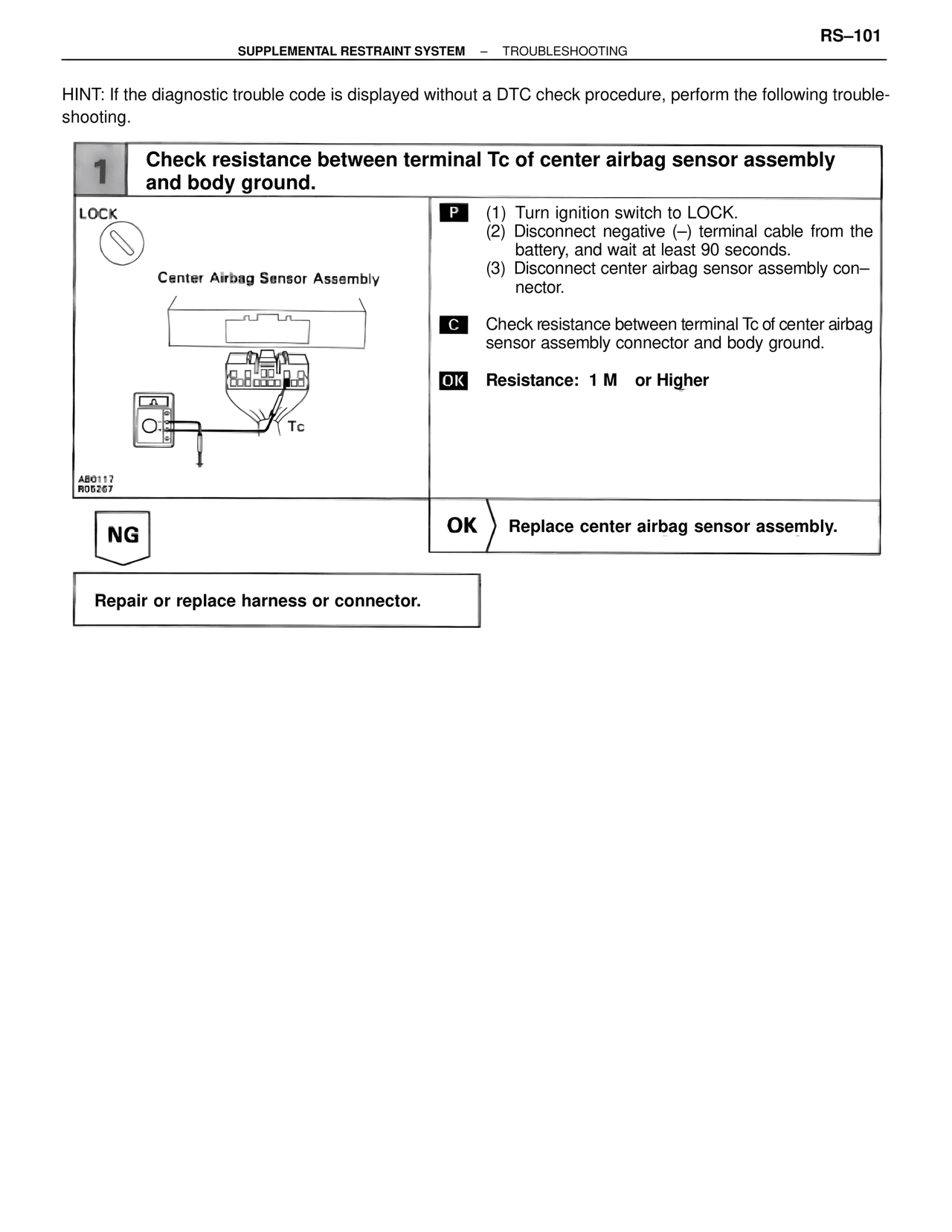

RS–101
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
HINT: If the diagnostic trouble code is displayed without a DTC check procedure, perform the following trouble-shooting.
1 Check resistance between terminal Tc of center airbag sensor assembly and body ground.
LOCK
Center Airbag Sensor Assembly
Tc
AB0117
R00267
P (1) Turn ignition switch to LOCK.
(2) Disconnect negative (–) terminal cable from the battery, and wait at least 90 seconds.
(3) Disconnect center airbag sensor assembly connector.
C Check resistance between terminal Tc of center airbag sensor assembly connector and body ground.
OK Resistance: 1 M or Higher
NG
OK Replace center airbag sensor assembly.
Repair or replace harness or connector.
