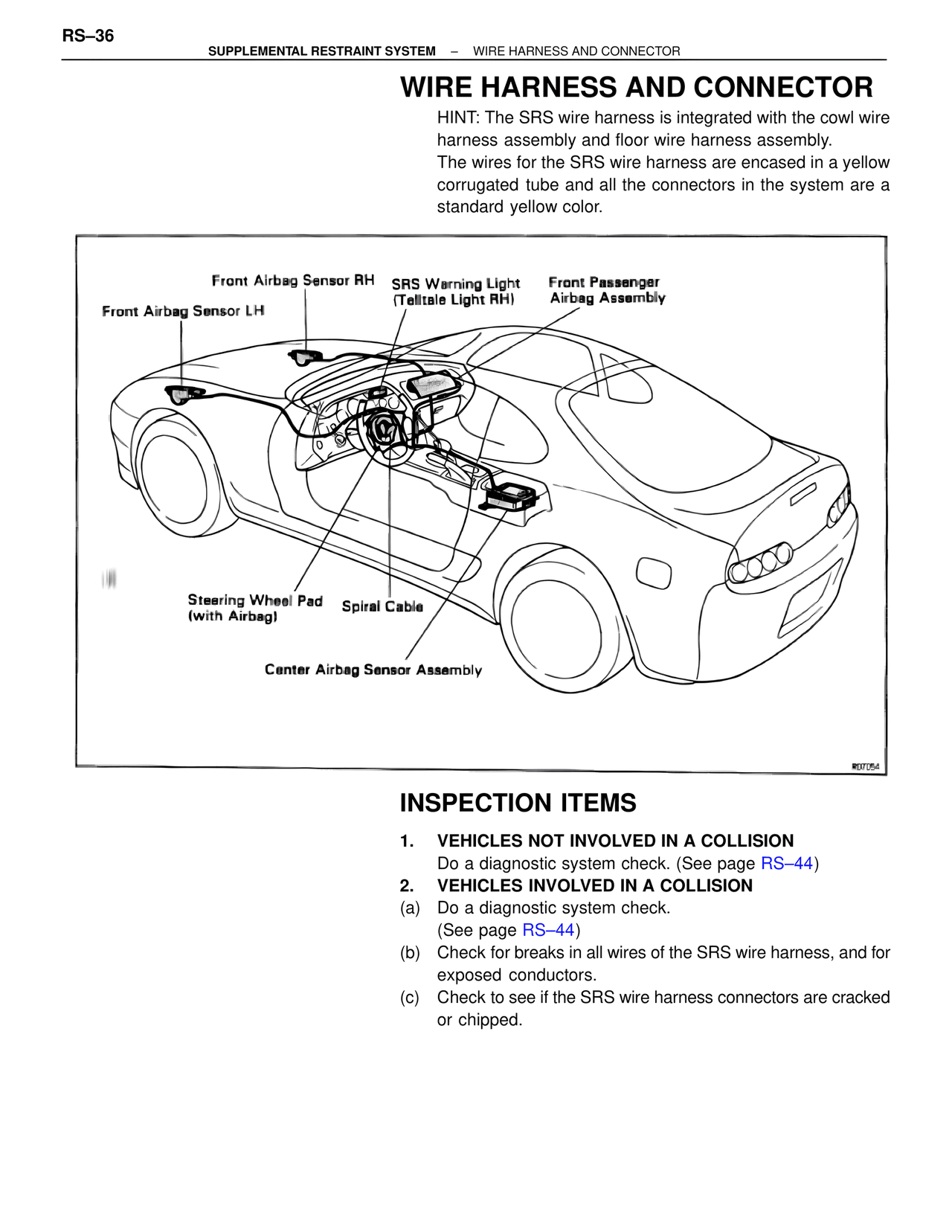

SUPPLEMENTAL RESTRAINT SYSTEM – WIRE HARNESS AND CONNECTOR
WIRE HARNESS AND CONNECTOR
HINT: The SRS wire harness is integrated with the cowl wire
harness assembly and floor wire harness assembly.
The wires for the SRS wire harness are encased in a yellow
corrugated tube and all the connectors in the system are a
standard yellow color.
Front Airbag Sensor LH
Front Airbag Sensor RH
SRS Warning Light
(Telltale Light RH)
Front Passenger
Airbag Assembly
Steering Wheel Pad
(with Airbag)
Spiral Cable
Center Airbag Sensor Assembly
R07054
INSPECTION ITEMS
1. VEHICLES NOT INVOLVED IN A COLLISION
Do a diagnostic system check. (See page RS–44)
2. VEHICLES INVOLVED IN A COLLISION
(a) Do a diagnostic system check.
(See page RS–44)
(b) Check for breaks in all wires of the SRS wire harness, and for
exposed conductors.
(c) Check to see if the SRS wire harness connectors are cracked
or chipped.
