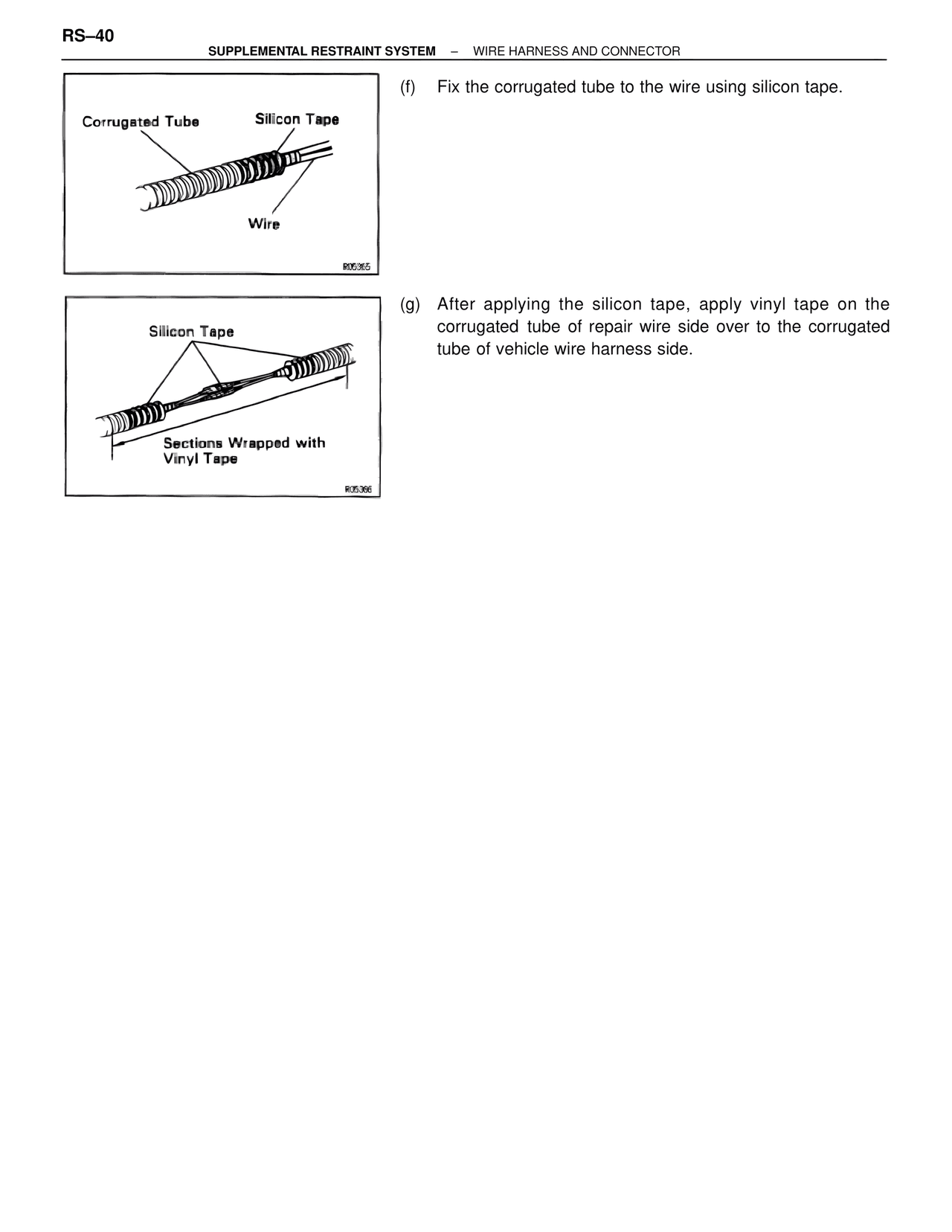

RS–40 SUPPLEMENTAL RESTRAINT SYSTEM – WIRE HARNESS AND CONNECTOR Corrugated Tube Silicon Tape Wire R05365 (f) Fix the corrugated tube to the wire using silicon tape. Silicon Tape Sections Wrapped with Vinyl Tape R05366 (g) After applying the silicon tape, apply vinyl tape on the corrugated tube of repair wire side over to the corrugated tube of vehicle wire harness side.
