SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

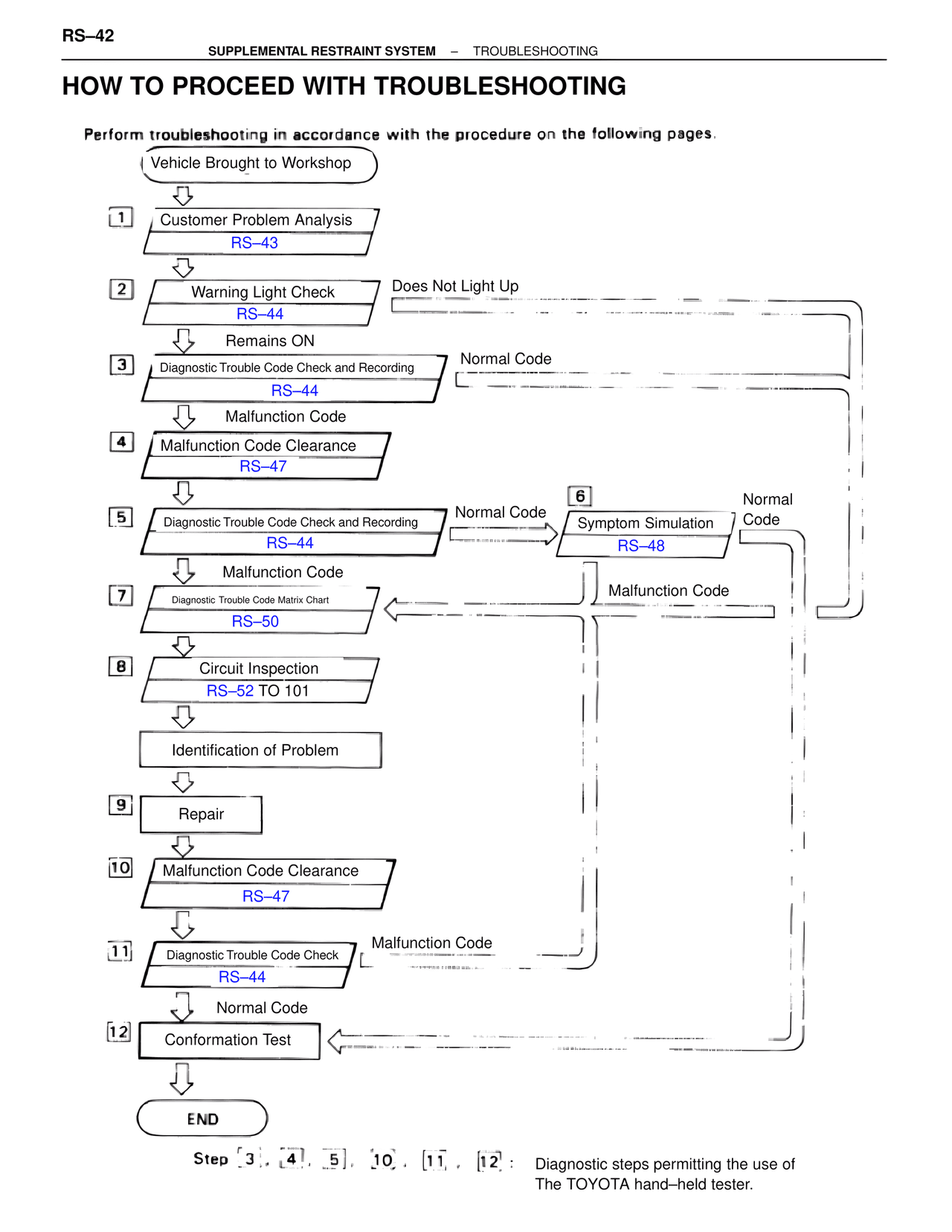

HOW TO PROCEED WITH TROUBLESHOOTING

Perform troubleshooting in accordance with the procedure on the following pages.

Vehicle Brought to Workshop

1  Customer Problem Analysis
   RS–43

2  Warning Light Check          Does Not Light Up
   RS–44

   Remains ON

3  Diagnostic Trouble Code Check and Recording     Normal Code
   RS–44

   Malfunction Code

4  Malfunction Code Clearance
   RS–47

5  Diagnostic Trouble Code Check and Recording     Normal Code     6  Symptom Simulation     Normal Code
   RS–44                                                              RS–48

   Malfunction Code                                  Malfunction Code

7  Diagnostic Trouble Code Matrix Chart
   RS–50

8  Circuit Inspection
   RS–52 TO 101

   Identification of Problem

9  Repair

10  Malfunction Code Clearance
    RS–47

11  Diagnostic Trouble Code Check     Malfunction Code
    RS–44

    Normal Code

12  Conformation Test

END

Step 3 , 4 , 5 , 10 , 11 , 12 :    Diagnostic steps permitting the use of
                                    The TOYOTA hand–held tester.
