SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

RS–43

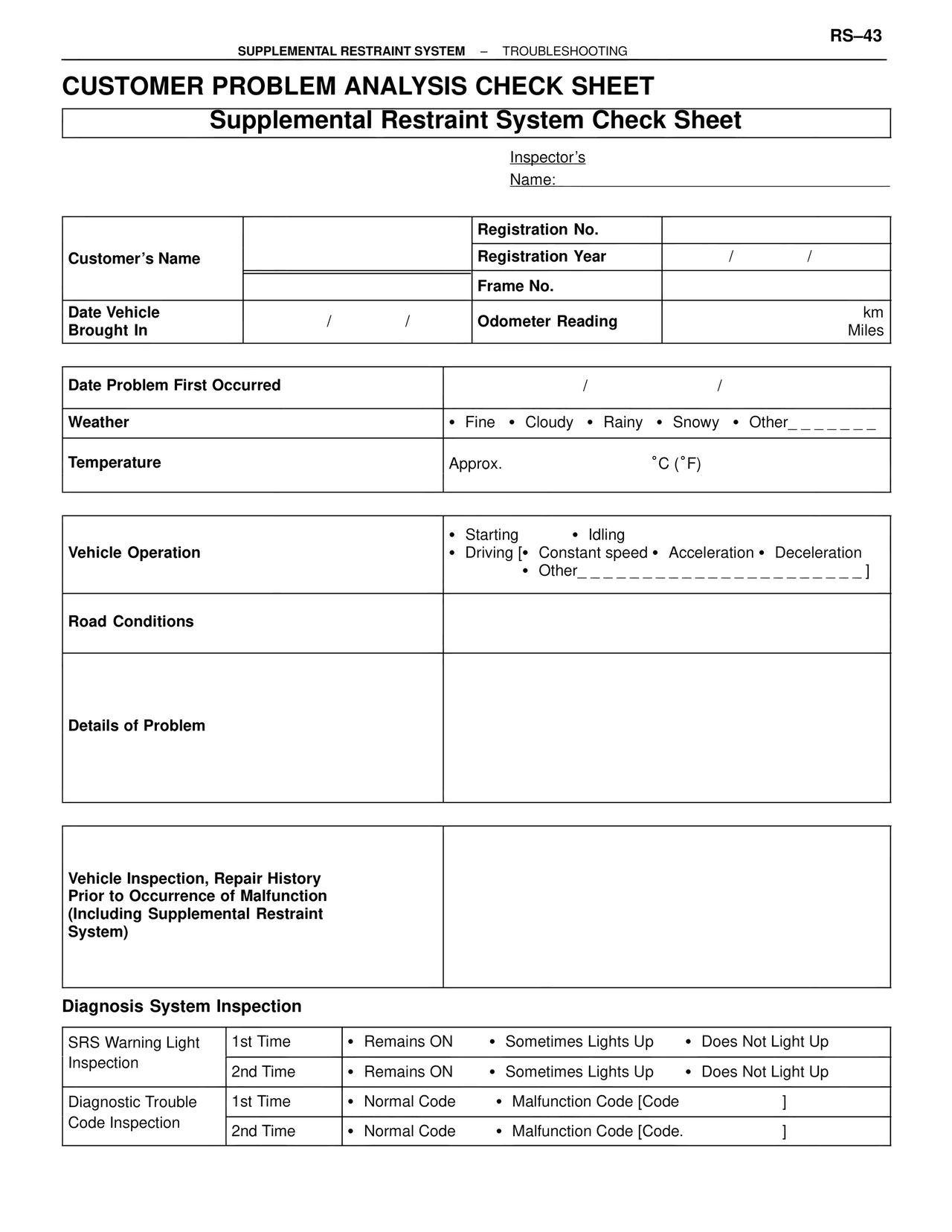

CUSTOMER PROBLEM ANALYSIS CHECK SHEET
Supplemental Restraint System Check Sheet

Inspector's
Name:

Customer's Name

Registration No.
Registration Year          /          /
Frame No.

Date Vehicle
Brought In          /          /
Odometer Reading          km
Miles

Date Problem First Occurred          /          /

Weather     • Fine  • Cloudy  • Rainy  • Snowy  • Other_______

Temperature     Approx.          °C (°F)

Vehicle Operation
• Starting     • Idling
• Driving [• Constant speed • Acceleration • Deceleration
• Other_______________________]

Road Conditions

Details of Problem

Vehicle Inspection, Repair History
Prior to Occurrence of Malfunction
(Including Supplemental Restraint
System)

Diagnosis System Inspection

SRS Warning Light
Inspection
1st Time     • Remains ON     • Sometimes Lights Up     • Does Not Light Up
2nd Time     • Remains ON     • Sometimes Lights Up     • Does Not Light Up

Diagnostic Trouble
Code Inspection
1st Time     • Normal Code     • Malfunction Code [Code          ]
2nd Time     • Normal Code     • Malfunction Code [Code.          ]
