RS–51

SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

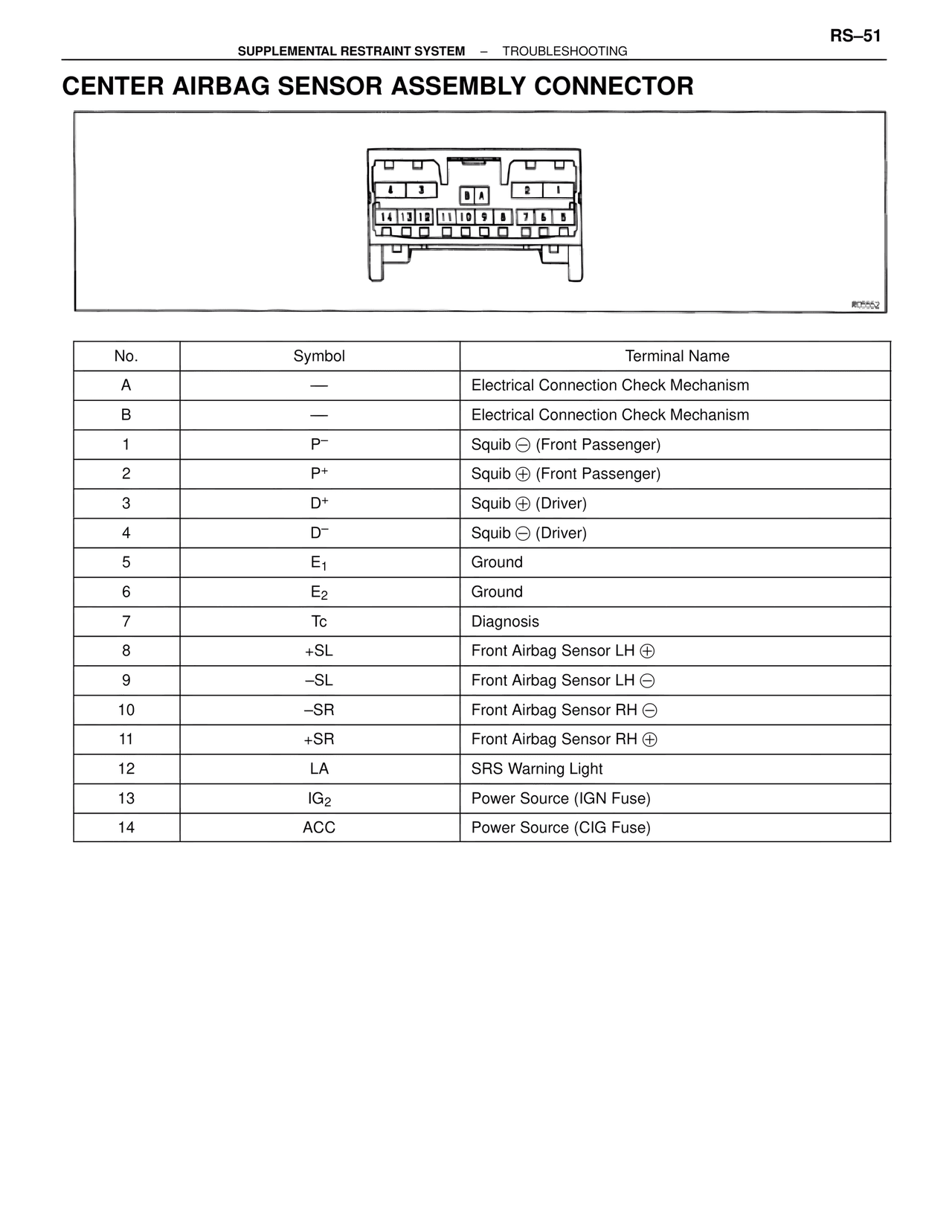

CENTER AIRBAG SENSOR ASSEMBLY CONNECTOR

4  3    B A    2  1
14 13 12  11 10  9  8  7  6  5

No.    Symbol    Terminal Name
A    —    Electrical Connection Check Mechanism
B    —    Electrical Connection Check Mechanism
1    P–    Squib ⊖ (Front Passenger)
2    P+    Squib ⊕ (Front Passenger)
3    D+    Squib ⊕ (Driver)
4    D–    Squib ⊖ (Driver)
5    E1    Ground
6    E2    Ground
7    Tc    Diagnosis
8    +SL    Front Airbag Sensor LH ⊕
9    –SL    Front Airbag Sensor LH ⊖
10    –SR    Front Airbag Sensor RH ⊖
11    +SR    Front Airbag Sensor RH ⊕
12    LA    SRS Warning Light
13    IG2    Power Source (IGN Fuse)
14    ACC    Power Source (CIG Fuse)
