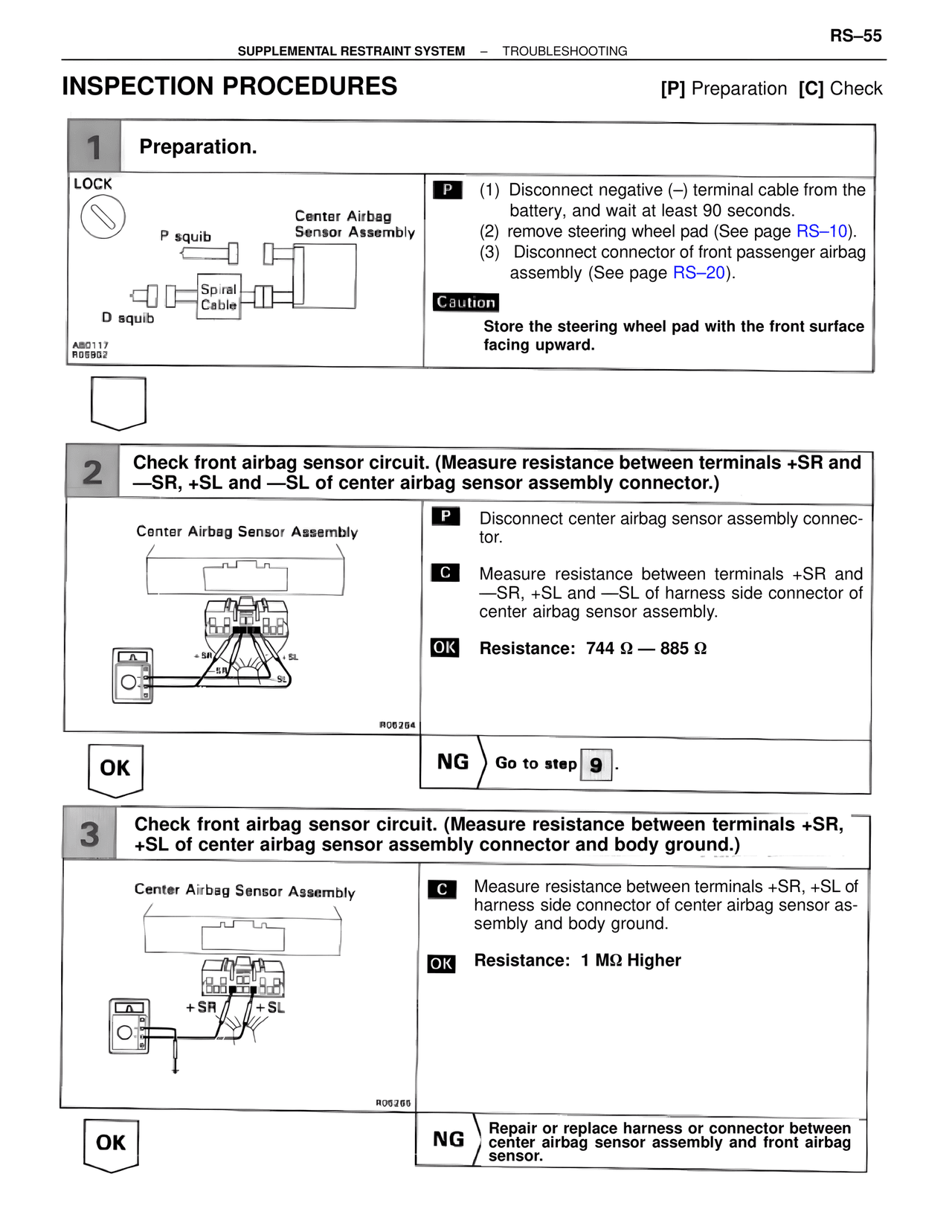

SRS/Supplemental Restraint System — Inspection Procedures, page 55

RS–55
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

INSPECTION PROCEDURES
[P] Preparation [C] Check

1 Preparation.

LOCK
P squib
Center Airbag
Sensor Assembly
Spiral
Cable
D squib
AB0117
R05902

P (1) Disconnect negative (–) terminal cable from the
battery, and wait at least 90 seconds.
(2) remove steering wheel pad (See page RS–10).
(3) Disconnect connector of front passenger airbag
assembly (See page RS–20).

Caution
Store the steering wheel pad with the front surface
facing upward.

2 Check front airbag sensor circuit. (Measure resistance between terminals +SR and
—SR, +SL and —SL of center airbag sensor assembly connector.)

Center Airbag Sensor Assembly
+SR +SL
-SR -SL
R06264

P Disconnect center airbag sensor assembly connector.

C Measure resistance between terminals +SR and
—SR, +SL and —SL of harness side connector of
center airbag sensor assembly.

OK Resistance: 744 Ω — 885 Ω

OK NG Go to step 9 .

3 Check front airbag sensor circuit. (Measure resistance between terminals +SR,
+SL of center airbag sensor assembly connector and body ground.)

Center Airbag Sensor Assembly
+SR +SL
R06265

C Measure resistance between terminals +SR, +SL of
harness side connector of center airbag sensor as-
sembly and body ground.

OK Resistance: 1 MΩ Higher

OK NG Repair or replace harness or connector between
center airbag sensor assembly and front airbag
sensor.
