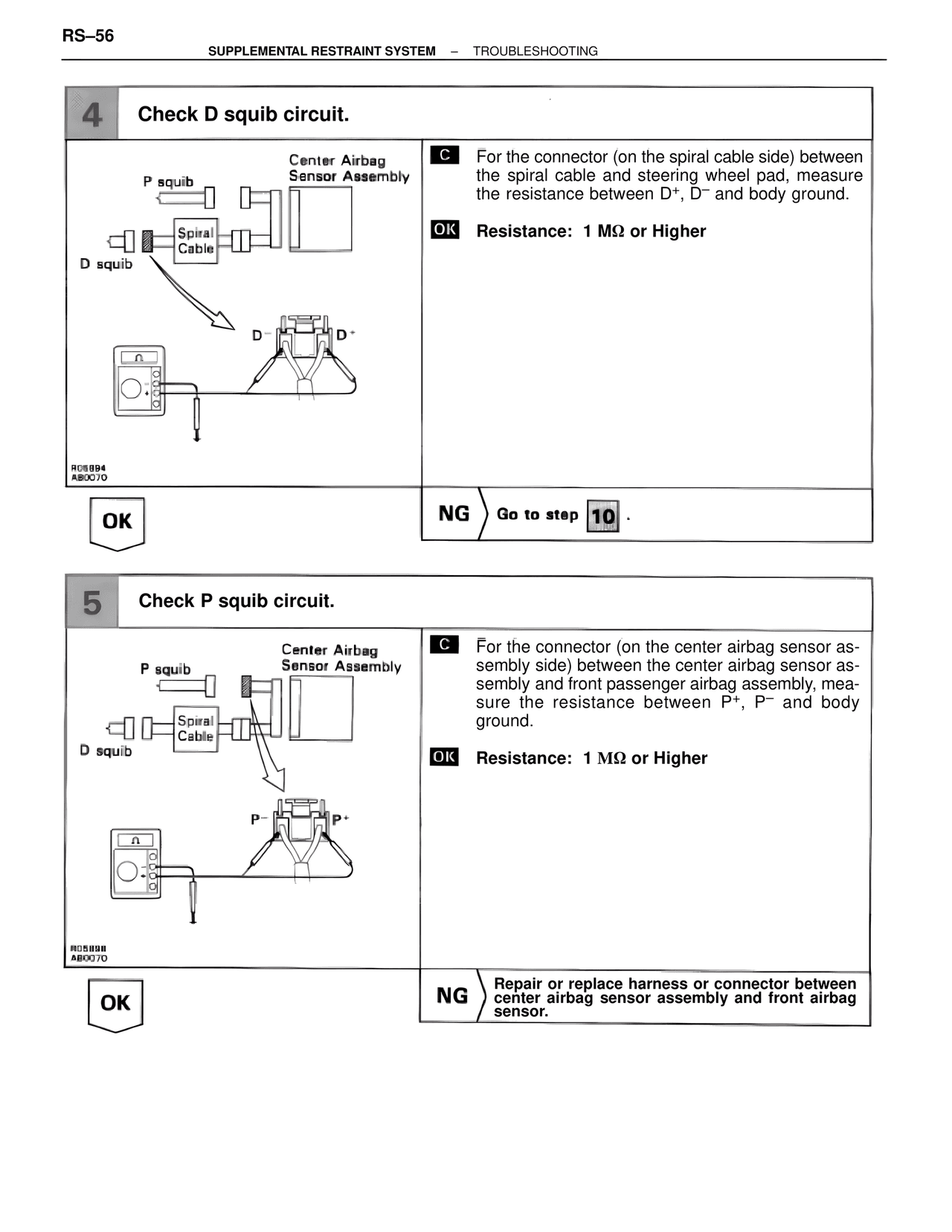

SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
4 Check D squib circuit.
Center Airbag
P squib Sensor Assembly
Spiral
Cable
D squib
D– D+
R06894
AB0070
C For the connector (on the spiral cable side) between the spiral cable and steering wheel pad, measure the resistance between D+, D– and body ground.
OK Resistance: 1 MΩ or Higher
OK
NG Go to step 10 .
5 Check P squib circuit.
Center Airbag
P squib Sensor Assembly
Spiral
Cable
D squib
P– P+
R05898
AB0070
C For the connector (on the center airbag sensor assembly side) between the center airbag sensor assembly and front passenger airbag assembly, measure the resistance between P+, P– and body ground.
OK Resistance: 1 MΩ or Higher
OK
NG Repair or replace harness or connector between center airbag sensor assembly and front airbag sensor.
