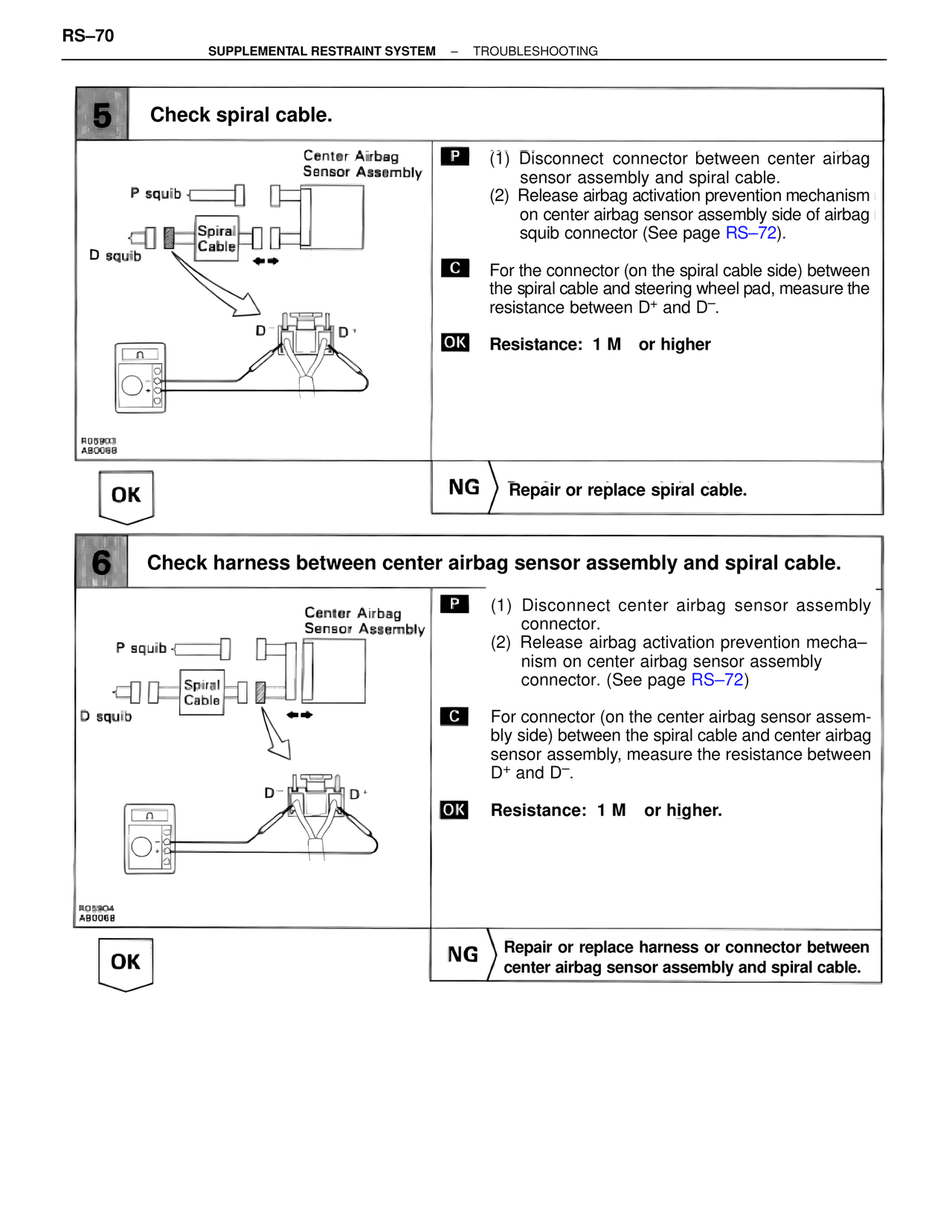

RS–70
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
5 Check spiral cable.
Center Airbag
Sensor Assembly
P squib
Spiral
Cable
D squib
D– D+
RD5903
AB0068
P (1) Disconnect connector between center airbag
sensor assembly and spiral cable.
(2) Release airbag activation prevention mechanism
on center airbag sensor assembly side of airbag
squib connector (See page RS–72).
C For the connector (on the spiral cable side) between
the spiral cable and steering wheel pad, measure the
resistance between D+ and D–.
OK Resistance: 1 M or higher
OK NG Repair or replace spiral cable.
6 Check harness between center airbag sensor assembly and spiral cable.
Center Airbag
Sensor Assembly
P squib
Spiral
Cable
D squib
D– D+
RD5904
AB0068
P (1) Disconnect center airbag sensor assembly
connector.
(2) Release airbag activation prevention mecha–
nism on center airbag sensor assembly
connector. (See page RS–72)
C For connector (on the center airbag sensor assem-
bly side) between the spiral cable and center airbag
sensor assembly, measure the resistance between
D+ and D–.
OK Resistance: 1 M or higher.
OK NG Repair or replace harness or connector between
center airbag sensor assembly and spiral cable.
