RS–71

SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

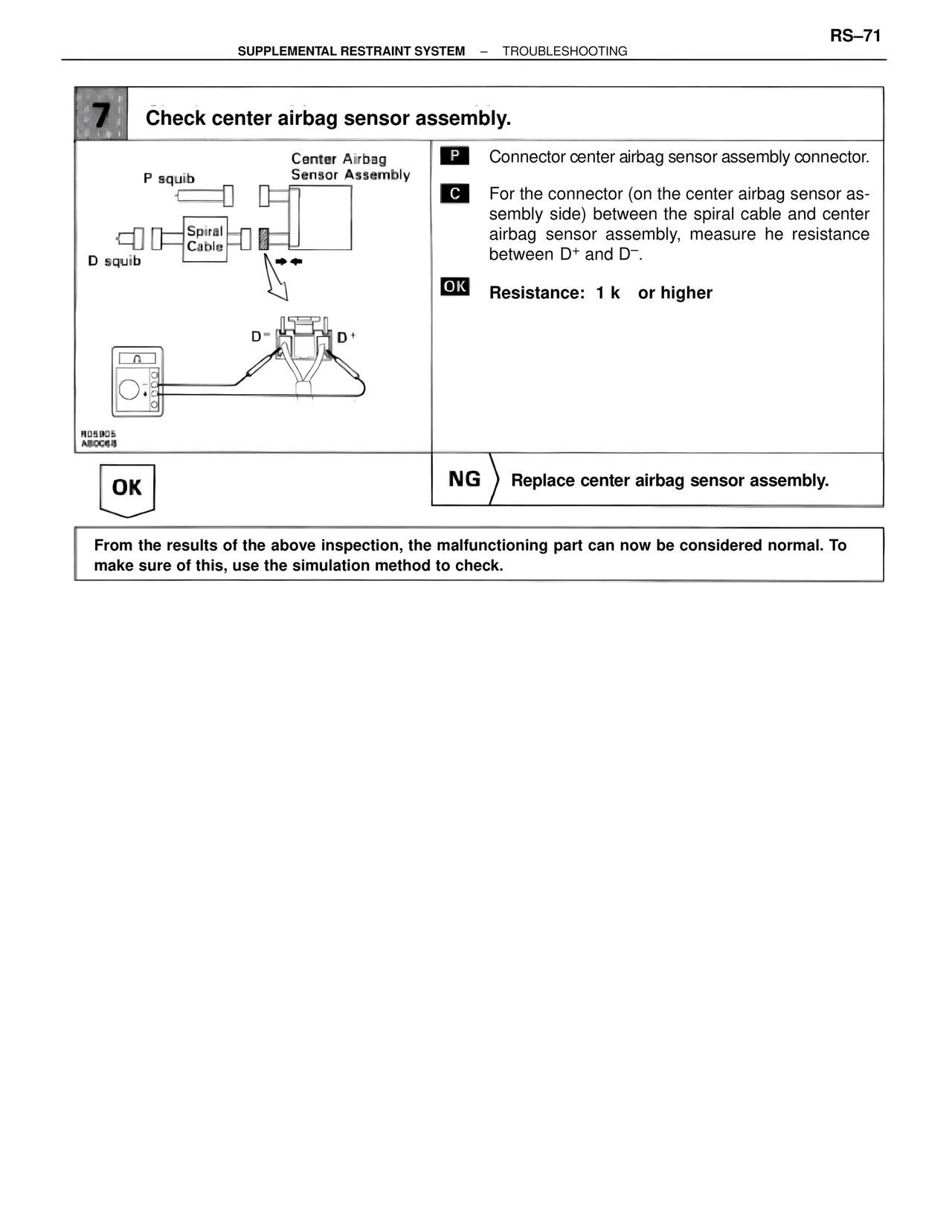

7  Check center airbag sensor assembly.

Center Airbag
Sensor Assembly
P squib

Spiral
Cable

D squib

D–        D+

R05905
A80068

P  Connector center airbag sensor assembly connector.

C  For the connector (on the center airbag sensor assembly side) between the spiral cable and center airbag sensor assembly, measure he resistance between D+ and D–.

OK  Resistance: 1 k    or higher

OK

NG  >  Replace center airbag sensor assembly.

From the results of the above inspection, the malfunctioning part can now be considered normal. To make sure of this, use the simulation method to check.
