SRS/Supplemental Restraint System — Release Method of Airbag Activation Prevention Mechanism, page 72

RS–72
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

RELEASE METHOD OF AIRBAG ACTIVATION PREVENTION MECHANISM

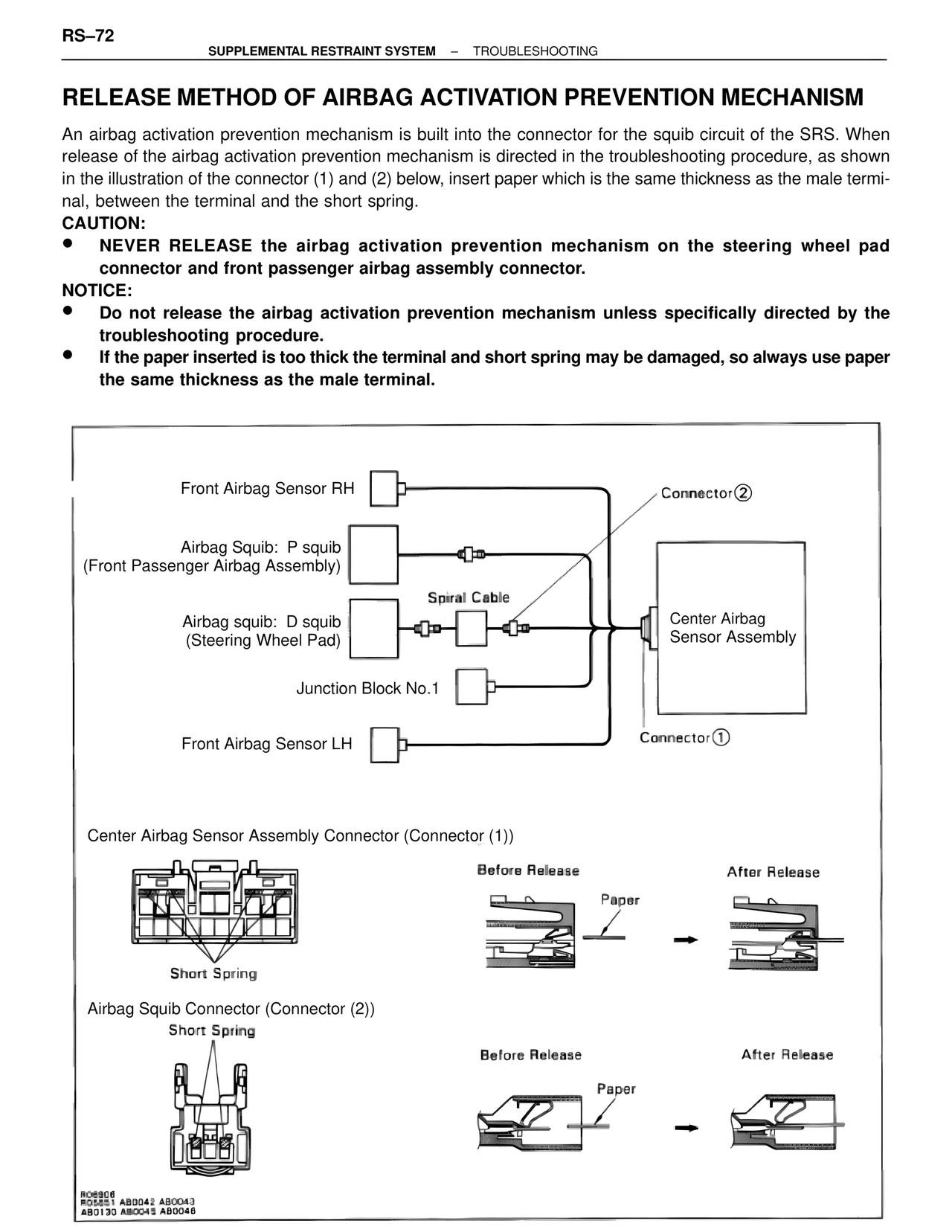

An airbag activation prevention mechanism is built into the connector for the squib circuit of the SRS. When release of the airbag activation prevention mechanism is directed in the troubleshooting procedure, as shown in the illustration of the connector (1) and (2) below, insert paper which is the same thickness as the male terminal, between the terminal and the short spring.
CAUTION:
• NEVER RELEASE the airbag activation prevention mechanism on the steering wheel pad connector and front passenger airbag assembly connector.
NOTICE:
• Do not release the airbag activation prevention mechanism unless specifically directed by the troubleshooting procedure.
• If the paper inserted is too thick the terminal and short spring may be damaged, so always use paper the same thickness as the male terminal.

Front Airbag Sensor RH
Airbag Squib: P squib
(Front Passenger Airbag Assembly)
Spiral Cable
Airbag squib: D squib
(Steering Wheel Pad)
Center Airbag
Sensor Assembly
Junction Block No.1
Connector(2)
Connector(1)
Front Airbag Sensor LH

Center Airbag Sensor Assembly Connector (Connector (1))
Short Spring
Before Release
Paper
After Release

Airbag Squib Connector (Connector (2))
Short Spring
Before Release
Paper
After Release
