SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING

SRS Warning Light System (Always lit up when ignition switch is in Lock position.)

CIRCUIT DESCRIPTION

The SRS warning light is located on the cluster finish panel.
When the SRS is normal, the SRS warning light lights up for approx. 6 seconds after the ignition switch is turned from LOCK position to ACC or ON position, and then turns off automatically.
If there is a malfunction in the SRS, the SRS warning light lights up to inform the driver of the abnormality. When terminals Tc and E1 of the DLC1 or DLC2 are connected, the diagnostic trouble code is displayed by the blinking of the SRS warning light.

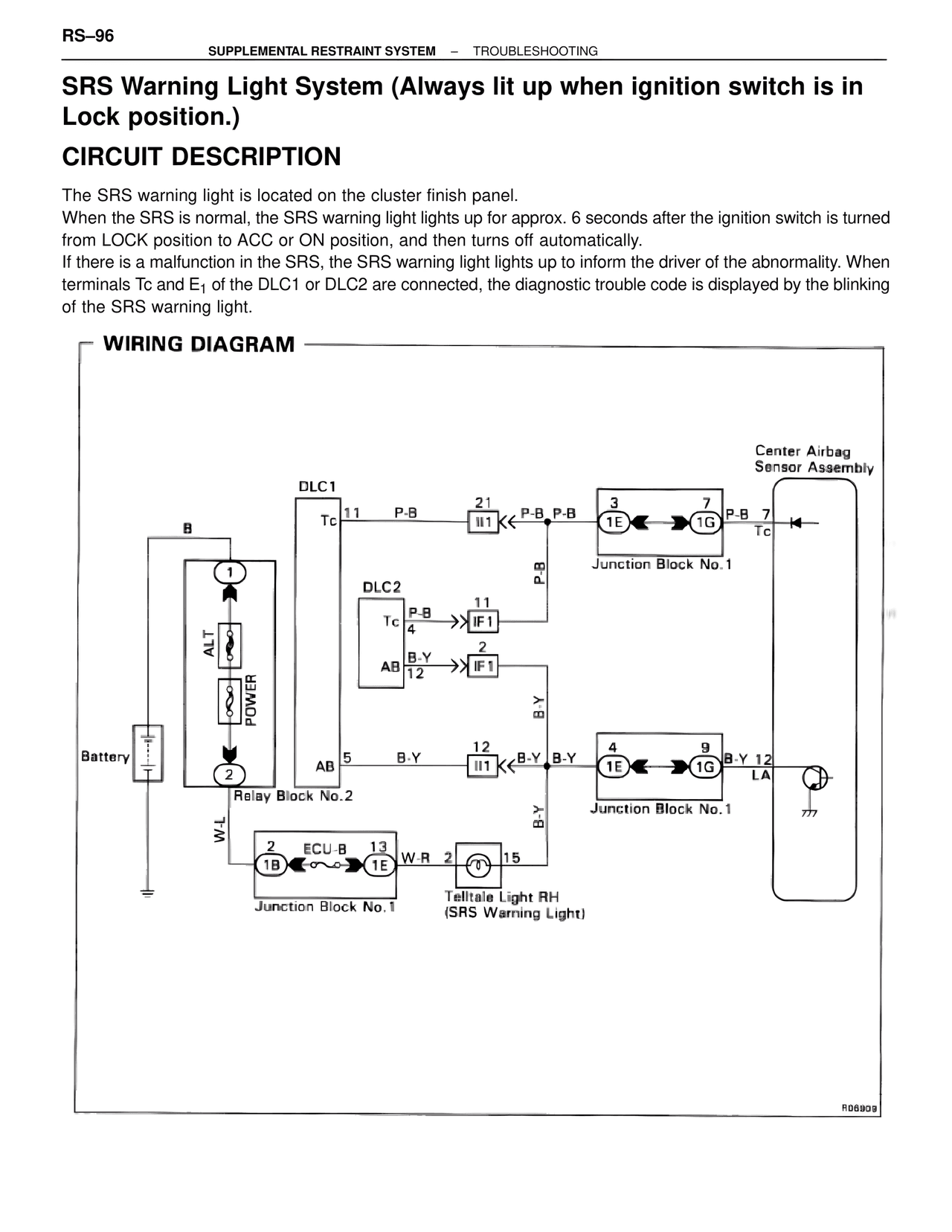

WIRING DIAGRAM

Center Airbag Sensor Assembly

DLC1
Tc  11  P-B  21  P-B  P-B  3  7
                    II1 ←  P-B  1E ← 1G  P-B  7
                                              Tc
B                                Junction Block No. 1

DLC2
Tc  P-B  11
    4    ►► IF1
AB  B-Y  2
    12   ►► IF1

1
ALT
POWER

AB  5  B-Y  12  B-Y  B-Y  4  9
              II1 ←  B-Y  1E ← 1G  B-Y  12
                                         LA
2                              Junction Block No. 1
Relay Block No.2

Battery

W-L
2    ECU-B  13
1B ←  ○~○  1E  W-R  2  ○  15
Junction Block No.1        Telltale Light RH
                           (SRS Warning Light)

R06909
