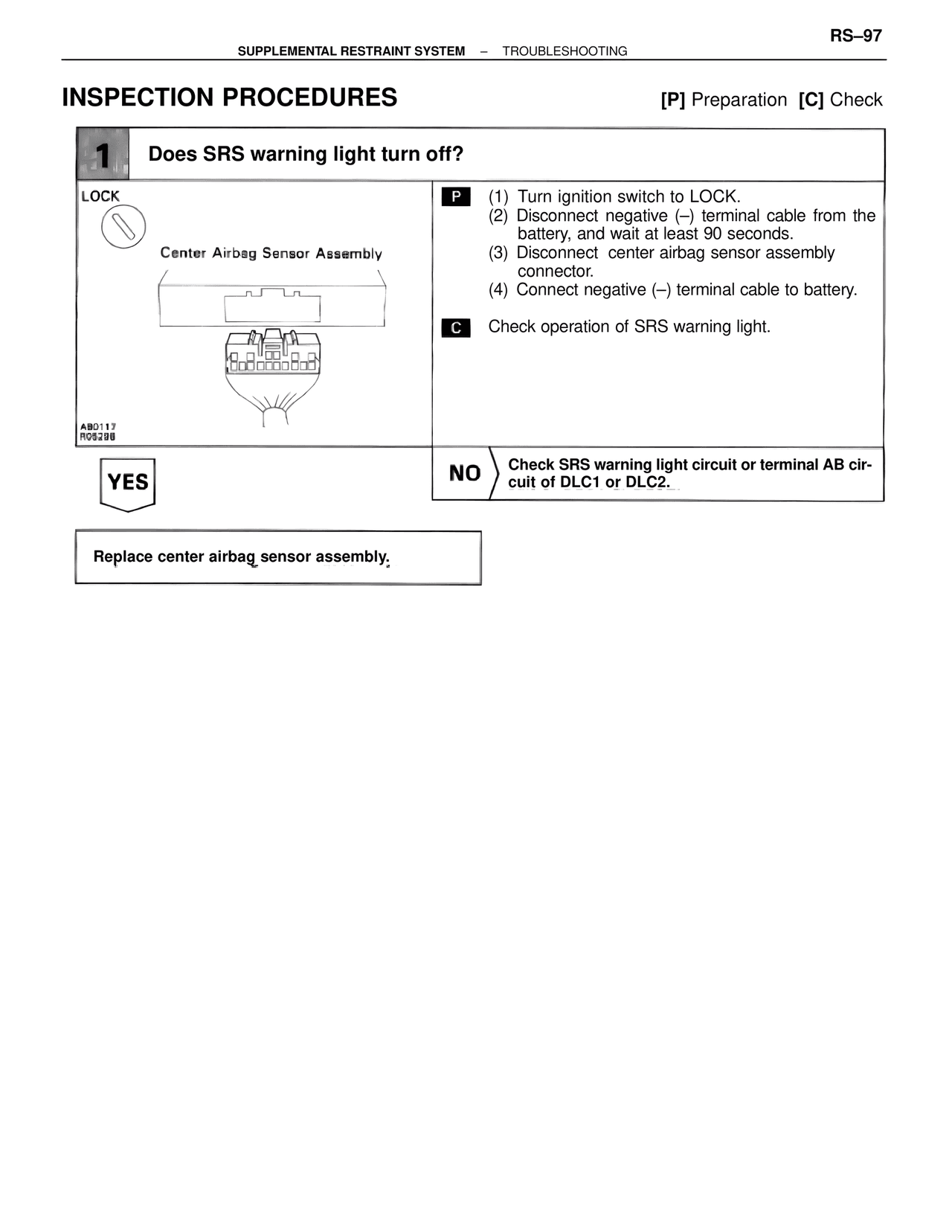

RS–97
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
INSPECTION PROCEDURES
[P] Preparation [C] Check
1 Does SRS warning light turn off?
LOCK
Center Airbag Sensor Assembly
AB0117
RC6298
P (1) Turn ignition switch to LOCK.
(2) Disconnect negative (–) terminal cable from the battery, and wait at least 90 seconds.
(3) Disconnect center airbag sensor assembly connector.
(4) Connect negative (–) terminal cable to battery.
C Check operation of SRS warning light.
YES
NO Check SRS warning light circuit or terminal AB circuit of DLC1 or DLC2.
Replace center airbag sensor assembly.
