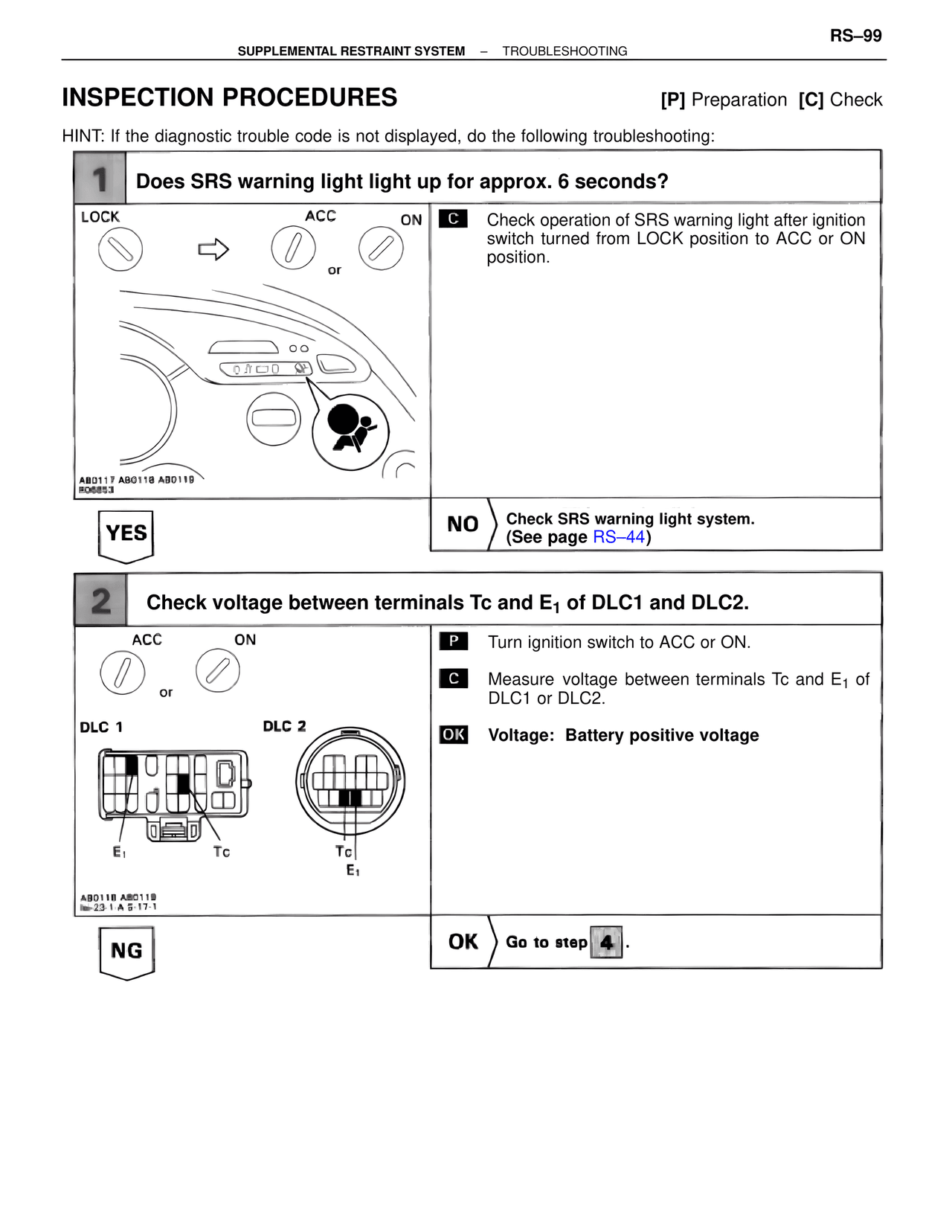

RS–99
SUPPLEMENTAL RESTRAINT SYSTEM – TROUBLESHOOTING
INSPECTION PROCEDURES
[P] Preparation [C] Check
HINT: If the diagnostic trouble code is not displayed, do the following troubleshooting:
1 Does SRS warning light light up for approx. 6 seconds?
LOCK ACC ON
or
AB0117 AB0118 AB0119
RO6803
C Check operation of SRS warning light after ignition switch turned from LOCK position to ACC or ON position.
YES
NO Check SRS warning light system.
(See page RS–44)
2 Check voltage between terminals Tc and E1 of DLC1 and DLC2.
ACC ON
or
DLC 1 DLC 2
E1 Tc Tc
E1
AB0118 AB0119
fa-23-1-A S-17-1
P Turn ignition switch to ACC or ON.
C Measure voltage between terminals Tc and E1 of DLC1 or DLC2.
OK Voltage: Battery positive voltage
NG
OK Go to step 4.
