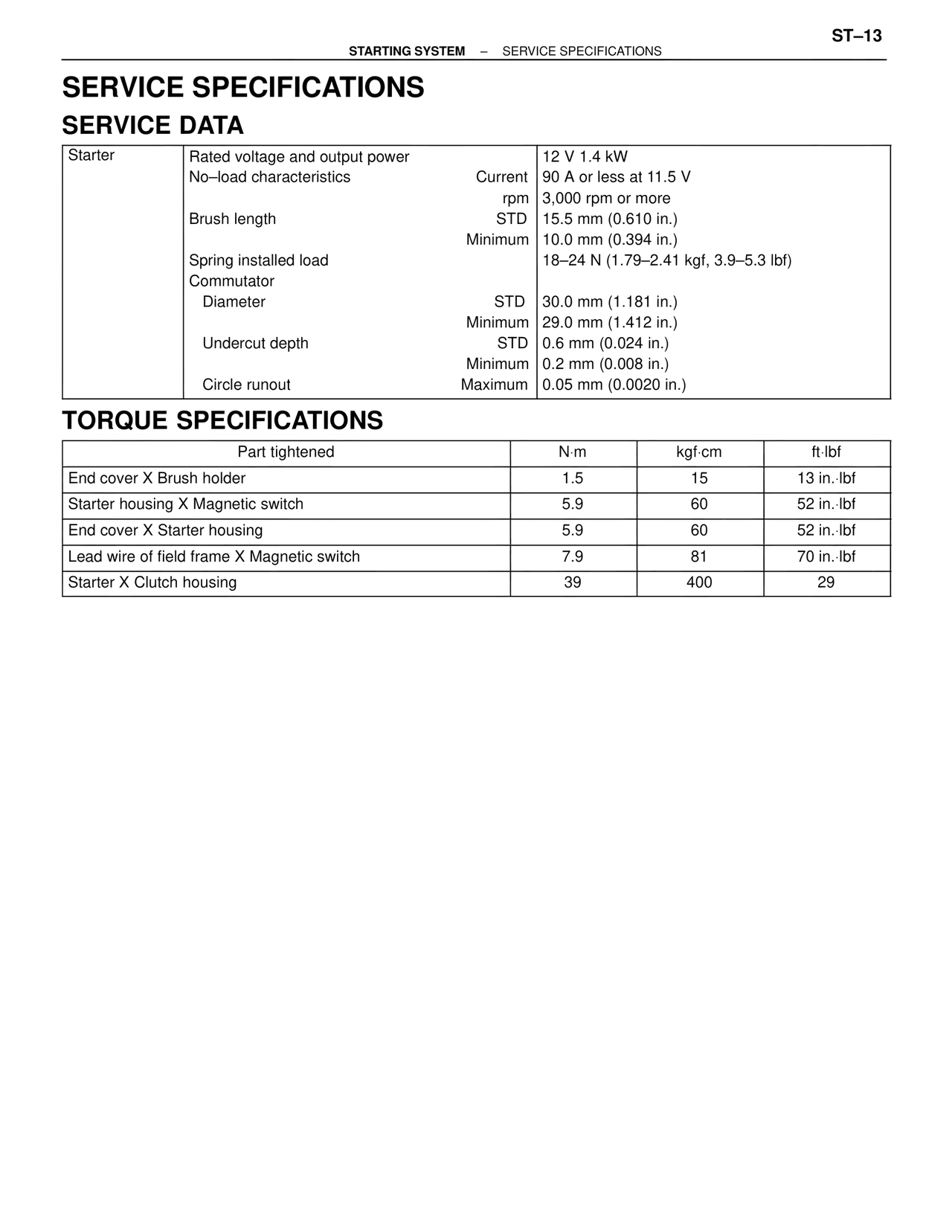

ST–13
STARTING SYSTEM – SERVICE SPECIFICATIONS
SERVICE SPECIFICATIONS
SERVICE DATA
Starter | Rated voltage and output power | 12 V 1.4 kW
No–load characteristics | Current | 90 A or less at 11.5 V
| rpm | 3,000 rpm or more
Brush length | STD | 15.5 mm (0.610 in.)
| Minimum | 10.0 mm (0.394 in.)
Spring installed load | 18–24 N (1.79–2.41 kgf, 3.9–5.3 lbf)
Commutator
Diameter | STD | 30.0 mm (1.181 in.)
| Minimum | 29.0 mm (1.412 in.)
Undercut depth | STD | 0.6 mm (0.024 in.)
| Minimum | 0.2 mm (0.008 in.)
Circle runout | Maximum | 0.05 mm (0.0020 in.)
TORQUE SPECIFICATIONS
Part tightened | N·m | kgf·cm | ft·lbf
End cover X Brush holder | 1.5 | 15 | 13 in.·lbf
Starter housing X Magnetic switch | 5.9 | 60 | 52 in.·lbf
End cover X Starter housing | 5.9 | 60 | 52 in.·lbf
Lead wire of field frame X Magnetic switch | 7.9 | 81 | 70 in.·lbf
Starter X Clutch housing | 39 | 400 | 29
