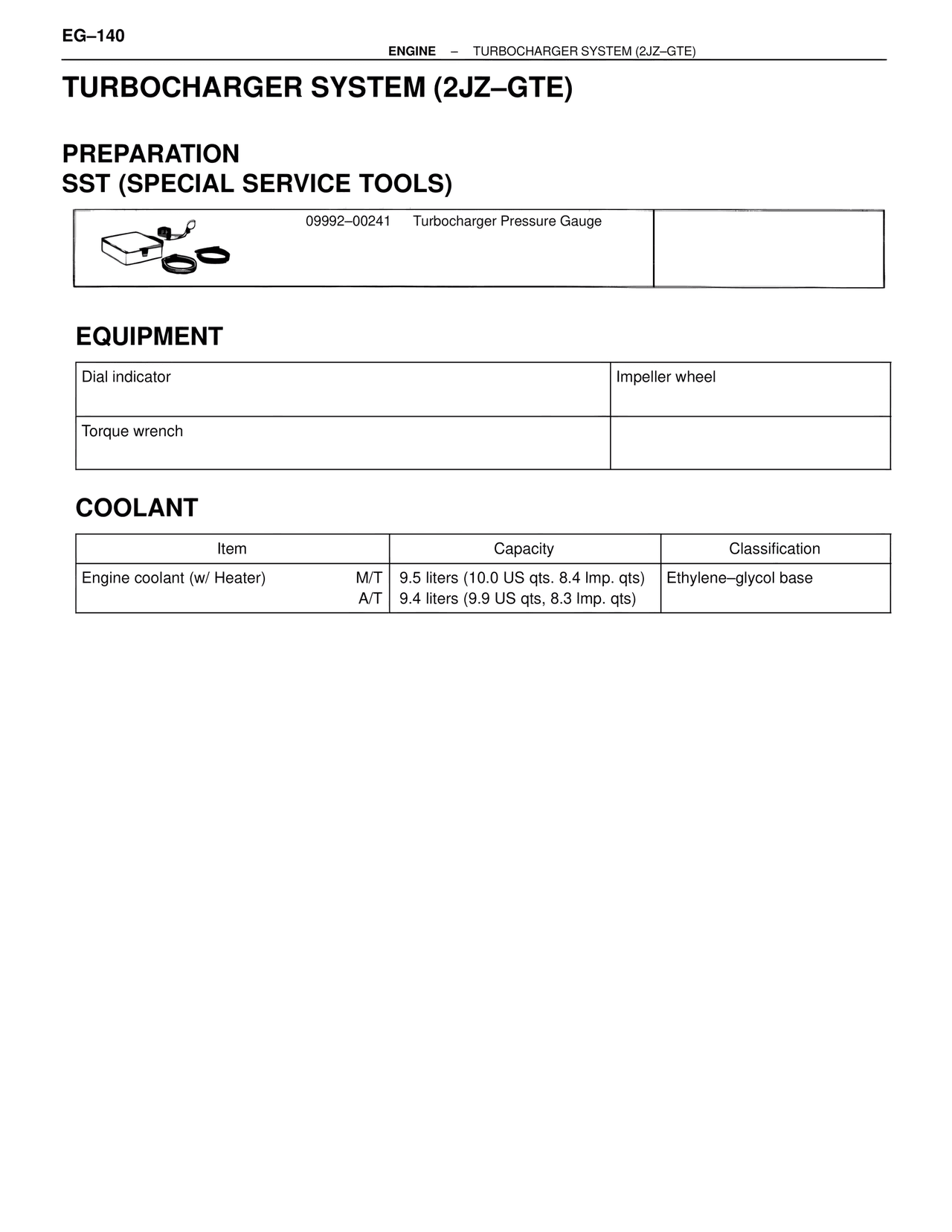

EG–140
ENGINE  –  TURBOCHARGER SYSTEM (2JZ–GTE)

TURBOCHARGER SYSTEM (2JZ–GTE)

PREPARATION
SST (SPECIAL SERVICE TOOLS)

09992–00241    Turbocharger Pressure Gauge

EQUIPMENT

Dial indicator    Impeller wheel

Torque wrench

COOLANT

Item    Capacity    Classification

Engine coolant (w/ Heater)    M/T    9.5 liters (10.0 US qts. 8.4 Imp. qts)    Ethylene–glycol base
                              A/T    9.4 liters (9.9 US qts, 8.3 Imp. qts)
