EG–160

ENGINE – TURBOCHARGER SYSTEM (2JZ–GTE)

CHARGE AIR COOLER (CAC)

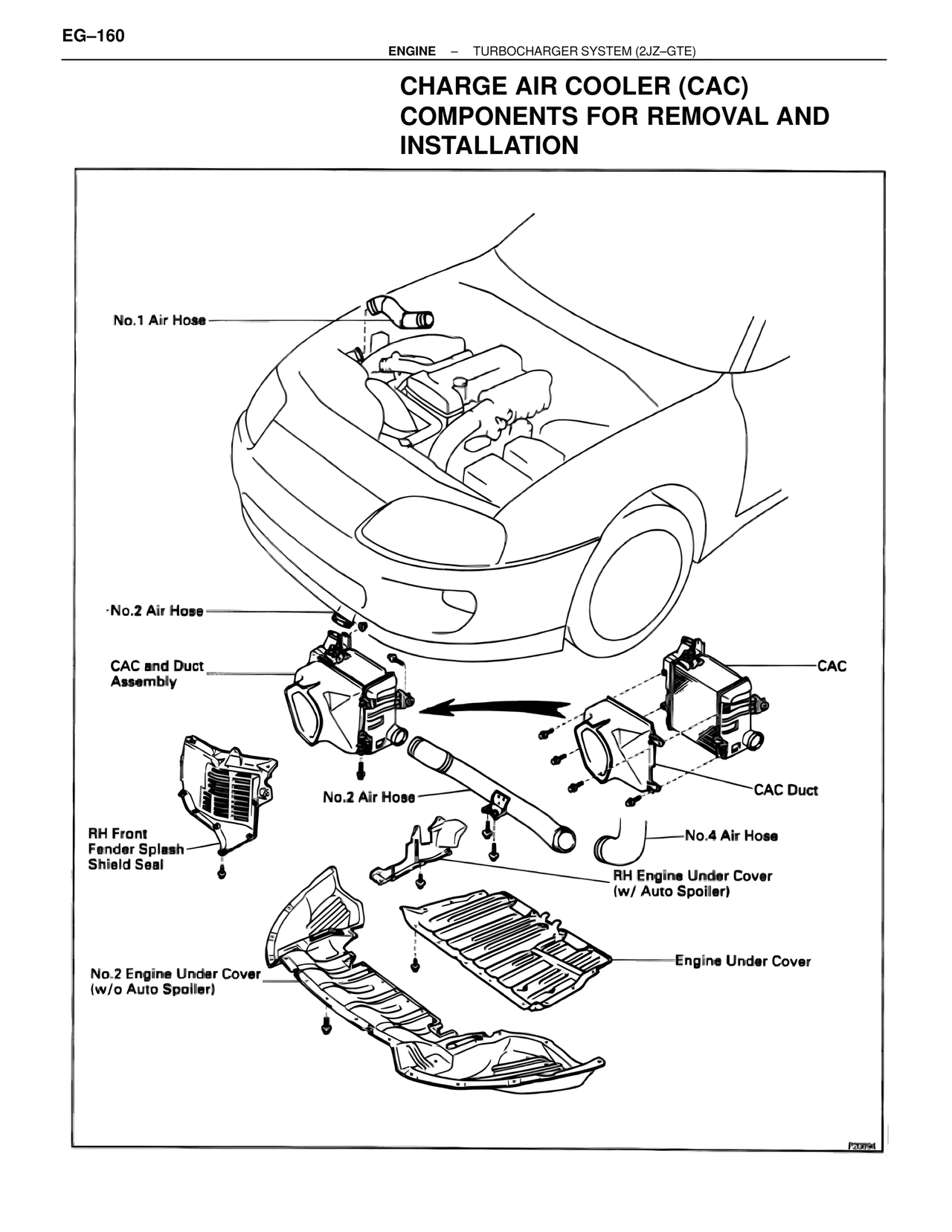

COMPONENTS FOR REMOVAL AND
INSTALLATION

No.1 Air Hose

No.2 Air Hose

CAC and Duct
Assembly

CAC

No.2 Air Hose

CAC Duct

RH Front
Fender Splash
Shield Seal

No.4 Air Hose

RH Engine Under Cover
(w/ Auto Spoiler)

Engine Under Cover

No.2 Engine Under Cover
(w/o Auto Spoiler)

P20094
