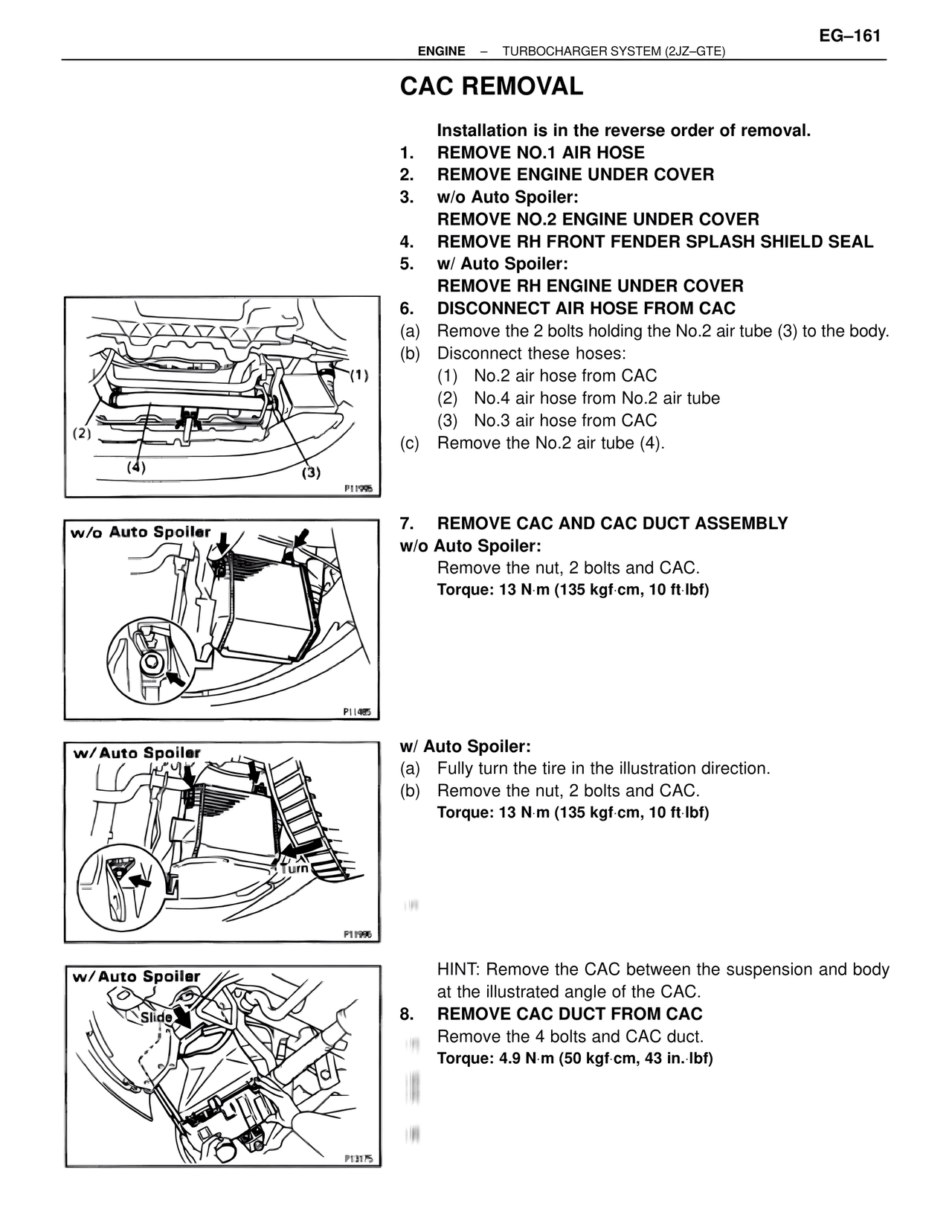

CAC REMOVAL
Installation is in the reverse order of removal.
1. REMOVE NO.1 AIR HOSE
2. REMOVE ENGINE UNDER COVER
3. w/o Auto Spoiler:
REMOVE NO.2 ENGINE UNDER COVER
4. REMOVE RH FRONT FENDER SPLASH SHIELD SEAL
5. w/ Auto Spoiler:
REMOVE RH ENGINE UNDER COVER
6. DISCONNECT AIR HOSE FROM CAC
(a) Remove the 2 bolts holding the No.2 air tube (3) to the body.
(b) Disconnect these hoses:
(1) No.2 air hose from CAC
(2) No.4 air hose from No.2 air tube
(3) No.3 air hose from CAC
(c) Remove the No.2 air tube (4).
(1)
(2)
(4)
(3)
P11995
w/o Auto Spoiler
P11495
7. REMOVE CAC AND CAC DUCT ASSEMBLY
w/o Auto Spoiler:
Remove the nut, 2 bolts and CAC.
Torque: 13 N·m (135 kgf·cm, 10 ft·lbf)
w/ Auto Spoiler
Turn
P11996
w/ Auto Spoiler:
(a) Fully turn the tire in the illustration direction.
(b) Remove the nut, 2 bolts and CAC.
Torque: 13 N·m (135 kgf·cm, 10 ft·lbf)
w/ Auto Spoiler
Slide
P13175
HINT: Remove the CAC between the suspension and body at the illustrated angle of the CAC.
8. REMOVE CAC DUCT FROM CAC
Remove the 4 bolts and CAC duct.
Torque: 4.9 N·m (50 kgf·cm, 43 in.·lbf)
