EG–148

ENGINE – TURBOCHARGER SYSTEM (2JZ–GTE)

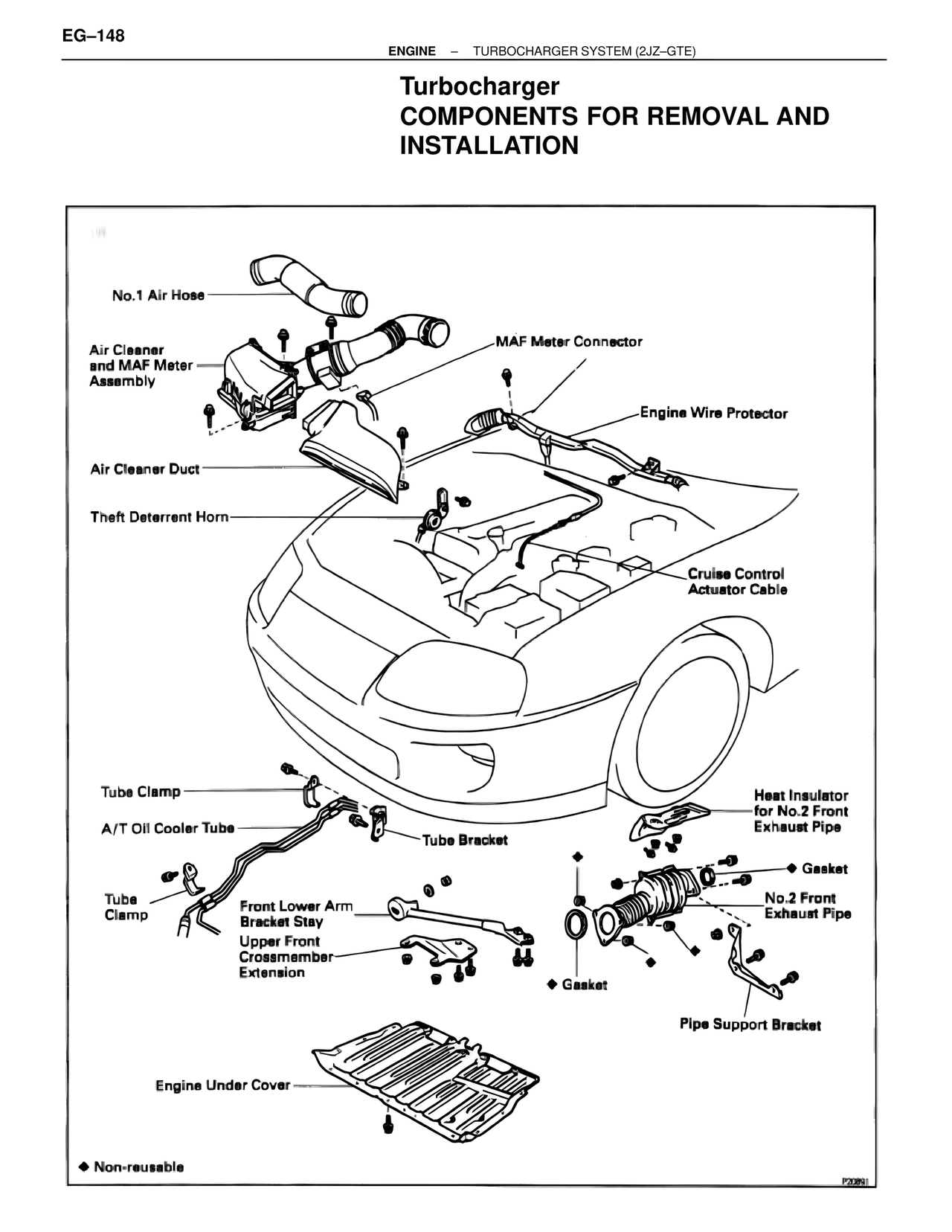

Turbocharger
COMPONENTS FOR REMOVAL AND
INSTALLATION

No.1 Air Hose

Air Cleaner
and MAF Meter
Assembly

MAF Meter Connector

Engine Wire Protector

Air Cleaner Duct

Theft Deterrent Horn

Cruise Control
Actuator Cable

Tube Clamp

Heat Insulator
for No.2 Front
Exhaust Pipe

A/T Oil Cooler Tube

Tube Bracket

♦ Gasket

No.2 Front
Exhaust Pipe

Tube
Clamp

Front Lower Arm
Bracket Stay

Upper Front
Crossmember
Extension

♦ Gasket

Pipe Support Bracket

Engine Under Cover

♦ Non-reusable

P20191
