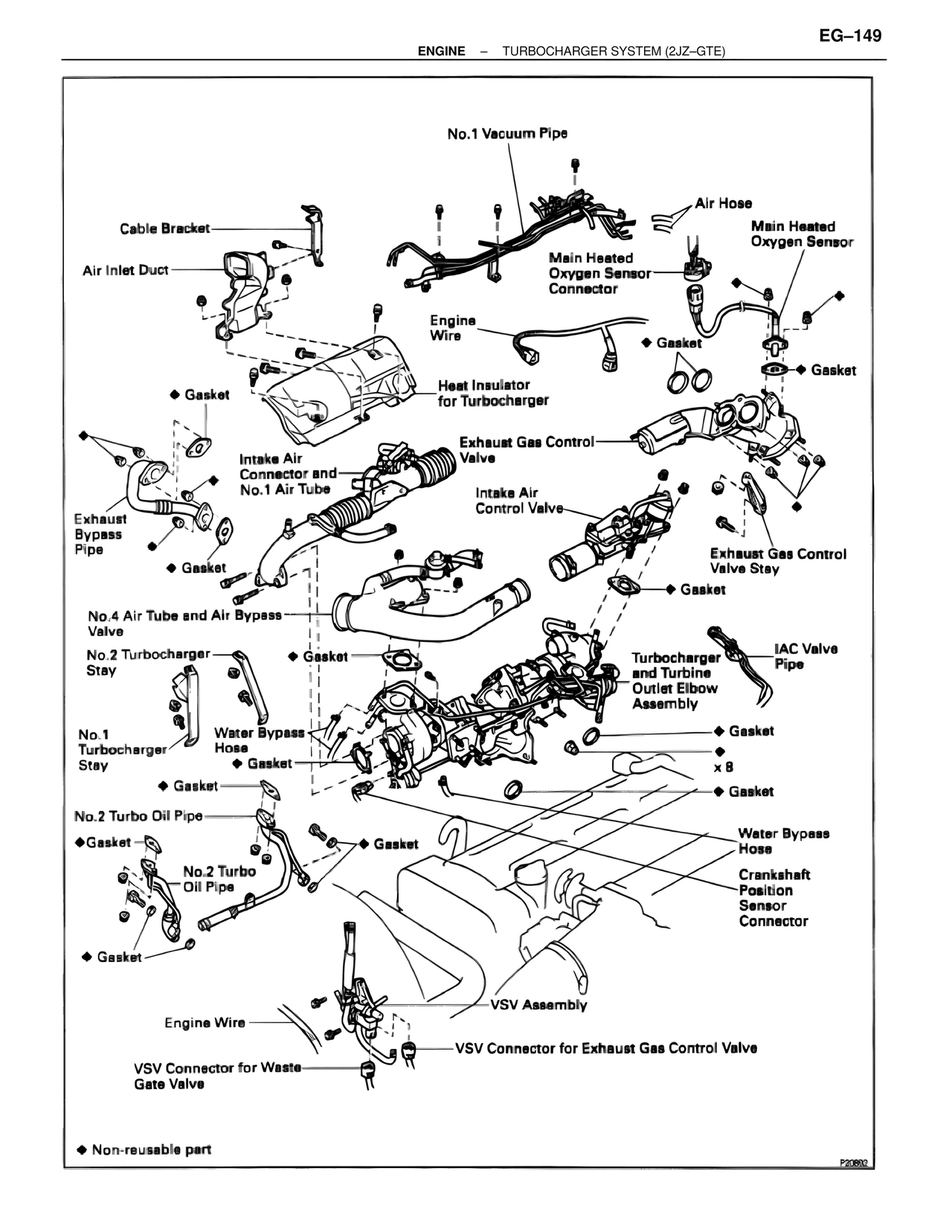

ENGINE — TURBOCHARGER SYSTEM (2JZ-GTE)
No.1 Vacuum Pipe
Cable Bracket
Air Hose
Main Heated
Oxygen Sensor
Air Inlet Duct
Main Heated
Oxygen Sensor
Connector
Engine
Wire
♦ Gasket
♦ Gasket
♦ Gasket
Heat Insulator
for Turbocharger
Exhaust Gas Control
Valve
Intake Air
Connector and
No.1 Air Tube
Intake Air
Control Valve
Exhaust
Bypass
Pipe
♦ Gasket
Exhaust Gas Control
Valve Stay
♦ Gasket
No.4 Air Tube and Air Bypass
Valve
No.2 Turbocharger
Stay
♦ Gasket
Turbocharger
and Turbine
Outlet Elbow
Assembly
IAC Valve
Pipe
No.1
Turbocharger
Stay
Water Bypass
Hose
♦ Gasket
♦ Gasket
x 8
♦ Gasket
No.2 Turbo Oil Pipe
♦Gasket
♦ Gasket
Water Bypass
Hose
No.2 Turbo
Oil Pipe
Crankshaft
Position
Sensor
Connector
♦ Gasket
VSV Assembly
Engine Wire
VSV Connector for Exhaust Gas Control Valve
VSV Connector for Waste
Gate Valve
♦ Non-reusable part
