EG–382
ENGINE – 2JZ-GE ENGINE TROUBLESHOOTING

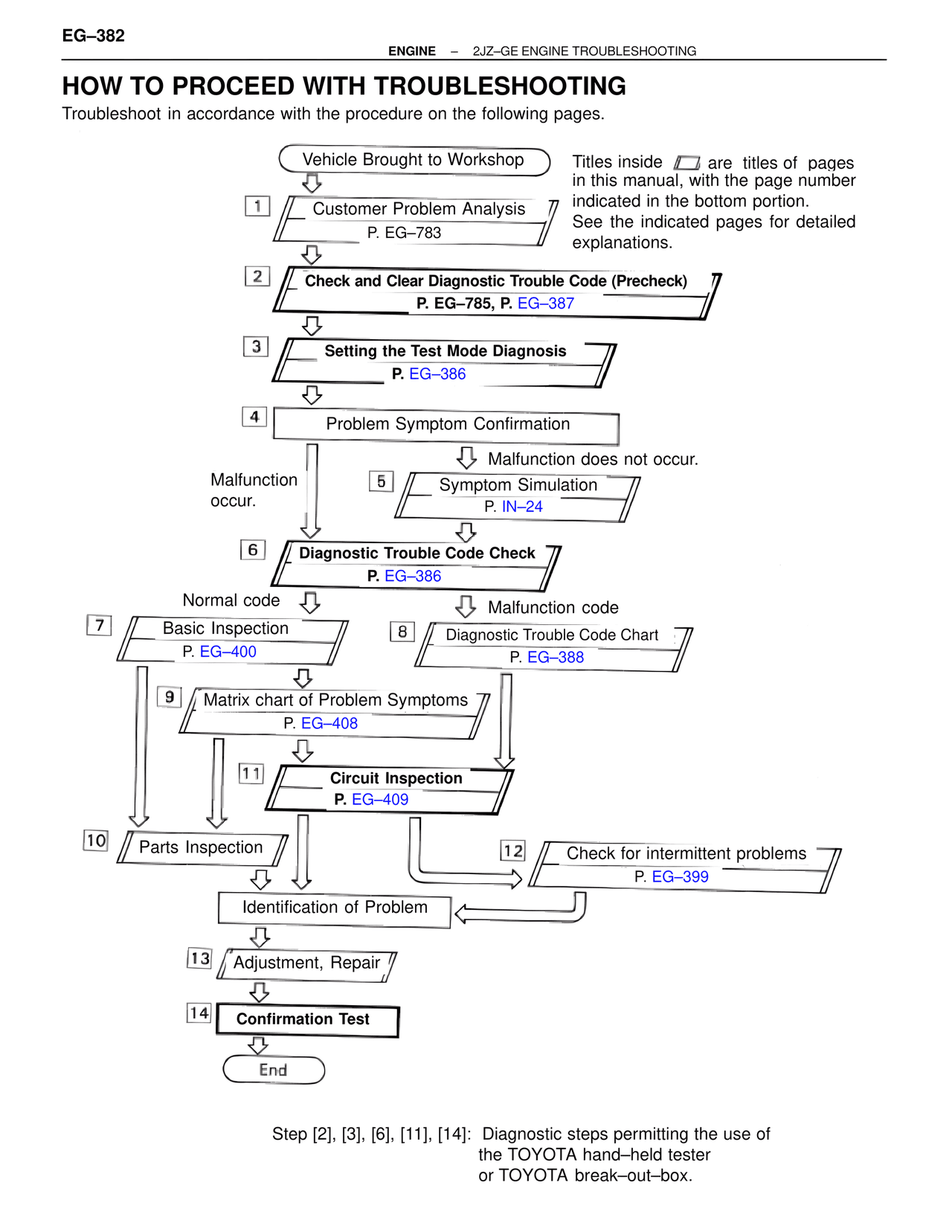

HOW TO PROCEED WITH TROUBLESHOOTING
Troubleshoot in accordance with the procedure on the following pages.
Vehicle Brought to Workshop
Titles inside □ are titles of pages in this manual, with the page number indicated in the bottom portion. See the indicated pages for detailed explanations.
1 Customer Problem Analysis
P. EG–783
2 Check and Clear Diagnostic Trouble Code (Precheck)
P. EG–785, P. EG–387
3 Setting the Test Mode Diagnosis
P. EG–386
4 Problem Symptom Confirmation
Malfunction does not occur.
Malfunction occur.
5 Symptom Simulation
P. IN–24
6 Diagnostic Trouble Code Check
P. EG–386
Normal code
Malfunction code
7 Basic Inspection
P. EG–400
8 Diagnostic Trouble Code Chart
P. EG–388
9 Matrix chart of Problem Symptoms
P. EG–408
11 Circuit Inspection
P. EG–409
10 Parts Inspection
12 Check for intermittent problems
P. EG–399
Identification of Problem
13 Adjustment, Repair
14 Confirmation Test
End
Step [2], [3], [6], [11], [14]: Diagnostic steps permitting the use of the TOYOTA hand–held tester or TOYOTA break–out–box.
