EG-383
ENGINE – 2JZ-GE ENGINE TROUBLESHOOTING

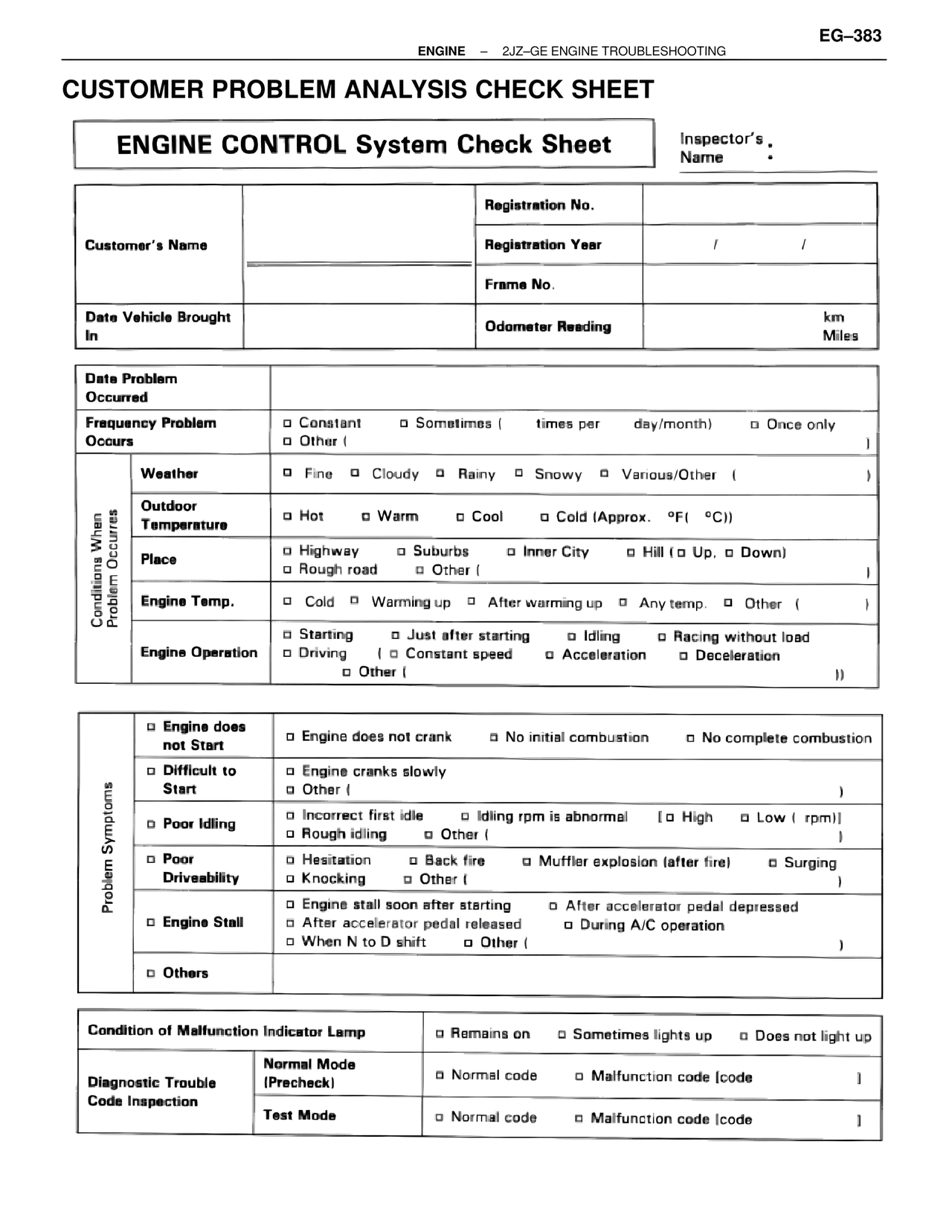

CUSTOMER PROBLEM ANALYSIS CHECK SHEET
ENGINE CONTROL System Check Sheet
Inspector's Name •
Customer's Name
Registration No.
Registration Year / /
Frame No.
Date Vehicle Brought In
Odometer Reading km
Miles
Date Problem Occurred
Frequency Problem Occurs
□ Constant □ Sometimes ( times per day/month) □ Once only
□ Other ( )
Conditions When Problem Occurs
Weather
□ Fine □ Cloudy □ Rainy □ Snowy □ Various/Other ( )
Outdoor Temperature
□ Hot □ Warm □ Cool □ Cold (Approx. °F( °C))
Place
□ Highway □ Suburbs □ Inner City □ Hill (□ Up, □ Down)
□ Rough road □ Other ( )
Engine Temp.
□ Cold □ Warming up □ After warming up □ Any temp. □ Other ( )
Engine Operation
□ Starting □ Just after starting □ Idling □ Racing without load
□ Driving ( □ Constant speed □ Acceleration □ Deceleration
□ Other ( ))
Problem Symptoms
□ Engine does not Start
□ Engine does not crank □ No initial combustion □ No complete combustion
□ Difficult to Start
□ Engine cranks slowly
□ Other ( )
□ Poor Idling
□ Incorrect first idle □ Idling rpm is abnormal [□ High □ Low ( rpm)]
□ Rough idling □ Other ( )
□ Poor Driveability
□ Hesitation □ Back fire □ Muffler explosion (after fire) □ Surging
□ Knocking □ Other ( )
□ Engine Stall
□ Engine stall soon after starting □ After accelerator pedal depressed
□ After accelerator pedal released □ During A/C operation
□ When N to D shift □ Other ( )
□ Others
Condition of Malfunction Indicator Lamp
□ Remains on □ Sometimes lights up □ Does not light up
Diagnostic Trouble Code Inspection
Normal Mode (Precheck)
□ Normal code □ Malfunction code [code ]
Test Mode
□ Normal code □ Malfunction code [code ]
