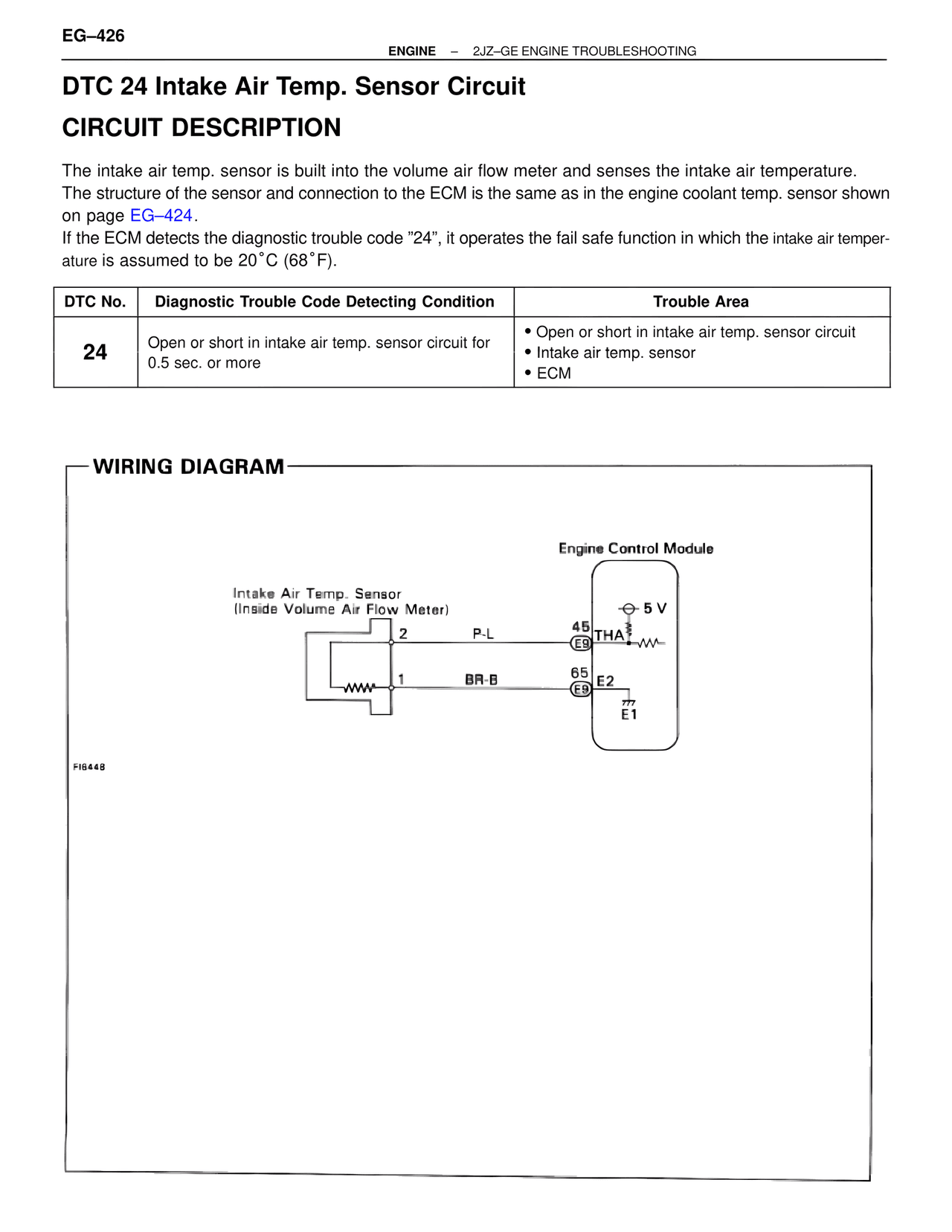

EG–426
ENGINE – 2JZ–GE ENGINE TROUBLESHOOTING
DTC 24 Intake Air Temp. Sensor Circuit
CIRCUIT DESCRIPTION
The intake air temp. sensor is built into the volume air flow meter and senses the intake air temperature.
The structure of the sensor and connection to the ECM is the same as in the engine coolant temp. sensor shown
on page EG–424.
If the ECM detects the diagnostic trouble code "24", it operates the fail safe function in which the intake air temperature is assumed to be 20°C (68°F).
DTC No. | Diagnostic Trouble Code Detecting Condition | Trouble Area
24 | Open or short in intake air temp. sensor circuit for 0.5 sec. or more | • Open or short in intake air temp. sensor circuit
• Intake air temp. sensor
• ECM
WIRING DIAGRAM
Intake Air Temp. Sensor
(Inside Volume Air Flow Meter)
2 P-L 45 THA
(E9)
1 BR-B 65 E2
(E9)
E1
Engine Control Module
⊕ 5 V
FI6448
